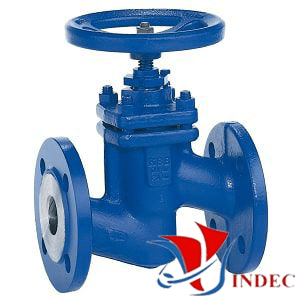

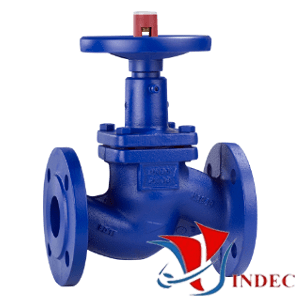

KSB BOA-H PN25/PN40

KSB BOA-H PN16/PN25

KSB VALVES

KSB Valves

- KSB is a technology and quality leader in the global pumps and valves market as well as for related services. As a global organisation, KSB’s Procurement constantly strives to optimise its procurement network.

- Each year KSB manufactures almost a million valves. The range of valves on offer caters for numerous applications and is a perfect addition to KSB's comprehensive pump range. As well as manufacturing at its European locations, pump and valve producer KSB also operates plants in Asia and the Americas. This production network ensures that local customer support is always on hand when required. All products comply with the latest safety regulations and operate with excellent energy efficiency.

- Technology - Technological leadership and continuous innovation

- Quality - Excellent product quality

- Cost & cash - Competitive prices and continuous cost optimisation / value engineering

- Delivery - Reliable and flexible delivery performance

- Service & sustainability - Customer focus as well as social and ecological sustainability (CSR)

Technical KSB Valves

- Types KSB valves: Ksb globe valve, Ksb ball valves, Ksb gate valve, Ksb butterfly valves, Ksb check valves, Ksb strainer, Ksb control valves...

- Materials of Ksb valves: Cast iron, Ductile iron, Cast steel, Stainless steel...

- Disc of Ksb valves:Cast steel, Stainless steel...

- Stem of Ksb valves:Cast steel, Stainless steel...

- Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, PN160

- Temperature range: up to 450 độ C

- Connections of Ksb valves: threaded ends, Flanged ends, Welding end...

- Size of Ksb valves: DN25, DN32, DN40, DN15, DN20, DN50, DN100, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350

- Origin: KSB germany

Types of KSB Valves

Ksb globe valve, Ksb ball valves, Ksb gate valve, Ksb butterfly valves, Ksb check valves, Ksb strainer, Ksb control valves...

Types of KSB Valves

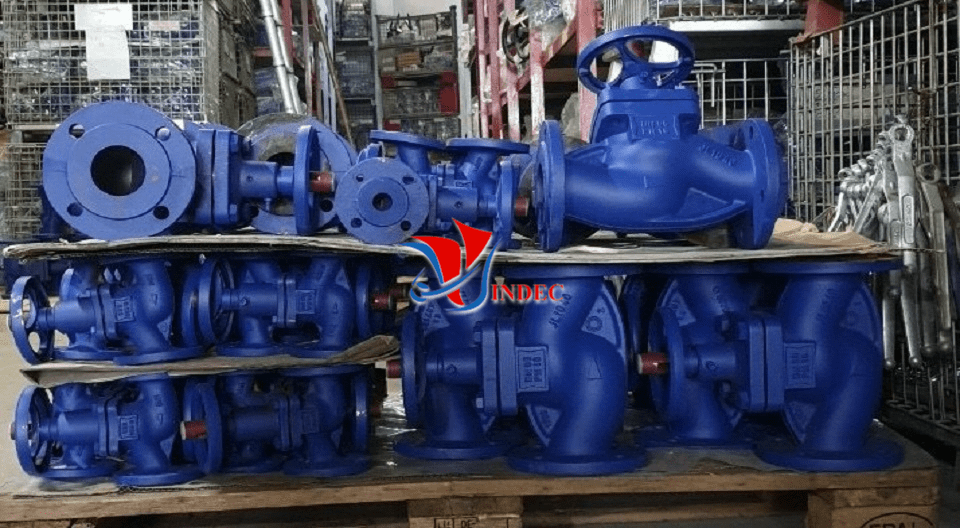

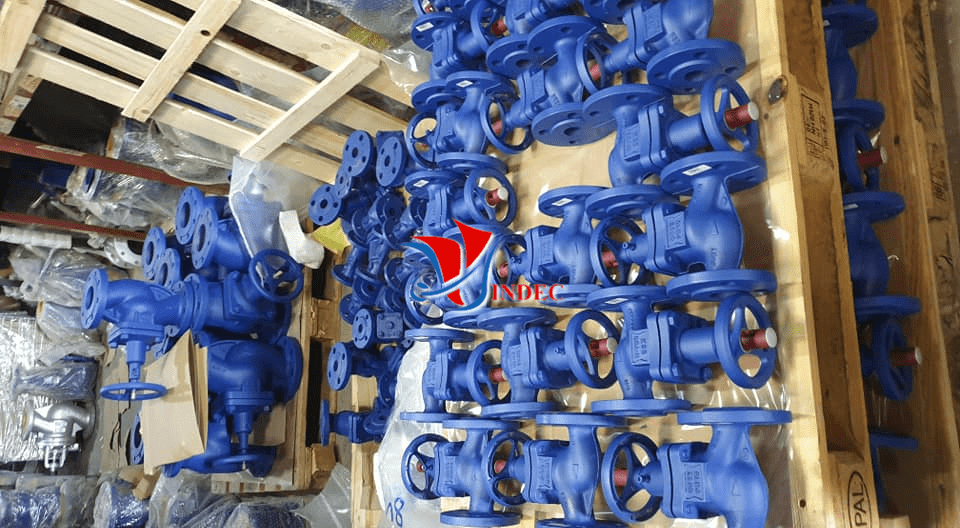

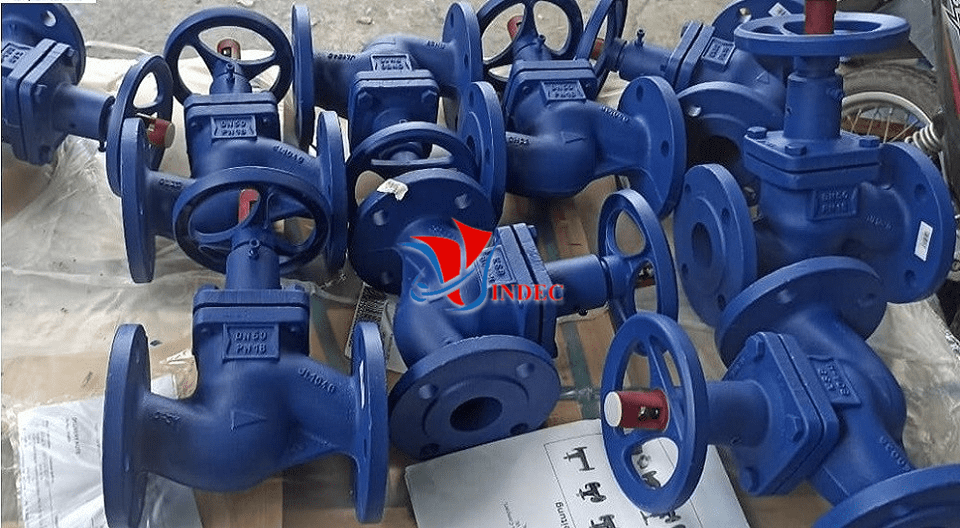

KSB Globe Valve

KSB GLOBE VALVES

KSB Globe Valves

- KSB Globe valve to DIN/EN with flanged ends, threaded ends and welding end as: short face-to-face length to EN 558/14, compact face-to-face, on/off disc or throttling plug, butt weld ends or socket weld ends, ANSI/ASME with flanged ends, ANSI/ASME with threaded sockets, butt weld or socket weld ends...

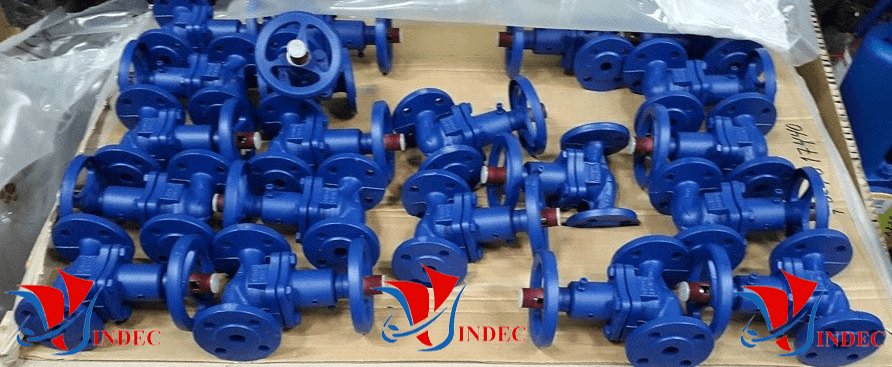

- KSB Globe valve with mame of Vietnamese is Van Cầu KS or Van Hơi KSB

Technical KSB Valves

- Types valves: Ksb gland packing globe valve, Ksb bellow seal globe valve, Ksb Y-style globe valve

- Materials of Ksb globe valve: Cast iron, Ductile iron, Cast steel, Stainless steel, cast steel A351 CF8/CF8M, forged steel A105

- Disc of Ksb globe valve: Stainless steel...

- Stem of Ksb globe valve:Stainless steel...

- Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, PN160

- Temperature range: up to 450 độ C

- Connections of Ksb globe valve: threaded ends, Flanged ends, Welding end...

- Size of Ksb globe valve: DN25, DN32, DN40, DN15, DN20, DN50, DN100, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350

- Origin: KSB germany

Types of KSB Valves

Ksb gland packing globe valve, Ksb bellow seal globe valve, Ksb Y-style globe valve

KSB Globe Valve DIN/EN Flanged End

KSB Globe Valve ANSI/ASME Flanged End



KSB Globe Valve ANSI/ASME Threaded End



KSB Globe Valve ANSI/ASME Butt Weld End



KSB Globe Valve ANSI/ASME Socket Weld End



Applications of KSB Valve

- Water : From extraction and transport right through to treatment, KSB offers pumps, valves and services for water and waste water applications.

- General industry : Almost no industrial process would be possible without pumps and valves. We accompany our industrial customers from the initial planning stage through to operation and the end of the life cycle of our products.

- Building services : Whether in water supply or drainage, air conditioning or fire protection, KSB pumps and valves are employed in all types of buildings, such as offices, residential houses, hospitals or swimming pools.

- Petrochemicals and chemicals : High temperatures and pressures, flammable fluids – chemical pumps and valves have to withstand extreme conditions. By providing innovative designs and comprehensive service, KSB ensures reliable production.

- Energy : No matter whether the energy comes from the sun, wind, fossil fuels, geothermal heat or nuclear power - KSB offers efficient, safe and reliable solutions for power generating companies around the globe.

- Mining : Minerals are the raw material used as the basis for many products used in our daily life. KSB’s line of GIW® pumps are used to move slurry, a mixture of mined material suspended in water, across long distances or within a processing plant.

KSB Ball Valve

KSB Gate Valve

KSB Butterfly Valve

KSB Check Valves

- KSB check valves including: Lift check valve to DIN/EN with flanged ends / threaded ends, butt weld or socket weld ends and Swing check valve to DIN/EN with flanged ends / threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW), wafer-type...

Technical KSB Check Valve

- Types of Ksb check valve: KSB Lift check valve and KSB Swing check valve

- Materials of Ksb check valve: Cast iron, Ductile iron, Cast steel, Stainless steel, cast steel A351 CF8/CF8M, forged steel A105

- Disc of Ksb check valve: Stainless steel...

- Stem of Ksb check valve:Stainless steel...

- Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, PN160

- Temperature range: up to 450 độ C

- Connections of Ksb check valve: threaded ends, Flanged ends, Welding end...

- Size of Ksb check valve: DN25, DN32, DN40, DN15, DN20, DN50, DN100, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350

- Origin: KSB germany

Types of KSB CHECK Valves

KSB Lift check valve and KSB Swing check valve

KSB Lift Check Valve

- KSB BOA-R : Lift check valve to DIN/EN with flanged ends, spring-loaded valve disc, maintenance-free.

- KSB BOA-RFV : Nozzle check valve to DIN/EN with flanged ends, Venturi-type body, max. flow velocity 2.5 m/s, Body made of cast iron

- KSB BOA-RPL : Ball check valve to DIN/EN with flanged or female/female-threaded ends, made of nodular cast iron

- KSB BOA-RVK : Lift check valve to DIN/EN with wafer-type body, centring aided by the body shape, shut-off by spring-loaded plate or valve disc guided by three stainless steel guiding pins.

- KSB BOACHEM-RXA : Lift check valve to DIN/EN with flanged ends, body made of stainless steel, check disc with closing spring, lapped seat/disc interface.

- KSB ECOLINE PTF 150-600 : Lift check valve to ANSI/ASME with flanged ends, forged steel A105.

- KSB ECOLINE PTF 800 : Lift check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW).

- KSB NORI 160 RXL/RXS : Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS).

- KSB NORI 40 RXL/RXS : Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS).

- KSB NUCA 320/-A 320/-ES type V : Lift check valve for nuclear applications, with butt weld ends.

- KSB RGS : Lift check valve to DIN/EN with butt weld or socket weld ends, Y-pattern, check disc with closing spring.

- KSB RXN/RYN : Combined lift check/shut-off valve with butt weld ends, for nuclear applications, Y-pattern.

KSB Swing Check Valve

- KSB AKR/AKRS : Swing check valve to DIN/EN with flanged ends (AKR) or butt weld ends (AKRS)

- KSB COBRA-TDC01/03 : Tilting disc check valve to DIN/EN with flanged ends

- KSB ECOLINE SCC 150-600 : Swing check valve to ANSI/ASME with flanged ends, cast steel A216 WCB

- KSB ECOLINE SCF 150-600 : Swing check valve to ANSI/ASME with flanged ends, forged steel A105

- KSB ECOLINE SCF 800 : Swing check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW)

- KSB SERIE 2000 : Dual-plate check valve with single-piece, wafer-type body made of lamellar graphite cast iron, nodular cast iron, steel or stainless steel

- KSB SICCA 150-600 SCC : Swing check valve to ANSI/ASME with flanged or butt weld ends

- KSB SICCA 900-3600 SCC : Swing check valve to ANSI/ASME with butt weld ends or flanged ends (on request)

- KSB SISTO-RSK : Swing check valve to DIN/EN with flanged ends, in straight-way pattern

- KSB SISTO-RSKNA : Swing check valve with flanged ends, body with or without lining, soft-seated

- KSB SISTO-RSKS : Swing check valve to DIN/EN with flanged ends, short face-to-face length

- KSB STAAL 100 AKK/AKKS : Swing check valve to DIN/EN with flanged ends (AKK) or butt weld ends (AKKS)

- KSB STAAL 40 AKK/AKKS : Swing check valve to DIN/EN with flanged ends (AKK) or butt weld ends (AKKS)

- KSB ZRN : Swing check valve for nuclear applications, with butt weld ends

- KSB ZRS : Swing check valve to DIN/EN with butt weld ends, pressure seal design

Applications of KSB Check Valve

- Water : From extraction and transport right through to treatment, KSB offers pumps, valves and services for water and waste water applications.

- General industry : Almost no industrial process would be possible without pumps and valves. We accompany our industrial customers from the initial planning stage through to operation and the end of the life cycle of our products.

- Building services : Whether in water supply or drainage, air conditioning or fire protection, KSB pumps and valves are employed in all types of buildings, such as offices, residential houses, hospitals or swimming pools.

- Petrochemicals and chemicals : High temperatures and pressures, flammable fluids – chemical pumps and valves have to withstand extreme conditions. By providing innovative designs and comprehensive service, KSB ensures reliable production.

- Energy : No matter whether the energy comes from the sun, wind, fossil fuels, geothermal heat or nuclear power - KSB offers efficient, safe and reliable solutions for power generating companies around the globe.

- Mining : Minerals are the raw material used as the basis for many products used in our daily life. KSB’s line of GIW® pumps are used to move slurry, a mixture of mined material suspended in water, across long distances or within a processing plant.

KSB Strainer

KSB Strainers

- KSB Strainer to DIN/EN with flanged ends, KSB Strainer to ANSI/ASME with threaded sockets (NPT) or socket weld ends (SW) and KSB Strainer to DIN/EN with flanged ends (FSL) or butt weld ends (FSS).

____________________________________

Technical KSB Strainer

- Body: Nodular cast iron (EN-GJL-250 (5.1301)), Stainless steel, Cast steel A216 WCB, Forged steel A105,

- Cover: Nodular cast iron EN-GJL-250 (5.1301), Cast steel, stainless steel

- Strainer: X 5 CrNi 18 10 (1.4301), stainless steel 304/316

- Connection ends: DIN/EN, ANSI/ASME Flanged ends, Butt / Socket weld ends,  Threaded sockets (NPT)

- Pressure range: 16 bar up to 160 bar

- Temperarure range: 450 °C

- Size: DN15 - DN400

- Origin: KSB Germany

____________________________________

Types of KSB Strainer

KSB Y Strainer BOA-S, KSB Y Strainer BOACHEM-FSA, KSB Y Strainer ECOLINE FYC 150-600, KSB Y Strainer ECOLINE FYF 800, KSB Y Strainer NORI 40 FSL/FSS

KSB Strainer BOA-S

- KSB Strainer BOA-S is strainer to DIN/EN with flanged ends, with standard or fine screen; all nominal sizes with drain plug in the cover. Made of grey cast iron or nodular cast iron.

KSB Y Strainer BOACHEM-FSA

- KSB Y Strainer BOACHEM-FSA is strainer to DIN/EN with flanged ends, body made of stainless steel, with standard or fine screen; all nominal sizes with drain plug in the cover.

KSB Y Strainer ECOLINE FYC 150-600

- KSB Y Strainer ECOLINE FYC 150-600 is strainer to ANSI/ASME with flanged ends, Y-pattern, bolted cover, cast steel A216 WCB, screen made of stainless steel 304, mesh width 1.5 mm.

KSB Y Strainer ECOLINE FYF 800

- KSB Y Strainer ECOLINE FYF 800 is Strainer to ANSI/ASME with threaded sockets (NPT) or socket weld ends (SW), Y-pattern, with bolted cover, forged steel A105, screen made of stainless steel 304. Mesh width 0.8 to 0.9 mm.

KSB Y Strainer NORI 40 FSL/FSS

- KSB Y Strainer NORI 40 FSL/FSS is Strainer to DIN/EN with flanged ends (FSL) or butt weld ends (FSS), made of cast steel, with standard or fine screen; all nominal sizes with drain plug in the cover, optional magnetic insert.

____________________________________

Applications of KSB Y Strainer

- Water : From extraction and transport right through to treatment, KSB offers pumps, valves and services for water and waste water applications.

- General industry : Almost no industrial process would be possible without pumps and valves. We accompany our industrial customers from the initial planning stage through to operation and the end of the life cycle of our products.

- Building services : Whether in water supply or drainage, air conditioning or fire protection, KSB pumps and valves are employed in all types of buildings, such as offices, residential houses, hospitals or swimming pools.

- Petrochemicals and chemicals : High temperatures and pressures, flammable fluids – chemical pumps and valves have to withstand extreme conditions. By providing innovative designs and comprehensive service, KSB ensures reliable production.

- Energy : No matter whether the energy comes from the sun, wind, fossil fuels, geothermal heat or nuclear power - KSB offers efficient, safe and reliable solutions for power generating companies around the globe.

- Mining : Minerals are the raw material used as the basis for many products used in our daily life. KSB’s line of GIW® pumps are used to move slurry, a mixture of mined material suspended in water, across long distances or within a processing plant.

KSB Control Valve

Advantages of KSB Valve

Disadvantages of KSB Valve

Applications of KSB Valve

- Water : From extraction and transport right through to treatment, KSB offers pumps, valves and services for water and waste water applications.

- General industry : Almost no industrial process would be possible without pumps and valves. We accompany our industrial customers from the initial planning stage through to operation and the end of the life cycle of our products.

- Building services : Whether in water supply or drainage, air conditioning or fire protection, KSB pumps and valves are employed in all types of buildings, such as offices, residential houses, hospitals or swimming pools.

- Petrochemicals and chemicals : High temperatures and pressures, flammable fluids – chemical pumps and valves have to withstand extreme conditions. By providing innovative designs and comprehensive service, KSB ensures reliable production.

- Energy : No matter whether the energy comes from the sun, wind, fossil fuels, geothermal heat or nuclear power – KSB offers efficient, safe and reliable solutions for power generating companies around the globe.

- Mining : Minerals are the raw material used as the basis for many products used in our daily life. KSB’s line of GIW® pumps are used to move slurry, a mixture of mined material suspended in water, across long distances or within a processing plant.
