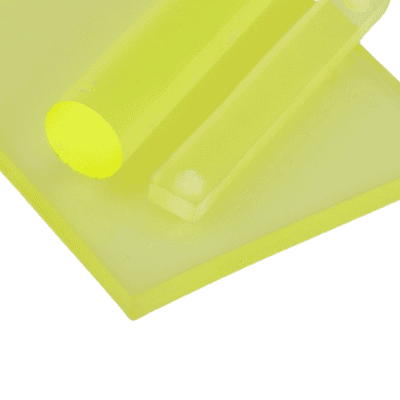

What is PU Plastis?
PU plastic is Polyurethane (PUR/PU), it is a polymer composed of organic units joined by carbamate (urethane) links. Polyurethane polymers are traditionally and most commonly formed by reacting a di- or polyisocyanate with a polyol. Both the isocyanates and polyols used to make polyurethanes contain, on average, two or more functional groups per molecule. Casting Polyurethane PU Sheets and PU Rods.
While most polyurethanes are thermosetting polymers that do not melt when heated, thermoplastic polyurethanes are also available.
Technical PU Plastis
Materials: Polyurethane
Density: 1,15 g /cm³
Colour: Natural, Yellow, Red, Blue...
- Certificate: SGS / TUV / ISO: 2015
- Hardness: 90A
PU Sheet: Width (1m) x Length (2m) x Thickness (1mm - 100mm)
PU Rod: 2mm, 3mm, 4mm up 100mm
Origin: China, India, Korea, Japan
How Many Types of Polyurethanes?
Polyester PU Plastis
Density: 1,2g/cm³
Hardness: 88-92A
Mô đun kéo 300%: 150-170
Tensile Strength: 520 kgf/cm2
Extensibility: 600%
Tensile Strength: 140kn/m
Recovery: 30%
Compression Deformation: 30%
Akron Wear Loss: 0.08±2
Has high mechanical properties and good oil resistance, but low water resistance.
Polyether PU Plastis
Density: 1,15g/cm³
Hardness: 88-92A
Mô đun kéo 300% : 80-100
Tensile Strength: 200 kgf/cm2
Extensibility: 400%
Tensile Strength: 80kn/m
Recovery: 28%
Compression Deformation: 45%
Akron Wear Loss: 0,6±2
It has better temperature and hydrolysis resistance than Polyester PU, but its oil resistance and mechanical properties are slightly poor.
Different Type PU Plastis
PU Sheet, PU Rod, Tube PU Plastic & Piping PU Plastic

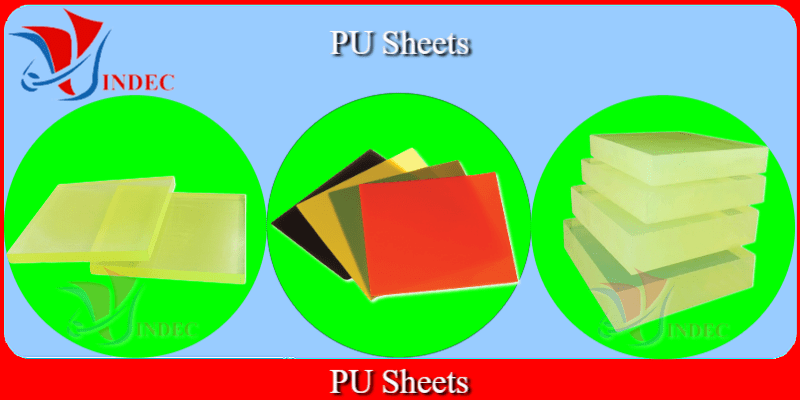

PU Sheet Plastic
PU Sheet is with excellent in anti-abrasion and high elasticity. There are different thickness and size. Their mainly function is to reduce pressure. Pu Sheet is widely used as Cushion, Anti-Pressing and Heavy Load parts.
PU Sheet: T 1mm upto 100mm x W 610mm, 1000mm, 1220mm

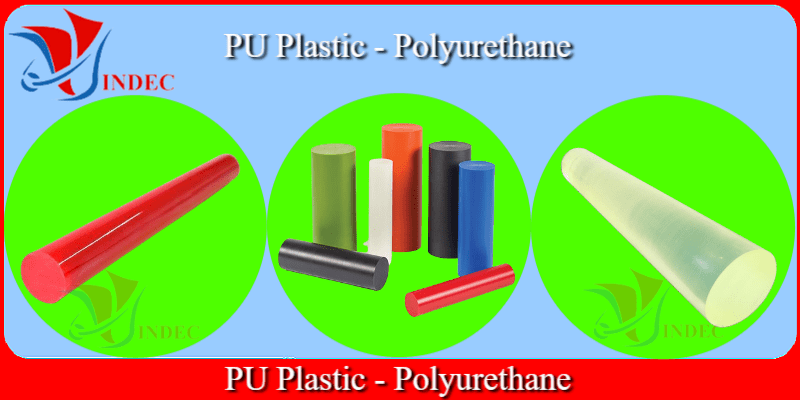

PU Rod Plastic
PU Rod : Dia 5mm upto 200mm x L 1000mm, 2000mm, 3000mm

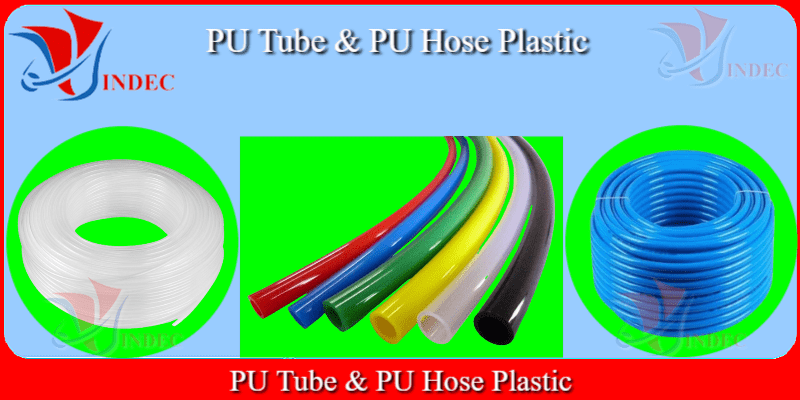

PU Tube & PU Piping Plastic
PU Tube & PU Piping Plastic is available in inner diameters from 2–50 mm and standard lengths up to 100 m rolls, offering excellent flexibility, abrasion resistance, and efficient fluid transfer for pneumatic and industrial piping systems.

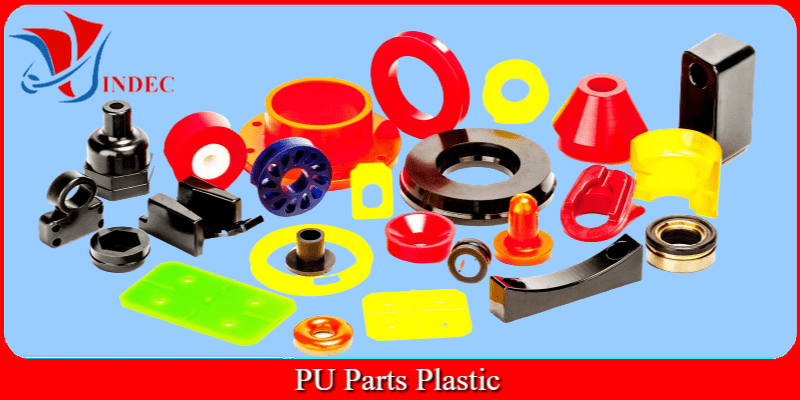

PU Parts Plastic
Precision Urethane has manufactured countless urethane parts and products used in many industries worldwide. According to Customer Requirements.
Key Features of PU Plastic
Excellent abrasion resistance
High load bearing capacity
More durable than conventional elastomers
Width range of physical properties
High impact resistance
Low unlubricated coefficient of friction
Tear resistant, Resistance to ageing, Deformation resistance
High shear strength, High elasticity
Good water resistance, High resistance to sunlight and weather conditions, Oil and solvent resistant
Resists cracking under repeated flexure
Ramains flexible at very low temperatures, Outstanding low-temperature performance
Excellent mechanical properties, combined with a rubber-like elasticity
Excellent vibration abatement properties
Excellent noise abatement properties
Applications of PU Plastic
Conveyor drive and idle rollers
Hydraulic and pneumatic seals
Bearing pads,rollers,gear wheels,bushes
Conveyor belt scraping blades
Printing rollers
Cyclone nozzles
Markets and Applications: Major markets for cast polyurethane shapes include: automotive, aerospace, electronics, defense, power presses/dies, mining, paperboard, material handling, metal finishing, pulp and paper, oil and gas, automated filling plants and railroad.
Some typical applications include: Arc shield in railroad cars, replacing fiberglass parts which exhibited frequent and premature breakage resulting in excessive maintenance costs.
Gaskets and seals, replacing synthetic rubbers when a combination of chemical resistance and outstanding toughness are required for specialty applications. Custom seals can generally be made using relatively low cost tooling.
Cutter bars in paperboard plants, replacing UHMW-PE cutter bars which often needed replacing.
Wheels for carts and trolleys in automotive and other manufacturing plant use, replacing rubber. Polyurethane wheels have higher load bearing capacity and roll easier. The figure below shows the spectrum of the wide range of hardness values and a few examples of applications.
