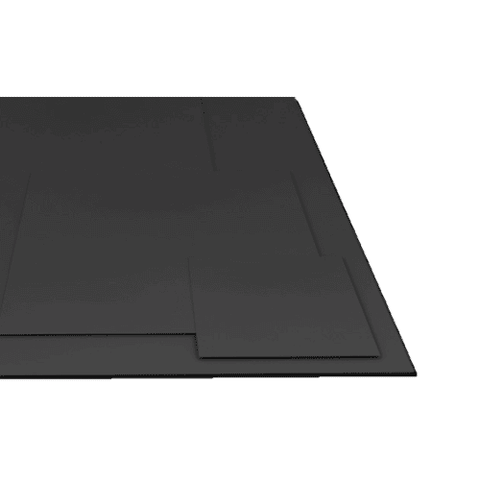

Compressed Inorganic Fiber Gasket Sheet

Compressed Inorganic Fiber Gasket Sheet

Construction: It is a compressed non-asbestos sheet gasket material produced from a combination of inorganic fibres and special fillers, bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO-9001 certification. And can be it is also available with wire reinforcement.

Application: petroleum derivatives, water, saturated team, solvents, gases,  and chemical products ingeneral

Peak temperature: 550 degC

Constant temperature: 430 degC

Peak pressure: 150bar

Constant working pressure: 102bar

Thickness: 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0 / 5.0mm

Sheet size: 1270 x 1270mm; 1.500 x 1.600 mm and 1.500 x 3.200 mm
