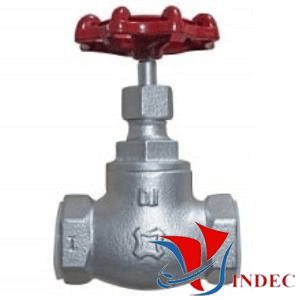

What is A Globe Valves ?

• A globe valve is an instrument used to stop and/or control the flow of fluids in a pipeline. It works by halting the flow of a fluid through a pipe. The name globe comes about due to the valve’s cylindrical shape. There are usually two halves of the body within the globe valve that are separated by an internal baffle.
• Even though globe valves exhibit more pressure drops than gate valves, you can use them where the pressure drop via the valve is a non-controlling factor. Another name for globe valves is throttle valves when they are used for throttling purposes.

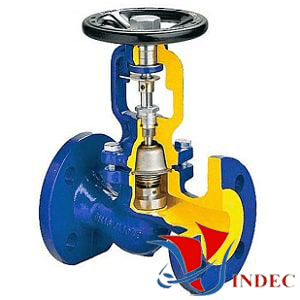

Structure of Globe Valves

• - Body valve: Bronze, brass, cast iron, Ductile iron, cast steel, stainless steel, plastic...
• - Cover valve: Bronze, brass, cast iron, Ductile iron, cast steel, stainless steel, plastic...
• - Stem valve:  stainless steel, cast steel
• - Disc valve: stainless steel 304, 316, 201...
• - Gasket ring: PTFE, Non asbestos gasket, Gioăng cao su ...
• - Handwheel valve: cast iron, Ductile iron, cast steel, stainless steel, plastic

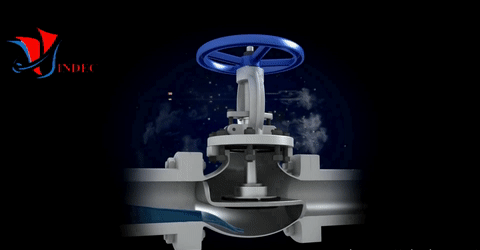

Operations of Globe Valves

Types of Globe Valves

Advantages of Globe Valves

• - It is simple structure, so the valve is easy to install and maintain during use.
• - Globe valves have high durability, less wear, and damage because when the valve is fully opened, the valve disc is isolated from the fluid.
• - The handwheel system directly presses the valve disc and the valve gate in the right direction, so when the valve is completely closed, the globe valve is less likely to leak fluid than other types of valves.
• - Time to open and close the valve quickly, due to the shorter stroke than the gate valve, it is easy to have a convenient valve.
• - Globe valve has the ability to regulate the flow of the flow very well, the ability to open and close the valve.

Disadvantages of Globe Valves

• - Weight and size are usually larger than other valves of the same size and pressure.
• - The pressure when passing the valve is reduced due to flow redirection in the valve body.
• - Relatively high cost compared to other industrial valves.
• - Valves are large in size, requiring a lot of force to open the valve.

Key Features of Globe Valves

Application of Globe Valves

• - Pipeline system of steam, gas, superheated steam...
• - Fuel system such as oil, gasoline
• - Lubricating oil system, hydraulic oil
• - Suitable for locations, machines and systems that are subject to wear
• - Used in reducing the pressure of the flow
• - Used in cooling water, water supply, food, chemical, drainage systems  ...
• - Used in fuel oil system because of flow control
• - Cooling systems, chiller systems where the flow is used to regulate the temperature of the system.

How to Choose Globe Valves

• - Materials of body Globe valves: SS 304, 316, 201, Bronze, Brass, Cast iron, Ductile iron, Cast steel, WCB steel, Forged Steel, Plastic PVC - UPVC - CPVC – PVDF
• - Connections ends:
• + Threaded ends: BS - NPT
• + Welding ends: Socket weld, Butt welding
• + Flanged ends: JIS (5K, 10K, 16K, 20K...), BS (Pn6, PN10, PN16, PN25...), ANSI (Class 150, 300, 600...), DIN (Pn6, PN10, PN16, PN25...)
• - Dimension of Globe valves: DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350…
• - Pressure range: 10kgf/cm2, 16kgf/cm2, 25kgf/cm2, 40kgf/cm2, 64kgf/cm2, 100kgf/cm2
• - Temperature range: Max. 450 độ C
• - Actuator of Globe valve: Handwheel, Electric actuated (110V - 220v - 380v), Pneumatic actuated...
• - Types of Globe valves : Bronze globe valve, brass globe valve, cast iron, SS ball valve, Cast steel ball valve, bellow sealed globe valve...
• - Manufacturers: King gate, Joeun, Arita, Van bi Kitz, Hitachi, Chiu Tong,...
• - Origin: China, India, Japan, Korea, EU, USA, Taiwan, Malaysia...
