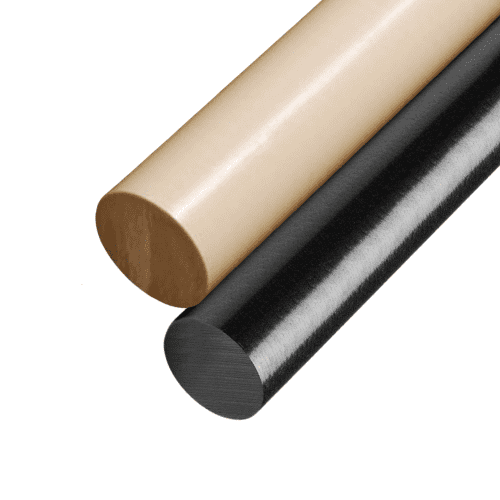

PEEK RODS
PEEK rod is a high performance engineering material widely used across multiple industries due to its exceptional mechanical strength, thermal stability, and chemical resistance. Manufactured from Polyether Ether Ketone (PEEK), this rod material provides an ideal solution for producing precision components that operate reliably in demanding environments.
High Performance Polymer supplies PEEK rods in a broad range of dimensions, with standard lengths of 1000 mm and diameters from 5 mm to 300 mm to meet diverse industrial requirements.
Available grades include:
- PEEK 450G: General purpose grade offering balanced mechanical and thermal properties.
- PEEK GF30: Glass fiber reinforced grade designed to provide increased stiffness and improved structural strength.
To support specialized applications, custom cut-to-size PEEK rods are also available. If a required dimension is not listed, PEEK rods can be manufactured according to exact customer specifications.
TECHNICAL DATA
Name product: PEEK Rod
Density Grade: 1.32 đến 1.6 g /cm3
Colour: Grey, off-White, Milk - White, Nut - brown, Black
Tensile Strength: 81 ~ 130 MPa
Diameter : Ø5 - Ø300
Length standard : 1000mm
Origin: China, India, Korea, Germany, USA...
KEY FEATURES
Outstanding Mechanical Strength: Delivers reliable performance under continuous mechanical loads.
Excellent Heat Resistance: Maintains dimensional stability at elevated operating temperatures.
Superior Chemical Durability: Resistant to many aggressive chemicals and industrial media.
Low Moisture Absorption: Helps preserve precision and structural consistency.
High Wear Resistance: Supports extended service life in demanding applications.
Excellent Machinability: Suitable for manufacturing precision parts with tight tolerances.
APPLICATIONS
Surgical instruments, Instrument holders, Bushes, Metering pistons, Light mountings, Sterilising containers, Dental equipment, Pump housings, Wear strips, Gears.
Medical and food technology, Nuclear and vacuum technology, Precision engineering, Machine and automotive industry, Textile, Packaging and paper processing machinery, Chemical industry, Aircraft and aerospace industries.
