GARLOCK - 9900

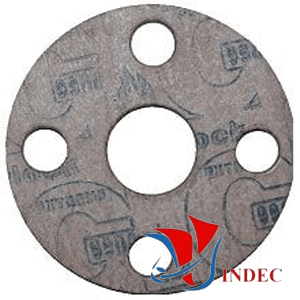

Compressed Non Asbestos Gasket Sheet GARLOCK 9900

Description

- Style GARLOCK 9900 gasket is composed of graphite fibers with a nitrile binder, allowing it to withstand extreme conditions. This high temperature gasket has passed Garlock® fire tests and is ABS Fire Safe Type Approved.

Applications:

- Ideal for standard ANSI flanged connectors, as well as turbine crossover piping connectors

- Power generation

- Chemical processing

- Hydrocarbon processing

- Other industries

Media : Steam, Oil, Grease, Water

Technical Data

- Available in sheet or cut gasket form

- Density: 1.76 g/cm3

- Min. Temperature: -73°C / -100°F

Max. Temperature: 537°C / 1000°F

- Max. Continuous Temp: 343°C / 650°F

- Max. Operating Pressure: 2,000 PSI / 138 bar

- Maximum PxT 1/16: 700,000 (°F x PSIG) / 25,000 (°C x bar)

- Maximum PxT 1/8: 350,000 (°F x PSIG) / 12,000 (°C x bar)

Dimension

- Thickness: 0.5, 1, 1.5, 2, 3, 4, 5 mm

- Size: 1500 x 1500 mm

Tests & Approvals : ABS Fire Safe Type Approved
