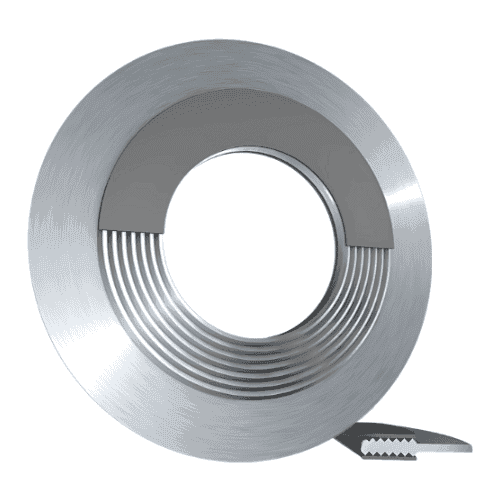

Kammprofile Metal Gasket

Metal coating: 304(L), 316(L), 321, carbon steel, copper.

Core:  Graphite, PTFE, CNAF, Ceramic

Maximum temperature (0C):

Graphite filler: 550

PTFE filler: 260

Non asbestos CF filler: 300

Ceramic filler:    1100

Maximum pressure (bar): 250

Size: According to customer requirements

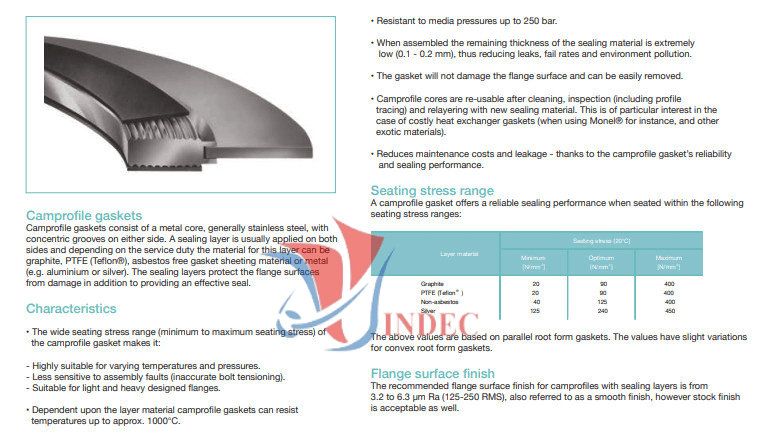

What is A Kammprofile Gasket?

  • Kammprofile Gasket is a metal core gasket machined with serrated teeth and coated with Graphite, Ceramic, Non asbestos fiber used when low tightening force is required.

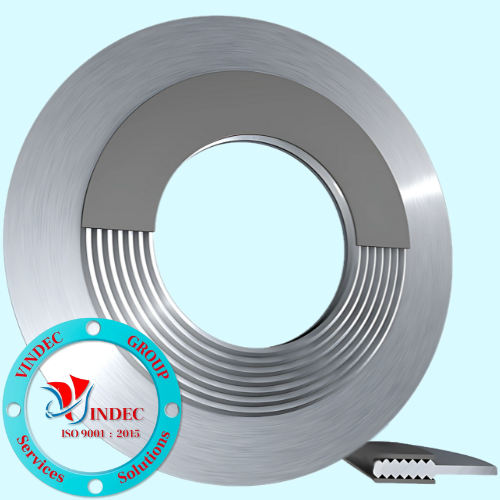

Kammprofile Gasket

Technical Kammprofile Gasket

  • Metal: 304(L), 316(L), 321, carbon steel, copper.
  • Core: Graphite, PTFE, CNAF, Ceramic
  • Maximum temperature (Graphite filler): -200°C to 500°C
  • Maximum temperature (PTFE filler): -200°C to 250°C
  • Maximum temperature (Non asbestos CF filler): -200°C to 300°C
  • Maximum temperature (Ceramic filler): -200°C to 1100°C
  • Maximum pressure (bar): 250
  • Size: According to customer requirements

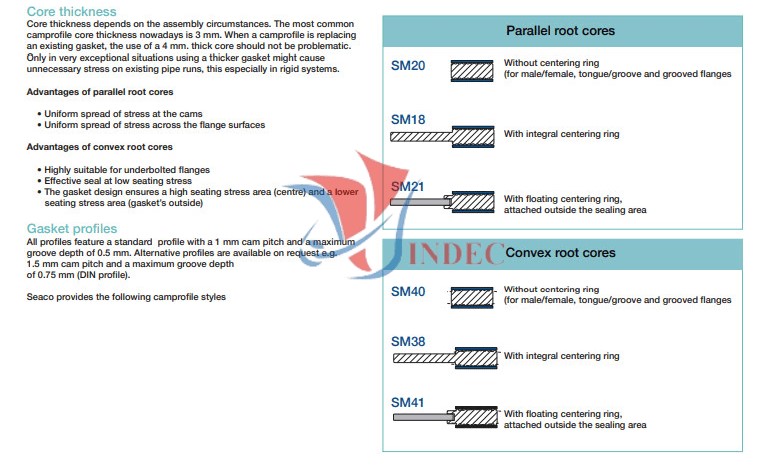

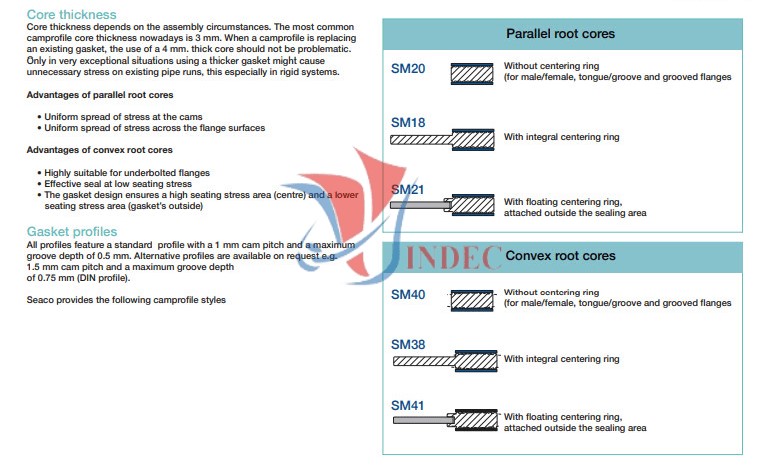

Different Type of Kammprofile Gasket

Key Features of Kammprofile Gasket

Good compressive elasticity, suitable for high temperature, high pressure

Can be used for corrosive liquids, gases, hot steam valves, gasoline, gas ...

Metal gaskets create a very good sealing surface, can be reused.

Used in both low and high temperature conditions (-200 ° C ~ + 700 ° C), it can also be used for high and low pressure (vacuum ~ 25Mpa).

This type of high pressure metal gasket is designed for Raised Face and Flat Face flanges

It has the ability to recover under the impact of the compression force fluctuations caused by the change of pressure and temperature of the liquid, causing the contact surface of the flange to deform, the flange to rotate, the bolt to stretch and deform.

Application of Kammprofile Gasket

Used as gaskets for flanges, valves, pumps, heat exchange systems and industrial machinery and equipment:

Processing industry

Petrochemical industry

Gas industry

Chemical industry

Hydroelectric power and thermal power plants ...
