What is A Corrugated Metal Gasket?
- Corrugated Metal Gaskets are corrugated metal gaskets coated with Graphite, Ceramic, Non asbestos fiber used where low tightening torque is required.

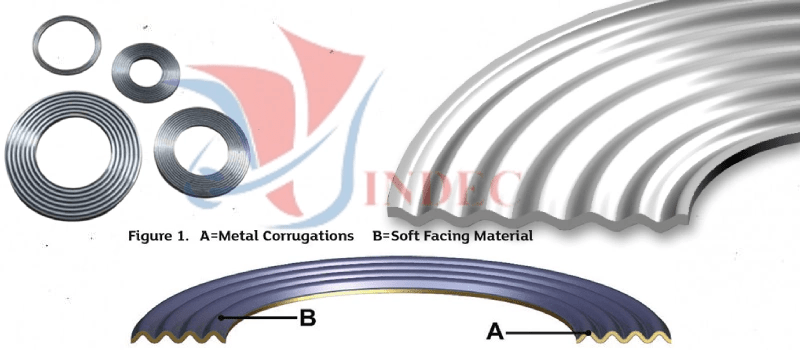

Corrugated Metal Gaskets

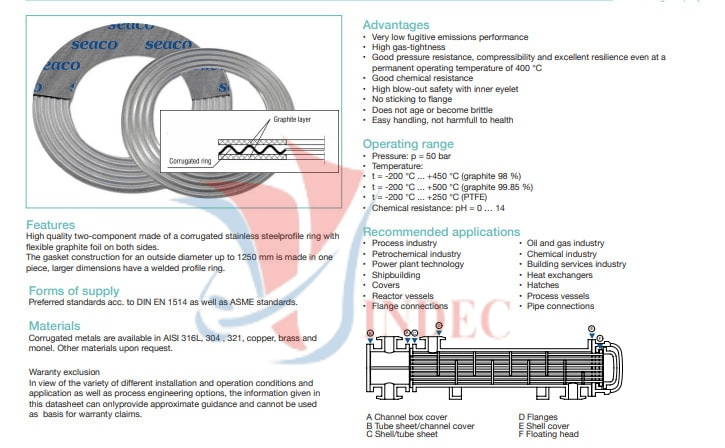

Technical Corrugated Metal Gasket
- Metal cladding: 304(L), 316(L), 321, carbon steel, copper, bronze, other materials on request.
- Core: Graphite, PTFE, CNAF, Ceramic
- Maximum temperature (Graphite filler): -200°C to 500°C
- Maximum temperature (PTFE filler): -200°C to 250°C
- Maximum temperature (Non asbestos CF filler): -200°C to 300°C
- Maximum temperature (Ceramic filler): -200°C to 1100°C
- Pressure (bar): 50°C

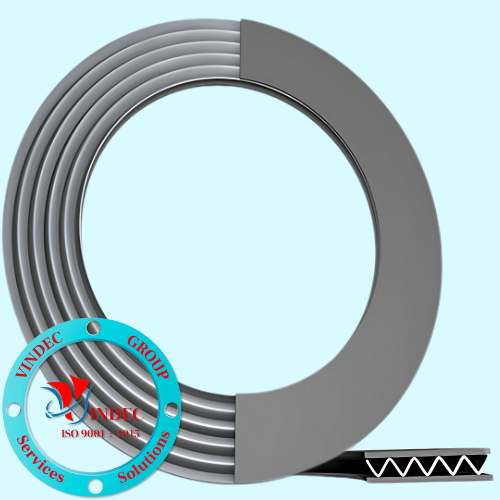

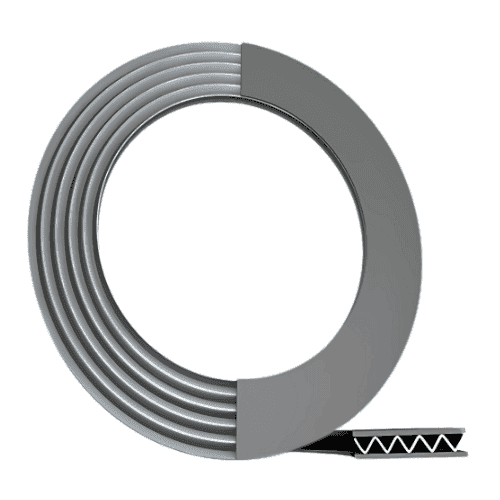

Different Type of Corrugated Metal Gasket
Key Features of Corrugated Metal Gasket
- Good compressive elasticity, suitable for high temperature, high pressure
- Metal gaskets create a very good sealing surface, can be reused.
- Can be used for corrosive liquids, gases, hot steam valves, gasoline, gas ...
- This type of high pressure metal gasket is designed for Raised Face and Flat Face flanges
- Used in both low and high temperature conditions (-200 °C ~ + 700 °C), it can also be used for high and low pressure (vacuum ~ 25Mpa).
- It has the ability to recover under the impact of the compression force fluctuations caused by the change of pressure and temperature of the liquid, causing the contact surface of the flange to deform, the flange to rotate, the bolt to stretch and deform.
Application of Corrugated Metal Gasket
Used as gaskets for flanges, valves, pumps, heat exchange systems and industrial machinery and equipment:
- Processing industry
- Petrochemical industry
- Gas industry
- Chemical industry
- Hydroelectric power and thermal power plants ...
