GRAPHITE GLAND PACKING
Graphite Gland Packing is a premium compression sealing material manufactured from expanded graphite fibers, flexible graphite yarns, or graphite-based braided constructions designed to provide reliable sealing in high-temperature and high-pressure environments.

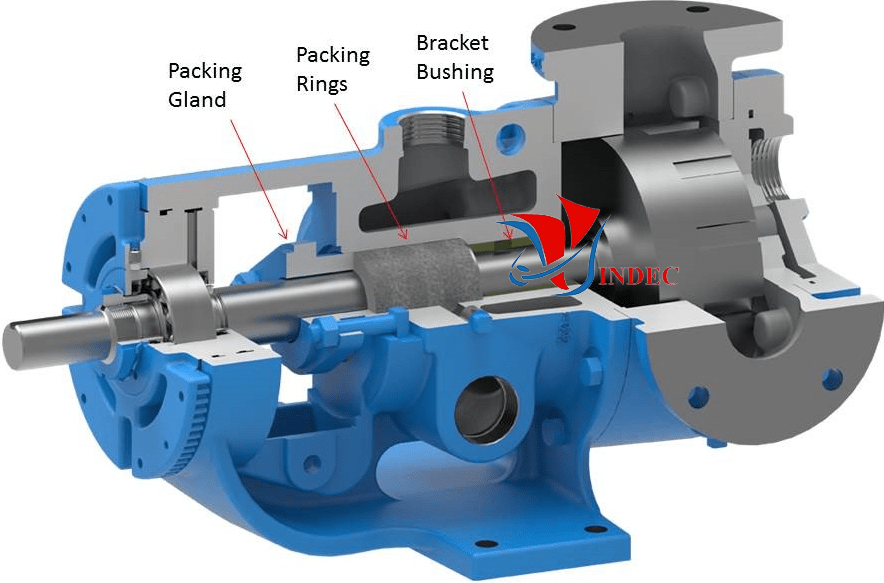

Graphite packing is widely recognized for its excellent thermal conductivity, self-lubricating characteristics, chemical resistance, and dimensional stability. It is commonly used in rotating and reciprocating equipment, including pumps, valves, agitators, and industrial process systems.
Compared with conventional packing materials, Graphite Gland Packing delivers improved sealing efficiency while minimizing shaft wear and maintenance requirements.
TECHNICAL DATA OF GRAPHITE GLAND PACKING
Material: Expanded Graphite Fiber
Lubrication: Self-Lubricating / Graphite Treated
Construction: Braided Compression Packing
Color: Black
Density: Approx. 1.10–1.60 g/cm³
Operating Temperature: -200°C to +650°C*
Steam Service Temperature: Up to +650°C*
Pressure Capability: Up to 300 bar*
Shaft Speed: Up to 20 m/s*
pH Range: 0–14
*Performance varies depending on equipment type and operating conditions.
KEY FEATURES OF GRAPHITE GLAND PACKING
Excellent High Temperature Resistance: Maintains sealing integrity under continuous thermal exposure.
Superior Thermal Conductivity: Efficiently dissipates frictional heat generated during operation.
Self-Lubricating Performance: Reduces friction and minimizes shaft and sleeve wear.
Excellent Chemical Resistance: Compatible with steam, water, oils, gases, and many industrial chemicals.
Low Leakage Characteristics: Provides reliable sealing efficiency under dynamic conditions.
Excellent Compression Recovery: Maintains sealing force during pressure and temperature changes.
Long Service Life: Reduces maintenance intervals and improves operational reliability.
High Pressure Capability: Suitable for severe industrial operating conditions.
DIFFERENT TYPES OF GRAPHITE GLAND PACKING
Pure Expanded Graphite Packing
Manufactured entirely from expanded graphite yarn.
Features: Excellent thermal resistance. Outstanding flexibility. Superior sealing performance
Applications: Steam valves, Thermal process systems

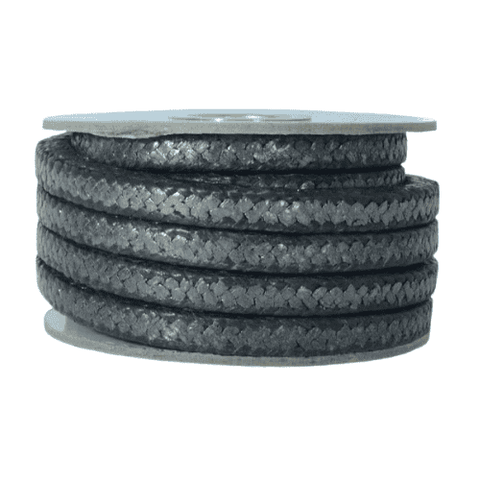

Graphite Packing Reinforced with Carbon Fiber
Expanded graphite reinforced with carbon fiber corners or structure.
Features: Increased mechanical strength, Improved extrusion resistance
Applications: High-pressure pumps, Industrial valves
Graphite Packing Reinforced with Inconel Wire
Braided graphite packing reinforced with metallic wire.
Features: Enhanced structural stability. Better pressure capability
Applications: Power generation. High-temperature equipment

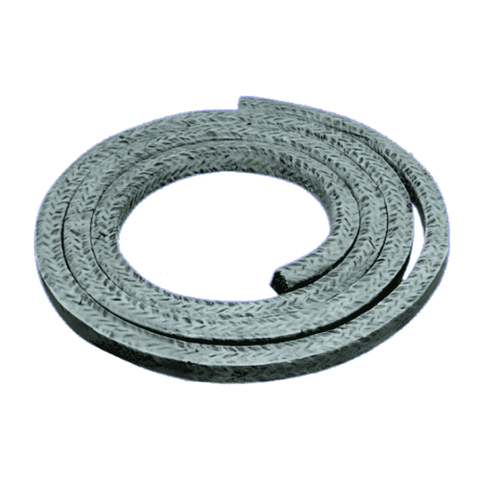

Graphite PTFE Packing
Combination of graphite and PTFE fibers.
Features: Reduced friction, Improved chemical resistance
Applications: Chemical process equipment, Rotating machinery
Lubricated Graphite Packing
Graphite fibers treated with lubricating compounds.
Features: Lower operating friction. Extended equipment life
Applications: Centrifugal pumps. Continuous processing systems
Die-Formed Flexible Graphite Rings
Pre-compressed flexible graphite rings designed for static sealing.
Features: Excellent density, High sealing reliability
Applications: Valve stems, High-pressure sealing assemblies
APPLICATIONS OF GRAPHITE GLAND PACKING
Industrial Pumps
Gate and Globe Valves
Steam Systems
Boilers and Thermal Equipment
Petrochemical Plants
Chemical Processing Facilities
Oil & Gas Equipment
Power Generation Systems
Heat Exchangers
Refinery Operations
Agitators and Mixers
High Temperature Process Equipment
CONCLUSION
Graphite Gland Packing is one of the most effective compression sealing solutions for high-temperature and demanding industrial environments. With excellent thermal resistance, self-lubrication, chemical compatibility, and multiple construction options, it provides long-term sealing reliability while reducing maintenance and improving equipment efficiency.
