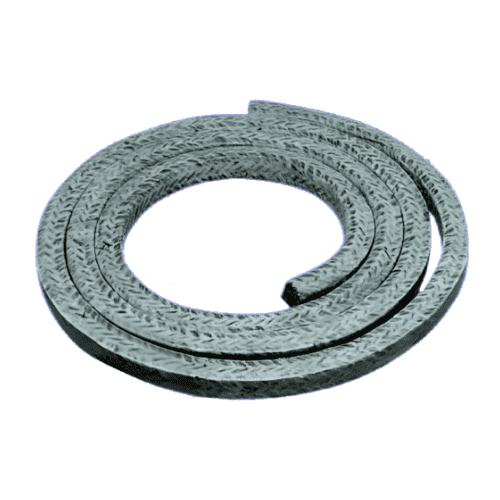

Graphite with PTFE Impregnated Gland Packing
Graphite Packing with PTFE Impregnated is braided from Expanded graphite yarns which impregnated with PTFE as a blocking agent thus creating a non-straining packing. The yarns are reinforced by textile fibers.
Excellent cross-section tightness, structural strength
Very lo friction-valve, wear resistant, yet gentle to shaft and stem.
Technical Data
Material: 100% Expanded Graphite Yarn and PTFE oil
Temperature Range: -200 up to +280 Deg.C
Pressure range:
- Pressure (Rotating): 3Mpa
- Pressure (Reciprocating): 10Mpa
- Pressure (Valves ): 20 Mpa
Shaft Speed: 22m/s in rotary
PH range: 0~14
Density: 1.5 g/cm3
Size: 4x4mm to 50x50mm
Key Features
Excellent Chemical Compatibility: Performs reliably with aggressive chemicals and process fluids.
Reduced Friction Effect: PTFE impregnation supports smoother shaft operation.
Strong Thermal Performance: Graphite structure remains stable at elevated temperatures.
Improved Sealing Reliability: Helps control leakage under continuous service conditions.
Enhanced Surface Lubrication: Minimizes packing wear and extends operating life.
Good Compression Recovery: Maintains sealing efficiency after repeated loading cycles.
Low Maintenance Requirement: Supports longer service intervals and reduced downtime.
Suitable for Dynamic Applications: Ideal for pumps, valves, and rotating equipment.
Application
Can be used in many demanding applications, both dynamic and static
Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixer and agitators of pulp and paper, power station and chemical plant etc.
