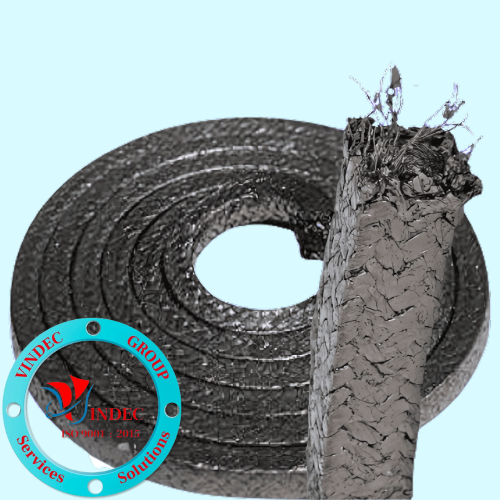

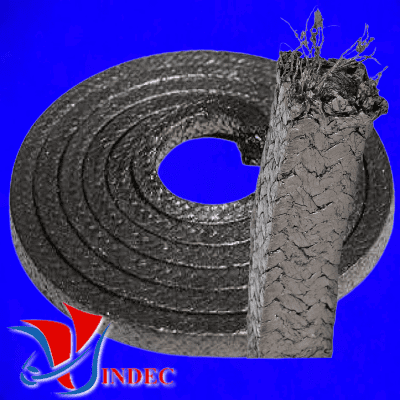

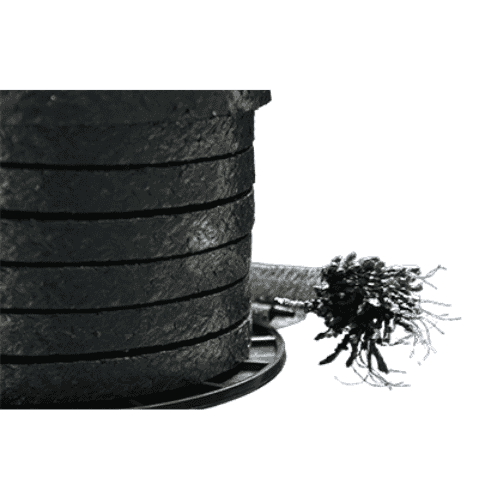

Graphite with Inconel Wire Gland Packing
Made of flexible graphite yam and reinforced with several high temperature-resistant Inconel wires, having much high pressure tightness and much stable performances, applicable for static seal packing under high temperature and pressure.

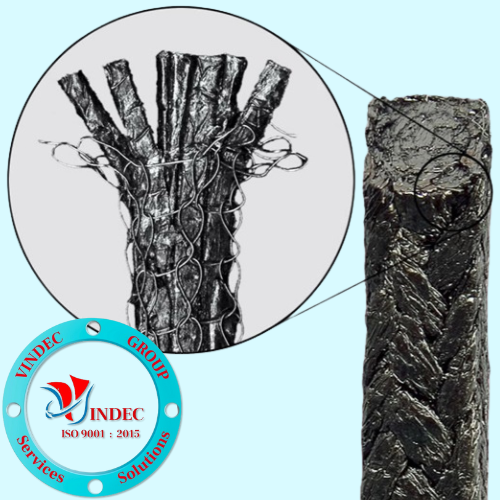

Graphite packing reinforced with wire is braided from expanded graphite yarns, reinforced with metal wire, normally reinforced with inconel wire.
The wire reinforcement provides greater mechanical strength, used for high pressure and temperatures.
Technical Data
Material: 100% Expanded Graphite, metal wire Inconel
Temperature range:
- Temperature (Atmosphere) -200 up to +555 Deg.C atmosphere
- Temperature (in Steam): -200 up to +650 Deg.C in Steam
Pressure range:
- Pressure (Rotating): 5Mpa
- Pressure (Reciprocating): 15Mpa
- Pressure (Valves ): 30 Mpa
Shaft Speed: 20m/s in rotary
PH range: 0~14
Density: 1.5 g/cm3
Size;: 4x4mm to 50x50mm
Key Features
Inconel Wire Reinforcement: Enhances structural integrity and improves resistance to extrusion.
Exceptional Thermal Capability: Performs efficiently in continuous high-temperature service.
Excellent Pressure Endurance: Maintains sealing performance under severe pressure conditions.
Improved Mechanical Durability: Reinforced construction supports long operating cycles.
High Oxidation Resistance: Suitable for demanding thermal and steam environments.
Stable Compression Characteristics: Preserves sealing effectiveness during load variations.
Reduced Leakage Performance: Supports dependable sealing in critical industrial systems.
Ideal for Severe Duty Applications: Designed for valves, steam lines, and high-load equipment.
Applications
Flexible graphite packing is a multi-service packing capable of a wide variety of uses throughout a plant.
It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure and temperature.
Excellent for use in steam turbines, high temperature motor-actuated valves
High temperature and high pressure valve applications in general.
