Asbestos Graphite Packing

Materials: Asbestos, graphite, oil/grease

pH range: 0-14

Density (g/cm3): 1.65

Temperature range : 315 °C

Pressure range:  3 - 30 Mpa

Velocity range:  0-8 Mtrs/sec

Color: black

Available Size: 4x4, 6x6 to 25x25mm

Packing : 5kgs, 10kgs, 20kgs per roll

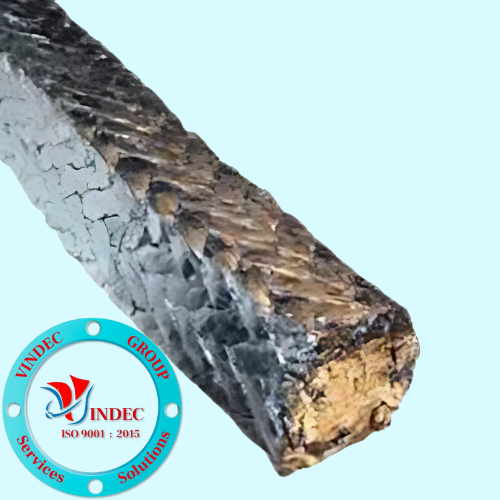

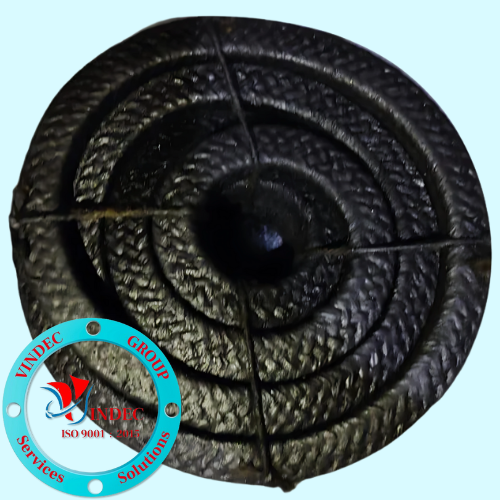

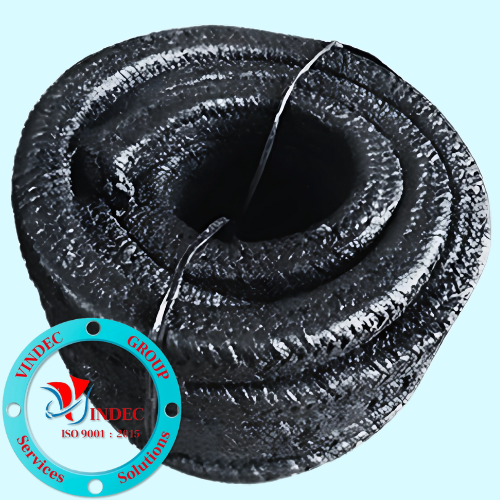

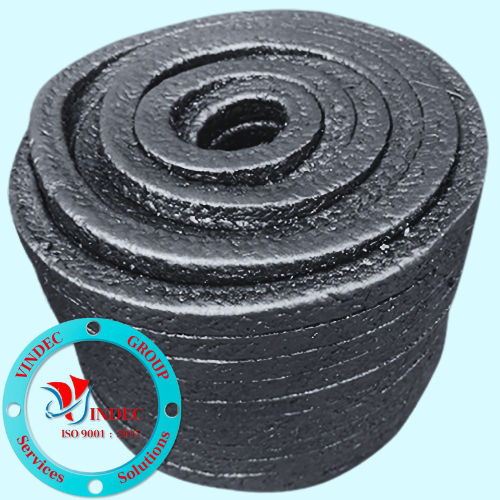

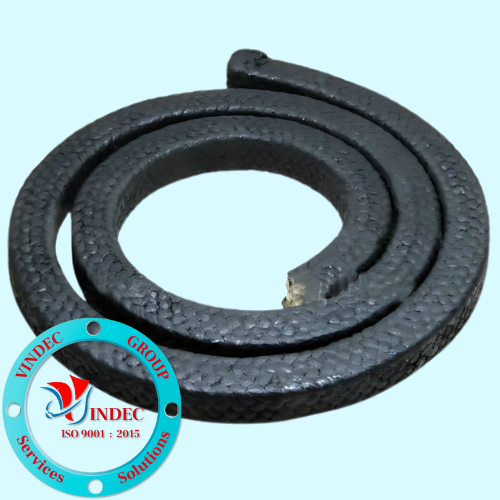

Asbestos Graphite Gland Packing

  • Asbestos packing lubricated and graphite is braided with asbestos thread yarn and impregnated with lubricating oil/grease and surface coated graphite.the life of this packing is much then ordinary packing. It is suitable for rotary shafts, reciprocating pistons or valve rods as sealing

  • Asbestos graphite non-metallic packing is formed by interbraided method to from very dense and yet flexible packing. Each thread is impregnated into a solution with high lubrication value, the life of this packing is much then ordinary packing.

Technical Asbestos Graphite Packing

  • Materials: Asbestos, graphite, oil/grease

  • pH range: 0-14

  • Density (g/cm3): 1.65

  • Temperature range : 315 °C

  • Pressure range:  3 - 30 Mpa

  • Velocity range:  0-8 Mtrs/sec

  • Color: black

  • Available Size: 4x4, 6x6, 8x8, 10x10, 12x12, 14x14, 16x16, 18x18, 20x20, 22x22, 25x25mm to 50x50mm

  • Packing : 5kgs or 10kgs per roll

Application of Asbestos Graphite Packing

  • The working medium are steam, air industrial waterpetroleum,etc.widely used in general industries such as petroleum, chemical industry, mechanical equipment, shipbuilding, etc.
