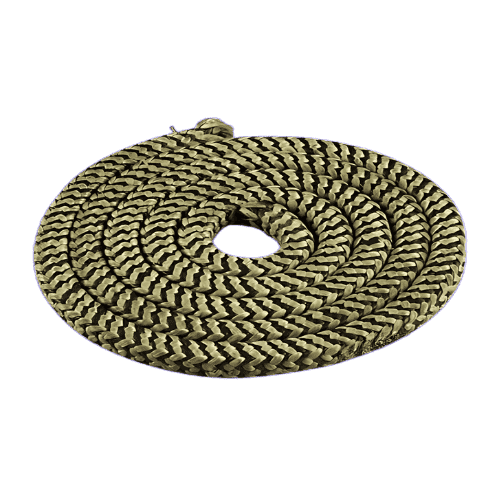

Graphite PTFE & Aramid in Zebra Braided Packing
Description:Multi-yarn in zebra braided packing consisting of gPTFE yarns and aramid, it has excellent lubrication ability and thermal conductivity.
Size : From 4 x 4mm to 50 x 50mm
Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10 kg, other weight on request; as precut length.
Technical Data
Materilas: gPTFE, Aramid fiber
Pressure Range
- Rotating: 25bar
- Reciprocating: 150bar
- Static: 200bar
Shaft speed: 15m/s
Density: g/cm3
Temperature:－150 to +280 Deg.C
PH range: 2 ~ 12
Size: 4x4mm to 50x50 mm
Packing standard: 1kg, 2kg, 5kg or 10kg/ box
Applications: Valves, Pumps, Mixers
Key Features
Zebra Braided Construction: Combines flexible sealing zones with reinforced wear-resistant sections.
Balanced Strength and Lubrication: Integrates aramid durability with graphite PTFE smooth operation.
Excellent Abrasion Handling: Suitable for applications containing abrasive particles.
Reduced Friction Effect: Supports lower shaft temperature and smoother movement.
Enhanced Pressure Stability: Maintains sealing performance under fluctuating loads.
Reliable Chemical Resistance: Performs well with industrial fluids and process media.
Improved Dimensional Control: Helps preserve packing geometry during long service periods.
Optimized Equipment Protection: Minimizes maintenance and extends equipment operating efficiency.
Applications
Offers the strength of aramid fibers , the thermal dissipating and low friction property of graphited PTFE. Used in reciprocating pumps, mixers, reactors and valves for petrochemical, paper and sugar industries , power stations.
