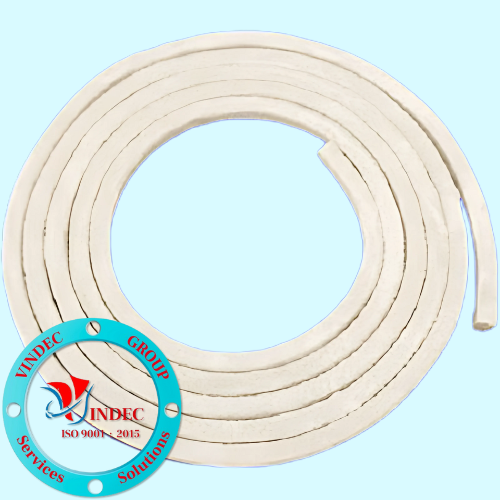

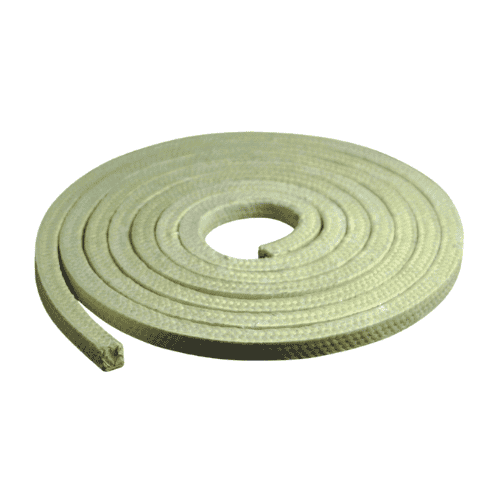

Aramid Fiber with PTFE Impregnated Packing
Aramid fiber with ptfe impregnated packing is an interlock braid, using spun aramid carded yarns, treated individually with PTFE suspensoid. The packing is also lubricated with silicone based compound for quick and easy break-in. The use of spun aramid fibers produces a softer and very tough packing, but one that is less abrasive than packings braided with aramid filaments.
Technical Data
Material: Aramid fibers, PTFE
Pressure range:
- Pressure (Rotating): 25 bar
- Pressure (Reciprocating): 100 bar
- Pressure (Valves ): 200 bar
Temperature:－100 to +280 Deg.C
Shaft speed: 15 m/s
Density: 1.4g/cm3
PH range: 2 - 12
Size: 3x3mm to 50 x 50mm
Key Features
High Wear Resistance: Aramid fibers provide excellent protection in abrasive service conditions.
PTFE Enhanced Lubrication: Supports smoother operation and reduced friction.
Strong Pressure Performance: Maintains sealing stability under heavy mechanical loads.
Improved Chemical Compatibility: Suitable for water, oils, and selected process media.
Excellent Shape Retention: Resists deformation during continuous operation.
Low Equipment Wear: Helps protect shafts and sealing surfaces.
Reliable Leak Prevention: Delivers consistent sealing efficiency in dynamic systems.
Extended Operating Lifetime: Supports reduced maintenance and improved productivity.
Applications
Steam, slurries, petroleum derivatives, solvents, chemicals, liquified gases, pulp and paper stocks, sugar syrups, and other abrasive fluids.
It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc.
