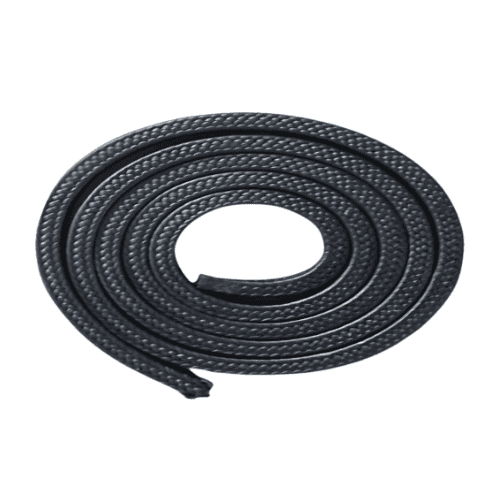

PTFE Graphite Packing With Oil

PTFE Graphite With Oil Packing

The packing made of 100% gPTFE yarns, and re-impregnated with a silicone lubricant with density about 1.6g/cm3. It is also economical gPTFE packing.

Technical Data

Materials: gPTF, Oil

Pressure Range

• Rotating: 15 bar
• Reciprocating: 100 bar
• Static: 200 bar

Shaft speed: 12 m/s

Density: 1.65g/cm3

Temperature:－150 to +280 Deg.C

PH range: 0 ~ 14

Size: From 4 x 4mm to 50 x 50mm

Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10kg/box

Key Features

Triple Lubrication Effect: Combines PTFE, graphite, and oil for smoother sealing action.

Excellent Running Stability: Supports continuous operation with reduced performance loss.

Low Surface Friction: Helps decrease wear on shafts and moving components.

Improved Thermal Response: Enhances heat release during dynamic service conditions.

Reliable Chemical Tolerance: Performs effectively with diverse industrial media.

Extended Packing Efficiency: Delivers durable sealing and longer maintenance cycles.

Applications

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings.

Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
