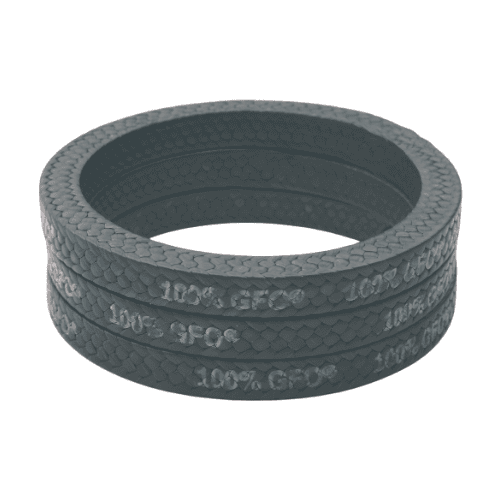

100% GFO Gland Packing
-
This packing made using of GFO the blend of pure graphite filament in the expanded PTFE (GFO Packing is braided with Teflon wire containing graphite particles) reduces thermal expansion of the fiber and give better heat resistance to the packing. It can be utilized through an extremely wide range of application including acids, petroleum and synthetic oils, the packing won’t turn to be hot hard or broken. It’s suitable for application of various pumps and valves.
-
It was made from graphite-PTFE compound with lubricant very good thermal conductivity. High flexibility and volumetric stability, no embrittlement or ageing. Long life with good operating efficiency. Gentle treatment of shafts.
Technical 100% GFO Gland Packing
-
Materials: pure graphite filament in the expanded PTFE (GFO)
-
Construction: Inter braided
-
Temperature: -180 to +280℃
-
Pressure range:
-
Rotatory: 3MPa
-
Reciprocating: 15MPa
-
Valve: 25MPa
-
-
PH range: 0~14
-
Linear speed: 22m/s
-
Size: 3x3mm to 50 x 50mm
Key Features
-
30 years of proven performance
-
Name printed on the packing
-
Widest range of applications
-
Long lasting
-
Does not harden
-
Minimum shaft damage
-
Manufacturer’s reputation for highest quality fluid sealing products
Key Benefits
-
Confidence that the product will work every time
-
Easy to install & to remove
-
Reducesinventory levels by consolidating packing needs
-
Saves money & labor
-
Minimum downtime from re-packing pumps or resurfacing shafts
Applicaton areas
-
100% GFO gland packing can be used in pumps, agitators mixers and kneader centrifugal pumps, agitators,involving high peripheral speeds and temperatures, where pure PTFE packing fail.
Application media
-
100% GFO gland packing is suitable for liquid and gaseous, acids, lye, solvents, adhesives, abrasive and crystalline media like sewage, slurries, salt, etc.
Not suitable for
-
Highly oxidizing media like oleum, fumin nitric acid, aqua region, gaseous fluorine , lacquer and paints.
