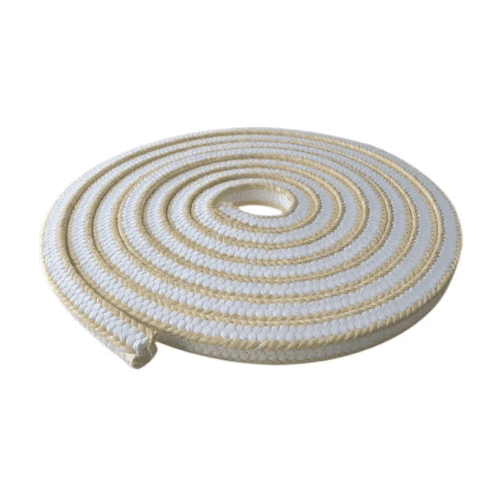

White PTFE Packing with Aramid Corners
PTFE packing with aramid corners,it is Multi-yarn packing, the corners of packing are made of aramid yarns impregnated with PTFE, while the friction faces are made of pure PTFE yarns. This structure enhances the lubrication ability of aramid fiber and improves the strength of the pure PTFE.
Technical Data
Materials: PTFE, Aramid
Pressure Range
- Rotating: 20bar
- Reciprocating: 100bar
- Static: 180bar
Shaft speed: 12m/s
Density: g/cm3
Temperature:－100 to +280 Deg.C
PH range: 2 ~ 12
Size: From 4x 4mm to 50 x 50mm
Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10kg/box
Key Features
Corner Reinforced Structure: Aramid corners improve durability in high-load applications.
Excellent Sliding Performance: PTFE fibers support smooth shaft movement and reduced drag.
High Extrusion Resistance: Maintains packing stability under elevated pressure.
Improved Wear Control: Designed to reduce damage in rotating equipment.
Broad Chemical Compatibility: Performs effectively with various industrial media.
Consistent Sealing Efficiency: Helps maintain stable leak control during operation.
Flexible Compression Behavior: Adapts well to stuffing box conditions.
Long Operating Reliability: Supports extended maintenance intervals and service life.
Application
Designed for high pressure reciprocating pumps, medium speed centrifugals and valves. It can be used for general service steam, gases, solvents, mild acids, alkalis and most abrasive liquids. The packing will not stain in pulp paper mill, pharmaceutical, food and sugar industries.
