PTFE GLAND PACKING
PTFE Gland Packing is a high-performance compression sealing material manufactured from 100% expanded PTFE fibers or braided PTFE yarns designed for dynamic and static sealing applications. PTFE (Polytetrafluoroethylene) is widely recognized for its exceptional chemical resistance, low friction coefficient, thermal stability, and non-contaminating characteristics.
PTFE gland packing is commonly braided into square or interlock constructions and may be impregnated with silicone oil, graphite, lubricants, or special additives to improve heat dissipation and operational life.
Due to its excellent chemical compatibility and clean sealing properties, PTFE Gland Packing is extensively used in chemical processing, food production, pharmaceutical systems, pumps, valves, and industrial process equipment.
TECHNICAL DATA OF PTFE GLAND PACKING
Material: 100% PTFE Fiber
Construction: Braided Compression Packing
Color: White / black
Density: Approx. 1.40–1.70 g/cm³
Operating Temperature: -100°C to +280°C*
Steam Service Temperature: Up to +260°C*
Pressure Capability
- Rotary: Up to 25 bar*
- Reciprocating: Up to 100 bar*
- Static: Up to 200 bar*
Shaft SpeedUp to 10–15 m/s*
pH Range1–13
Lubrication: Dry / Silicone Oil / Graphite
*Actual performance depends on construction type and service conditions.
KEY FEATURES OF PTFE GLAND PACKING
Outstanding Chemical Resistance: PTFE offers excellent resistance to acids, alkalis, solvents, oils, and aggressive industrial chemicals.
Low Friction Characteristics: Reduces shaft wear and lowers energy consumption.
Excellent Thermal Stability: Maintains sealing performance across a wide operating temperature range.
Non-Contaminating Material: Suitable for applications requiring clean and hygienic sealing.
Excellent Flexibility: Adapts effectively to stuffing box surfaces.
Good Dimensional Stability: Maintains sealing integrity during continuous operation.
Low Moisture Absorption: Performs reliably in wet and humid environments.
Long Service Life: Helps reduce maintenance frequency and equipment downtime.
DIFFERENT TYPES OF PTFE GLAND PACKING
Pure PTFE Gland Packing
Manufactured entirely from braided PTFE fibers.
Features: Maximum chemical resistance. Clean sealing performance. Excellent flexibility
Applications: Chemical processing. Pharmaceutical production

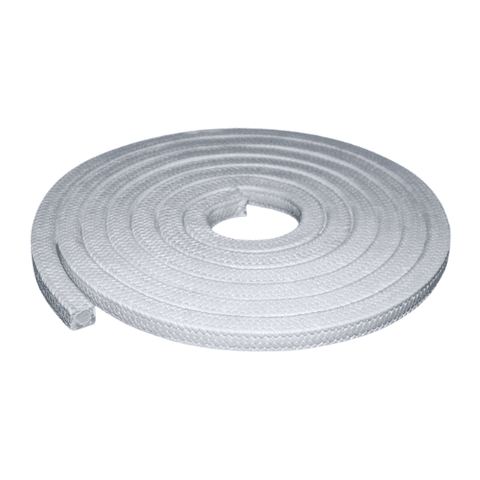

PTFE Packing with Silicone Oil
PTFE fibers impregnated with silicone oil.
Features: Lower friction. Improved heat dissipation. Better shaft protection
Applications: Rotary pumps. Water treatment systems

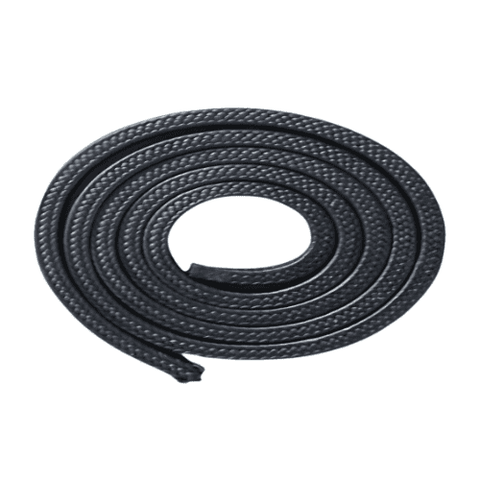

Graphite PTFE Gland Packing
PTFE fibers combined with graphite.
Features: Improved thermal conductivity. Reduced friction. Enhanced sealing efficiency
Applications: Industrial pumps Valves and steam systems
Expanded PTFE Gland Packing (ePTFE Packing)
Manufactured from expanded PTFE yarn.
Features: Higher flexibility. Excellent conformability. Superior sealing performance
Applications: Sensitive process equipment. Chemical industries
PTFE Aramid Corner Packing
PTFE packing reinforced with aramid corners.
Features: Increased wear resistance. Improved pressure capability
Applications: Abrasive service. Heavy-duty pumps
Lubricated PTFE Gland Packing
PTFE packing enhanced with special lubricants.
Features: Reduced operating friction. Extended equipment life
Applications: Continuous process systems. Rotating machinery
APPLICATIONS OF PTFE GLAND PACKING
Chemical Processing Plants
Food and Beverage Industry
Pharmaceutical Manufacturing
Water Treatment Systems
Centrifugal Pumps
Rotary Pumps
Industrial Valves
Petrochemical Facilities
Pulp and Paper Industry
Marine Applications
Agitators and Mixers
General Industrial Equipment
CONCLUSION
PTFE Gland Packing is one of the most versatile compression sealing solutions for industrial applications requiring excellent chemical resistance and low-friction performance. With multiple construction options and reliable long-term sealing capability, PTFE packing helps improve equipment efficiency while minimizing leakage and maintenance costs.
PTFE compression packing, are made of Polytetrafluoroethylene, is known for its exceptionally high resistance to chemicals and low friction. PTFE Gland packings are made of specially selected polytetrafluoroethylene (PTFE) filaments or exfoliated graphite acrylic fibre.
In our PTFE gland packings, the braiding process guarantees a solid but durable substance of constant consistency, ideal for continuous operation at varying temperature.
Our PTFE Compression Packing product line includes valve stem packing, food grade packing and chemically resistant packing for pumps and rotary equipment. The PTFE packings can stand almost every chemical substance known.
The PTFE compression packings offer great temeprature resistance up to +260°C as the PTFE dispersion ensures a low friction finish and pre- vents leakage through the braid.
