What is A Drain Separator ?

- What is a Drain Separator? It is a device used to filter and separate condensate steam, clean hot steam or compressed air at the outlet to put hot steam into use.

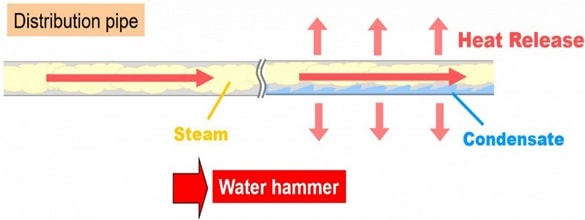

- In a steam/air piping system, drain (water) causes problems, such as rust and water hammer. It also decreases the dryness and heat quantity content of steam and thermal efficiency in a steam system. The DS-1 and DS-2 are separators making use of centrifugal force and impact force to effectively separate drain inside piping.

- In the steam system, the use of a water separator valve will avoid the phenomenon of energy loss, creating condensate and water hammer in the pipe line.

Technical Drain Separator

- Body of Drain separator: Cast iron, Ductile iron, Cast steel, Stainless steel.

- Pressure working range: 20 Bar (Steam), 10 Bar (Air).

- Max. Temperature working range: 220°C.

- Connections ends of Drain separator : Threaded ends JIS RC, Flanged ends JIS 10KFF, JIS 20KFF, BS, DIN, ANSI

- Size of Drain separator: DN15 - DN100

- Application of Drain separator : Steam system, Air system

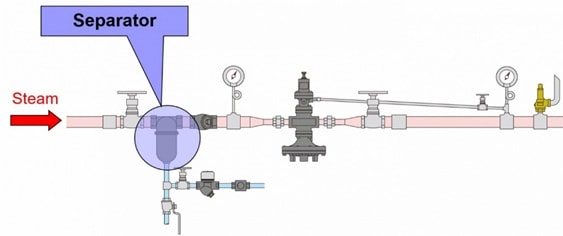

Drain Separator Valve Installation Location
