GLAND PACKING
What Is Gland Packing?
Gland Packing, also known as Compression Packing, Mechanical Packing, Braided Packing, or Packing Rope, is a sealing material used to prevent leakage between moving and stationary components in industrial equipment.
It is manufactured by braiding high-performance fibers such as Graphite, PTFE, Aramid, Carbon, Ceramic, Cotton, Glass Fiber, and Synthetic Fibers into square or rectangular cross-sections. Additional lubricants, blocking agents, and surface treatments may be applied to improve sealing performance, reduce friction, minimize leakage, and enhance heat dissipation.

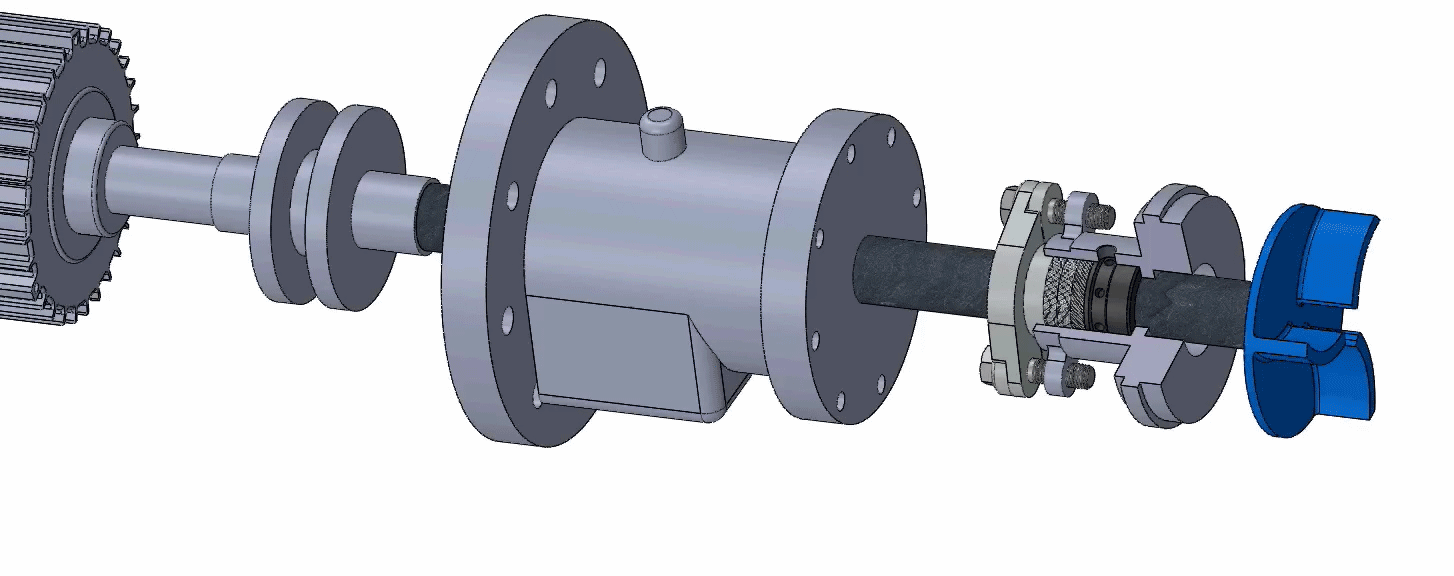

During installation, packing rings are inserted into the stuffing box and compressed using a gland follower, creating radial sealing pressure against rotating shafts or valve stems.
Gland Packing is widely used in industries requiring reliable sealing under high temperature, pressure, chemical exposure, and mechanical movement.
HOW GLAND PACKING WORKS
When axial force is applied through the gland follower:
- The packing compresses axially
- Expansion occurs radially
- A sealing interface forms between the shaft/stem and housing
- Leakage is controlled while allowing movement
This sealing mechanism provides a balance between sealing efficiency and equipment operability.
DIFFERENT TYPES OF GLAND PACKING

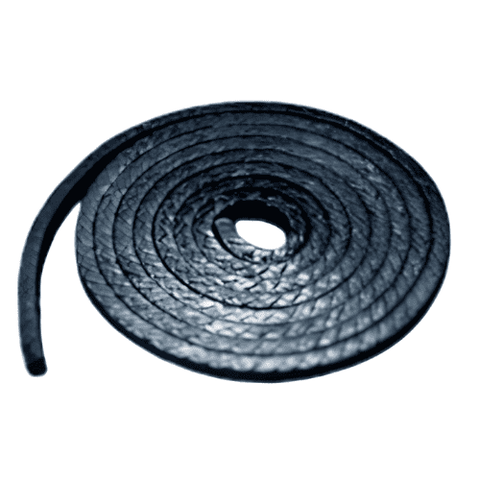

1. Graphite Gland Packing
Manufactured from expanded graphite fibers.
Features:
- Excellent temperature resistance
- Low friction
- Superior chemical compatibility
Applications:
- Steam valves
- High-temperature systems
2. Aramid Gland Packing
Manufactured from high-strength aramid fibers.
Features:
- Excellent abrasion resistance
- High mechanical strength
- Long service life
Applications:
- Slurry pumps
- Mining equipment

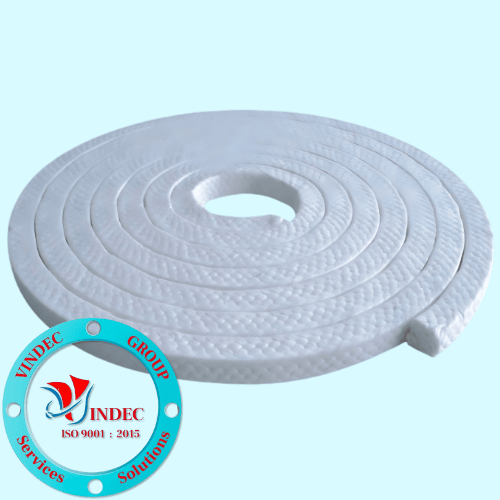

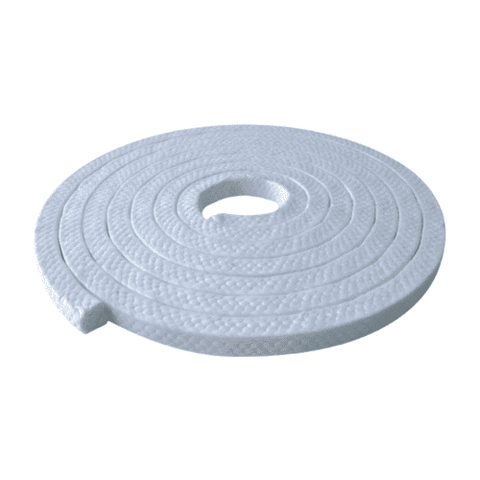

3. PTFE Gland Packing
Produced using pure PTFE fibers.
Features:
- Outstanding chemical resistance
- Low friction coefficient
- Non-contaminating
Applications:
- Chemical plants
- Food processing

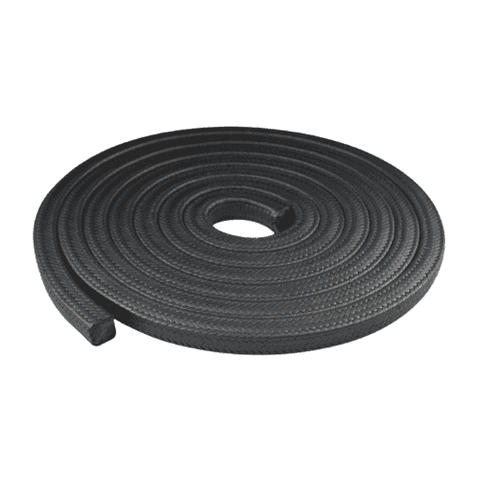

4. Graphite PTFE Gland Packing
Combination of PTFE and graphite.
Features:
- Improved thermal conductivity
- Reduced friction
- Excellent sealing capability
Applications:
5. Cotton Gland Packing
Manufactured from natural cotton fibers.
Features:
- Flexible structure
- Economical sealing solution
Applications:
- Water systems
- Low-pressure service

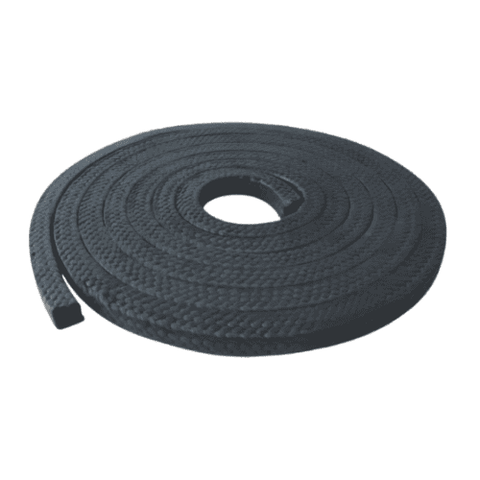

6. Carbon Gland Packing
Produced from carbon-based fibers.
Features:
- Excellent heat resistance
- Good dimensional stability
Applications:
- Steam service
- Power generation
7. Asbestos Gland Packing
Traditional packing material with thermal resistance.
Features:
- Good heat resistance
- Reliable sealing capability
Applications:
- Legacy industrial systems
8. Ceramic Fiber Packing
Manufactured from ceramic fibers.
Features:
- Excellent thermal insulation
- High temperature capability
Applications:
- Furnaces
- Thermal processing systems
9. Glass Fiber Packing
Produced from fiberglass yarn.
Features:
- Heat resistant
- Strong mechanical performance
Applications:
- Thermal equipment
- Exhaust systems
10. Synthetic Fiber Gland Packing
Manufactured from engineered synthetic materials.
Features:
- Excellent wear resistance
- Good chemical compatibility
Applications:
- General industrial sealing
PACKING CONSTRUCTION TYPES
Common gland packing constructions include:
- Square Braided Packing
- Interlock Braided Packing
- Lattice Braided Packing
- Round Braided Packing
- Reinforced Corner Packing
- Multi-Layer Braided Packing
Construction style affects:
- Compression behavior
- Wear resistance
- Leakage performance
- Service life
KEY FEATURES OF GLAND PACKING
- Excellent sealing efficiency
- Suitable for dynamic sealing applications
- Wide temperature compatibility
- Chemical resistance
- High pressure capability
- Easy maintenance and replacement
- Good compression recovery
- Low operational cost
- Long service life
APPLICATIONS OF GLAND PACKING
Gland Packing is widely applied in:
- Centrifugal Pumps
- Rotary Pumps
- Valves
- Mixers and Agitators
- Compressors
- Mining Equipment
- Petrochemical Plants
- Power Generation Facilities
- Water Treatment Systems
- General Industrial Equipment
Its versatility makes it one of the most widely used sealing solutions for rotating and reciprocating equipment.
