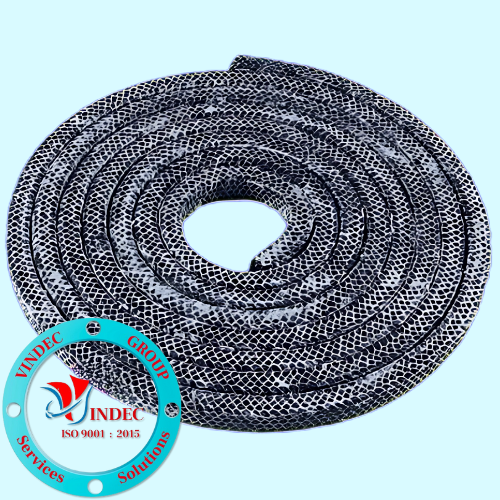

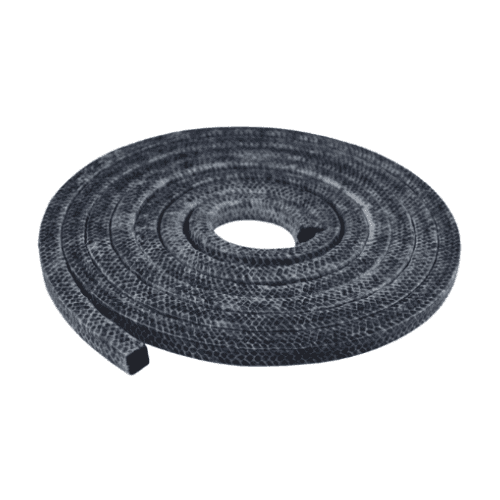

Carbon Fiber with Impregnated PTFE Gland Packing
PTFE Impregnated carbonized fiber gland packing is made of carbonized poly arcylonitrile fiber and fininshed with PTFE dispersion and lubricant.
Carbonized fiber packing braided from shrink-proof synthetic fiber impregnated with PTFE, Silicone-oil-free. Oxidized fiber has high strength and good thermal conductivity, PTFE makes the packing have excellent self-lubrication.
Carbonized fiber packing is braided from carbonized fiber yarns, impregnated with PTFE dispersion. It is inert to almost all corrosive chemicals. It can replace PTFE asbestos packing within wide service range.
Technical Data
Material: Carbon Fiber, PTFE (Teflon)
Temperature Range: -50 up to +280 C atmosphere
Pressure range: 200 Kg/cm2
Pressure Rotating: 20 bar
Pressure Reciprocating: 100 bar
Pressure Static: 200 bar
Shaft Speed: 25 Mtrs/sec
PH range: 2~12
Density: 1.1~1.3g/cm3
Size;: 4x4mm to 50x50mm
Key Features
PTFE Based Low Drag Design: Promotes smooth sealing and reduced running resistance.
Carbon Fiber Strengthening: Improves durability under continuous mechanical loading.
Excellent Media Compatibility: Performs well with aggressive fluids and process chemicals.
High Surface Stability: Helps maintain packing integrity during operation.
Reduced Shaft Contact Wear: Supports longer equipment service intervals.
Effective Pressure Handling: Maintains sealing consistency in demanding applications.
Good Thermal Adaptability: Operates reliably across varying temperature conditions.
Optimized Dynamic Sealing: Suitable for pumps, valves, and rotating equipment.
Applications
PTFE Impregnated Carbonized Fiber Gland is to seal water, brine, factory waste, salt solutions, weak acid, mineral oil,etc.
For centrifugal pump, mixer, agitator, stern tube. etc. It is inert to almost all corrosive chemicals. It covers wide range of application, relatively economical among non-asbestos packing.
It can replace PTFE asbestos packing within wide service range. An ideal packing for paper mill application.
Be used in weak acids and alkalis or media containing few grains of solid particles
Mainly used for centrifugal pumps, plunger pumps, mixers and valves.
