Cotton Gland Packing

Pressure ( in Bar) Range:

  • - Rotating: 10 bar

  • - Oscillating: 20 bar

  • - Fixed : 70 bar

Temperature range : -40 to 120 độ Deg.C

PH Range: 6 - 8

Velocity:

Density (in Grams/CC): 1.2 - 1.3 g/cm3

Size: 6mm to 50 mm

Packing standard: 1kg, 2kg, 5kg or 10kg/ box

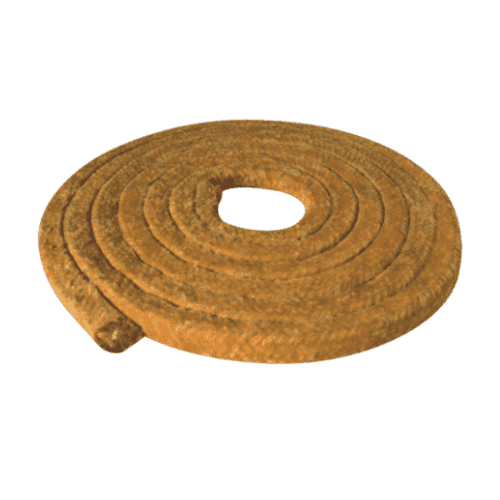

What is A Cotton Gland Packing?

  • Cotton gland packing is This is high grade cotton graphite packing thoroughly Impregnated with a superior blend of mineral lubricants and waxes together with a flake graphite finish.

Technical Cotton Gland Packings

  • Pressure ( in Bar) Range:

    • - Rotating: 10 bar

    • - Oscillating: 20 bar

    • - Fixed : 70 bar

  • Temperature range : -40 to 120 độ Deg.C

  • PH Range: 6 - 8

  • Velocity:

  • Density (in Grams/CC): 1.2 - 1.3 g/cm3

  • Size: 6mm to 50 mm

  • Packing standard: 1kg, 2kg, 5kg or 10kg/ box

Different Type of Cotton Gland Packings

  • Cotton Fiber Impregnated greas Gland Packing, Cotton Fiber Impregnated greas and graphite Gland Packing, Cotton Fiber Impregnated oil Gland Packing, Cotton Fiber Impregnated oil and graphite Gland Packing.

• Cotton Impregnated Greas Gland Packing

• Cotton In Oil and Graphite Gland Packing

Cotton Impregnated Oil and Graphite Gland Packing

Key Features of Cotton Gland Packing

  • Cost effective for basic application.

  • Running in lubricants.

  • Optimum density & good flexibility.

  • Easy to cut & fit.

  • Prevents overheating during critical run in period.

  • Will not score shaft.

Applications of Cotton Gland Packing

  • It is recommended to use in marine or land based pumps & valve that handle cold water & oil. Also used in rotary, reciprocating pumps, in ship building and domestic fresh water pumps.

  • It can be used in water, sewage water, sea water, salt solution etc.

  • It is resistant to water, dilute acids & alkalise, organic compounds, oils and Greases.
