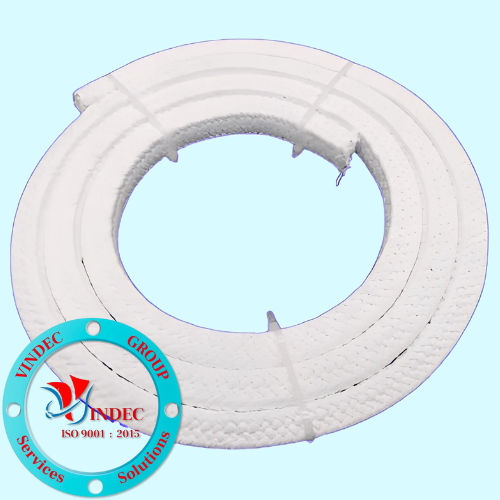

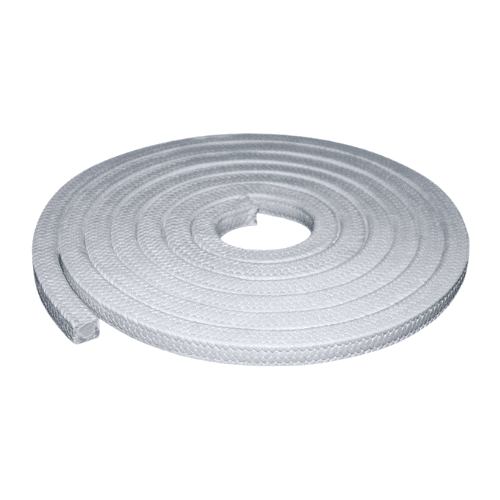

Pure PTFE Packing
- PTFE Braided Packing With Oil : Braided from pure PTFE yarn with lubrication. It is soft, mainly for static sealing and rotating sealing.
- Same as pure PTFE Packing, but treated with special lubrication, designed for dynamic.
- Size : From 4 x 4 mm to 50 x 50mm
- Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10 kg, other weight on request; as precut length.
Technical Pure PTFE Packing
- Pressure Range
+ Rotating: 15 bar
+ Reciprocating: 100 bar
+ Static: 200 bar
- Shaft speed: 10 m/s
- Density: 1.6g/cm3
- Temperature:－150 to +260 Deg.C
- PH range: 0 ~ 14
Application of Pure PTFE Packing
- Universal, suitable for valves, pumps and agitators in most mediums.
