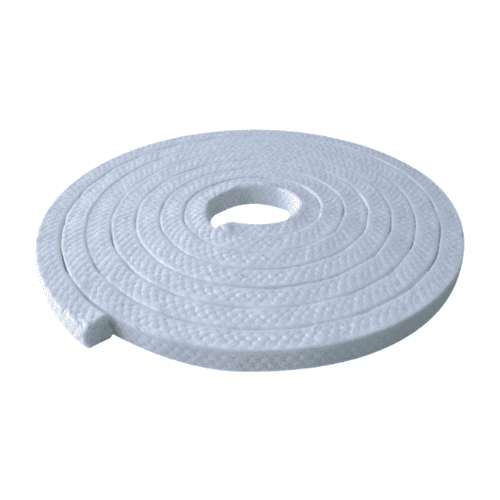

Pure PTFE Gland Packing

  • Material: Pure PTFE

  • Pressure Range

    • - Rotating: 35 bar

    • - Reciprocating: 100 bar

    • - Static: 200 bar

  • Density (in Grams/CC): 1.3 to 1.8 (g/cm³)

  • Velocity: 5 to 12Mtrs/sec

  • Temperature:-200 to +260 Deg.C

  • PH range: 0 ~ 14

  • Size : From 4x 4mm to 50 x 50mm

  • Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10kg/box

1. Pure PTFE Teflon® Gland Packing

  • PTFE gland Packing: Braided from pure PTFE yarn without any lubrication. It is soft, mainly for static sealing.

  • PTFE packing is used in high purity and corrosion resistance is required, it is widely used in food industries, the pharmaceutical industry. It can be braided with silicone rubber core to control leakage.

  • Pure Teflon® packing rope is Flexible, almost completely chemical inertia, dimensional stable, low coefficient of friction and excellent resistance to compression. It is suitable for all the chemical compound, alternative & rotary motions shafts, rods, piston valves, steam, expansion joints. It is a Braided Packing made of pure P.T.F.E. Yarns.

2. Technical Pure PTFE Teflon® Packing

  • Pressure Range

    • - Rotating: 35 bar

    • - Reciprocating: 100 bar

    • - Static: 200 bar

  • Density (in Grams/CC): 1.3 to 1.8 (g/cm³)

  • Velocity: 5 to 12Mtrs/sec

  • Temperature:-200 to +260 Deg.C

  • PH range: 0 ~ 14

  • Size : From 4x 4mm to 50 x 50mm

  • Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10kg/box

3. Key Features of Pure PTFE Teflon® Packing

  • Pure PTFE Packing : Braided from pure PTFE yarn without any lubrication. It is non-contaminating packing.

  • Pure PTFE Packing with Oil: Braided from the PTFE yarn which with special lubrication, designed for dynamic.

  • PTFE Filament Packing: Braided from sintered and high stretched PTFE multifilament yarns. Within PTFE impregnation. Good resistance to compression and extrusion, high structural and cross-sectional density.

4. Application of Pure PTFE Teflon® Packing

  • Designed for valves and lower shaft speed applications under medial pressure in food processing, pharmaceuticals, paper mills, fiber plants where high purity and corrosion resistance is required.

  • It is a cost-effective replacement of PTFE impregnated asbestos packings. PTFE 100% square packing is a self-lubricating, chemically inert, non-toxic, and a non-hazardous material. It is very flexible packing and provides more efficient sealing with very low friction characteristics. This packing can be used against corrosive chemicals, solvents, oils and petroleum by products and oxygen service widely used for water handling equipments, liquid oxygen pumps, valves etc.
