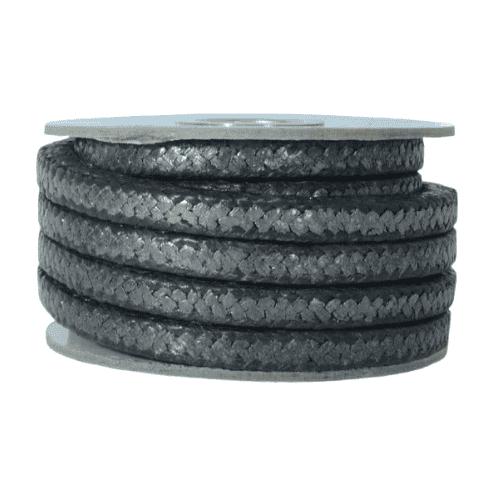

Flexible Graphite with Carbon Corner Packing
Flexible graphite with carbon corner gland packing is lattice braided as is the carbon achieving maximum strength. Extrusion is a thing of the past due to the binding effect of the lattice braided carbon zebra. It is a high strength packing, resists extrusions, It is ideally suited to the high end valve packing areas.
Graphite packing with carbon fiber corners is a multi-fiber packing,braided from expanded graphite yarns and carbon fibers, the diagonally braided from graphite yarn, reinforced in all four corners with carbon fibers.
The corners and body make the packing three times more resistant to extrusion and increase the pressure handing capabilities compared to traditional graphite packings.
Technical Data
Material: 100% Expanded Graphite Yarn
Temperature Range:
- Temperature (Atmosphere): -200 up to + 555 Deg.C
- Temperature (in Steam): -200 up to +650 Deg.C in Steam
Pressure range:
- Pressure (Rotating): 3Mpa
- Pressure (Reciprocating): 10Mpa
- Pressure (Valves ): 28Mpa
Shaft Speed: 18m/s in rotary
PH range: 0~14
Density: 1.5 g/cm3
Size;: 4x4mm to 50x50mm
Key Features
Carbon Reinforced Corners: Improves structural strength and extrusion resistance.
High Temperature Stability: Performs reliably in severe thermal conditions.
Low Friction Performance: Minimizes shaft wear and reduces energy loss.
Excellent Pressure Resistance: Maintains sealing under demanding operating loads.
Enhanced Wear Protection: Suitable for abrasive and continuous-duty service.
Efficient Heat Transfer: Helps dissipate generated heat during operation.
Reliable Leak Control: Supports stable sealing performance over time.
Long Service Life: Reduces maintenance frequency and downtime.
Application
Can be used in many demanding applications, both dynamic and static.
Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
