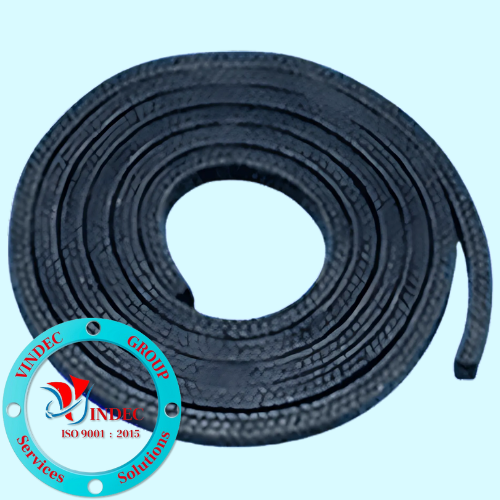

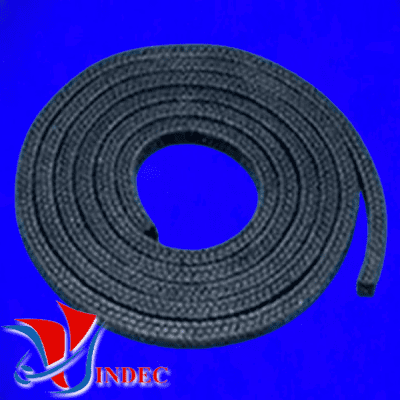

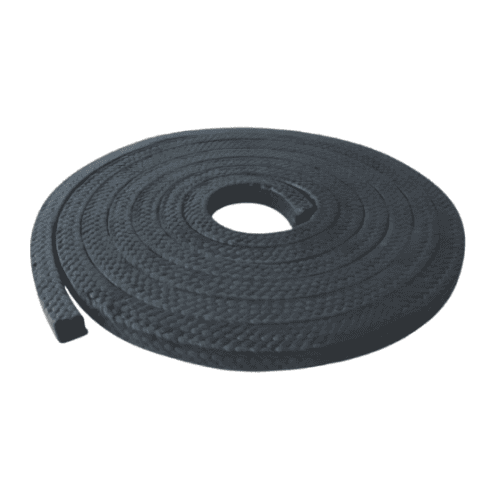

Carbon Fiber with Impregnated Graphite Gland Packing
Carbon fiber packing is Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage. The Inconel wire reinforcement provides increased mechanical strength, usually for static.
Carbonized packing with graphite is widely used with revolving of reciprocating pumps,where media of chemical corrosion and grains of particles exist.
Technical Data
Material: Carbon Fiber, graphite
Temperature Range: -50 ~ +650 °C
Pressure range: Max. 200 Kg/cm2
Pressure Rotating: 20 bar - 25m/s
Pressure Reciprocating: 100 bar - 20m/s
Pressure Static: 200 bar - 20m/s
Shaft Speed: 25 Mtrs/sec
PH range: 2~12
Density: 1.2 ~ 1.4g/cm3
Size;: 4x4mm to 50x50mm
Key Features
Carbon Reinforced Performance: Improves strength and resistance to mechanical stress.
Graphite Enhanced Lubrication: Supports smoother sealing and lower operating friction.
Excellent Thermal Endurance: Maintains performance in elevated temperature conditions.
High Wear Durability: Suitable for continuous and demanding industrial operation.
Stable Under Pressure: Delivers consistent sealing in variable load environments.
Efficient Heat Management: Helps reduce heat accumulation during service.
Reliable Chemical Resistance: Compatible with steam, oils, and process media.
Extended Equipment Reliability: Supports longer service intervals and reduced downtime.
Applications
Used in weak acids and alkalis or media containing few grains of solid particles
Both dynamic and static
Main used for centrifugal pumps, plunger pumps, mixers and valves.
