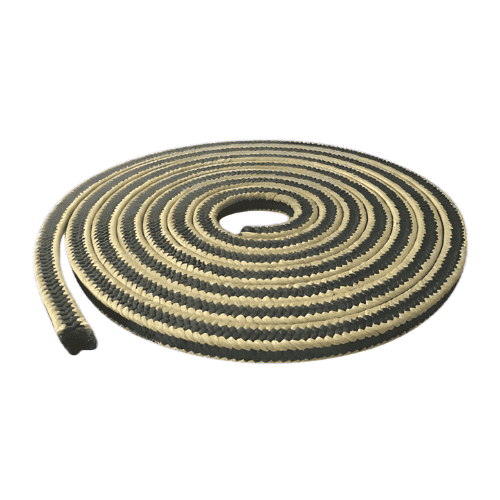

Graphite PTFE Packing with Aramid Corners
This packing is a multi-yarns packing. The corners of packing are made of aramid fiber yarns impregnated with graphite PTFE, the friction faces are made of graphite PTFE yarns. This structure enhances the lubrication ability of aramid fiber and improves the strength of the pure graphite PTFE.
Graphite PTFE Packing with combines aramid fiber corners is a multi-yarn packing, the corners of packing are made of aramid fiber yarns. Impregnated with PTFE, the friction faces are made of graphite PTFE yarns. It can be lubricated with silicones oil.
Enhances the lubrication ability of aramid fiber and improves the strength of PTFE
The packing will no stain in pulp and paper mill, pharmaceutical, food and sugar industries.
Technical Date
Materials: gPTFE, Aramid
Pressure Range:
- Rotating: 25 bar
- Reciprocating: 150 bar
- Static: 200 bar
Shaft speed: 15 m/s
Density: 1.5 g/cm3
Temperature: -150 up to +280 oC
PH range: 2 ~ 12
Size : From 4 x 4mm to 50 x 50mm
Packaging standard: in coils of 1kg, 2kg, 3kg, 5kg to 10kg/box
Key Features
Reinforced Corner Design: Aramid corners improve resistance to extrusion and edge wear.
Low Friction Sealing: Graphite PTFE composition supports smoother equipment operation.
Excellent Abrasion Protection: Performs effectively in demanding and abrasive environments.
High Mechanical Stability: Maintains sealing integrity under variable loads.
Enhanced Chemical Resistance: Suitable for a broad range of industrial fluids.
Improved Thermal Reliability: Supports stable operation under elevated temperatures.
Reduced Leakage Risk: Delivers efficient sealing in dynamic applications.
Extended Service Performance: Helps minimize maintenance and increase operating uptime.
Application
This is a universal packing which can be used for pumps in all types of industry.
Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
Power stations
