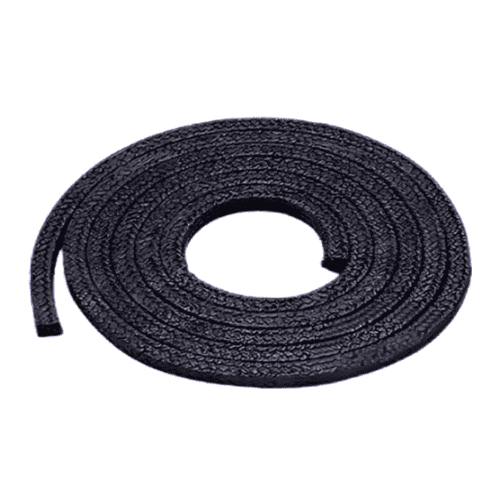

Pure Carbon Fiber Packing

  • Material: 100% Pure carbon fiber

  • Temperature Range: -240 to +600 Deg.C

  • Pressure range: 200 Kg/cm2

  • Pressure max: 300 Bar

  • Shaft Speed: 20 Mtrs/sec

  • PH range: 0~14

  • Density: 1.5 g/cm3

  • Size;: 4x4mm to 50x50mm

  • Packing standard: 1kg, 2kg, 5kg or 10kg/box

Pure Carbon Fiber Packing

  • Pure Carbon an Interbraid multiservice carbon filament packing for pumps and valves. It is a special packing with low friction characteristics adapted easily and quickly into the equipment and requires only occasional gland adjustments.

Technical Carbon Gland Packing

  • Material: 100% Pure carbon fiber

  • Temperature Range: -240 to +600 Deg.C

  • Pressure range: 200 Kg/cm2

  • Pressure max: 300 Bar

  • Shaft Speed: 20 Mtrs/sec

  • PH range: 0~14

  • Density: 1.5 g/cm3

  • Size;: 4x4mm to 50x50mm

  • Packing standard: 1kg, 2kg, 5kg or 10kg/box

Different Type of Carbon Gland Packing

  • Pure carbon packing, carbon impregnated PTFE Packing and carbon impregnated graphite packing

Key Features of Carbon Gland Packing

  • Without cooling it can be used with hot water up to 160 deg.C, with cooling up to 207 deg.C.

  • Does not damage shafts and has long life

  • Excellent self-lubrication

Application of Pure Carbon Fiber Packing

  • Its heat sinking ability makes this packing an ideal seal in high speed rotary equipment, sealing against boiler feed water, steam, oils, aromatic aliphatic solvents, acids and alkalis except fluorine, oleum, fuming nitric acid and aqua regia.
