ASBESTOS GASKET SHEET

What is A Asbestos Gasket Sheet ?

- What is an asbestos gasket ? Asbestos gaskets are made of asbestos, rubber, and heat-resistant filling materials by rolling. They are mainly used as sealing materials for pipeline flanges, high-pressure vessel flanges, internal combustion engines and various contact surfaces.

Technical Asbestos Gasket Sheet

- Materials: Silicat kép của Can xi (Ca), Magie (Mg) chứa SiO2

- Binder: NBR rubber, EPDM rubber, reinforced wire...

- Density: 1.70 - 2.20 (g/cm³)

- Temperature max : 150 - 580°C

- Pressure range: 0.8Mpa - 140Mpa

- Size: 1270 x 1270 / 1500 x 1500 / 2000 x 1500 / 4100 x 1500mm

- Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0mm

- Origin: Ấn độ, China

- Import and Supplier: VINDEC

GIOĂNG AMIANG

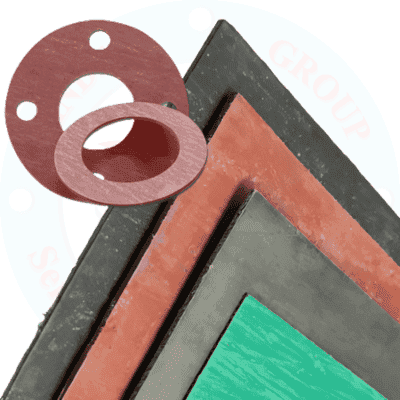

Different Type of Asbestos Fiber Sheet

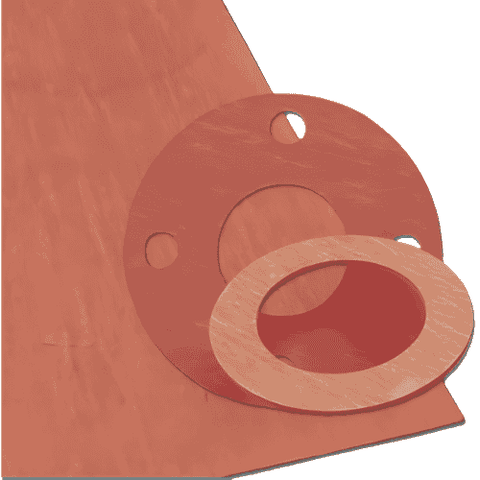

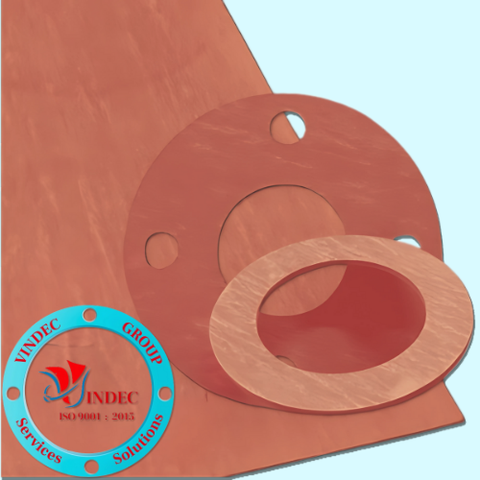

• Asbestos Rubber Sheets

- Made of asbestos Fibre, rubber and heat-resisting packing material, compressing it to thick paper.

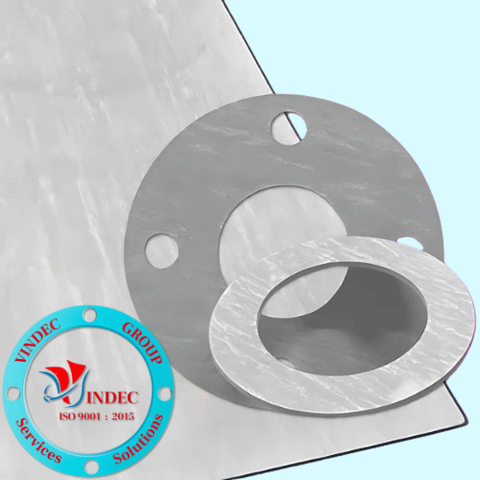

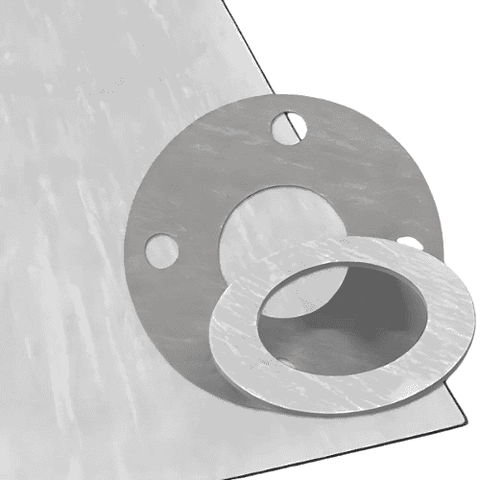

• Acid-Resistance Asbestos Sheets

- Made of good asbestos Fibre with acid-resistance synthetic rubber compression heating and compression molding it.

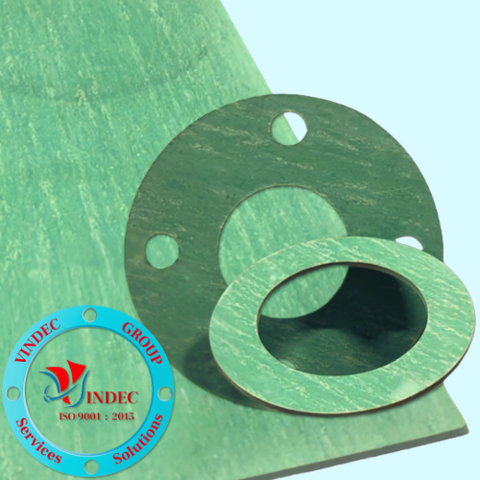

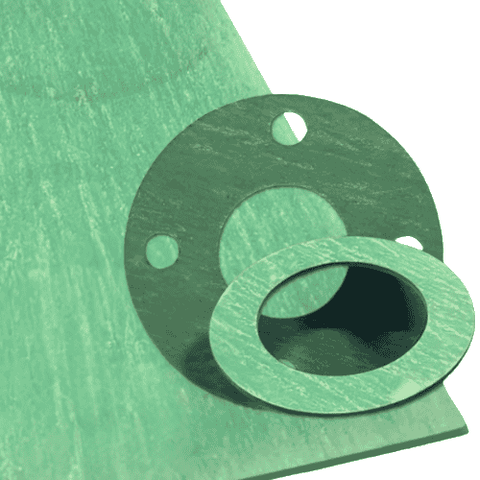

• Oil-Resistance Asbestos Sheets

- Made of good long asbestos Fibre, oil-resistance synthetic rubber, heat-resisting packing material compound heating and compression molding it and used as sealing material in the joints of oil pipeline and sealing gasket used on automobiles motorcvcles, agricultural machines, engineering machinery engines

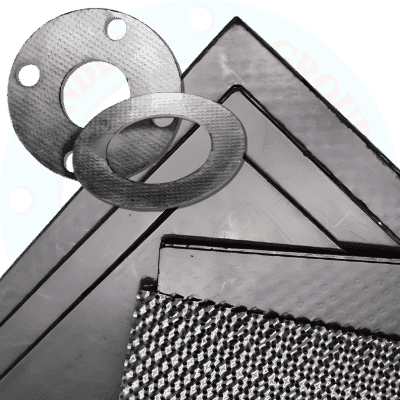

• Asbestos Fiber With Graphite Sheet

Made of good asbestos Fibre coated with graphite on the surface

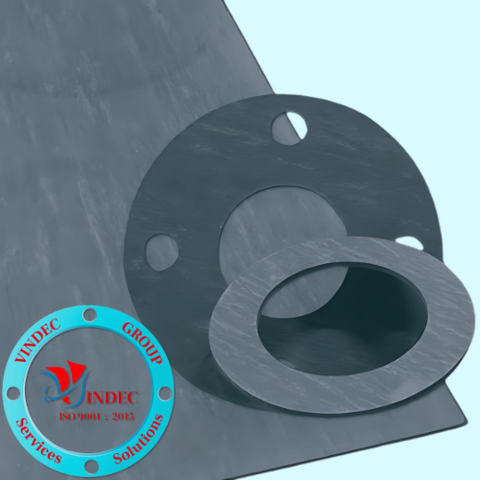

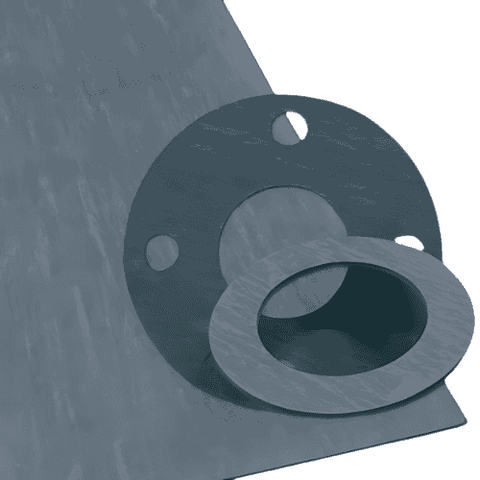

• Asbestos Fiber With Wire Net Inserted

- Made of good asbestos Fibre rubber with steel wire inserted and compound heating and compression molding it (can be coated with graphite on the surface).

Applications of Asbestos Gasket Sheet

Key Features of Asbestos Gasket Sheet

- According to the purpose of the sheet, it is divided into ordinary asbestos rubber gasket, wire mesh reinforced asbestos rubber gasket, oil-resistant asbestos rubber gasket, and acid-resistant asbestos rubber gasket.

- Ordinary gasket plates are suitable for sealing of general plumbing equipment, low, medium and high-pressure water pipes and steam pipes.

- Reinforced asbestos rubber gaskets are suitable for sealing water, steam and other media.

- An oil-resistant asbestos rubber sheet is suitable for the flange joints of oil refining equipment and distillation pipelines, and the sealing gaskets at the joints of automobile diesel engines and oil pipelines.

- Acid-resistant asbestos rubber gaskets are suitable for sealing gaskets in acid media.

Gia Công Gioăng Amiang VINDEC

- Từ các dạng tấm bìa gioăng không amiang như trên chúng ta có thể gia công tạo hình sản phẩm theo kích thước theo tiêu chuẩn: ANSI, JIS, DIN, BS...

- DIN tiêu chuẩn Đức: Gioăng FF/RF, Hệ DIN/PN (PN6, PN10, PN16, PN25, PN40, PN64)

- JIS tiêu chuẩn Nhật Bản: Gioăng FF/RF Hệ JIS (JIS 5, JIS 10, JIS 16, JIS 20, JIS 30)

- ANSI tiêu chuẩn Mỹ: Gioăng RF/FF hệ ASME/ANSI B16.5 Class 150,  300, 600, 900, 1500, 2500#.

- Ngoài ra còn theo kích thước phi tiêu chuẩn kèm bản vẽ: Theo yêu cầu đặt làm của khách hàng như vành khăn, Oval, Elip, Manhole, Hình vuông...
