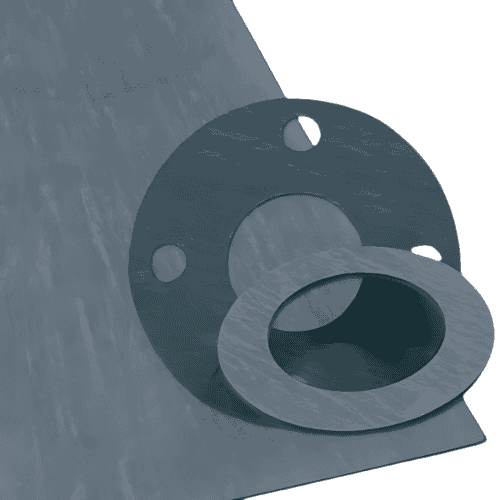

Wire Reinforced Asbestos Gasket Sheet

Asbestos Rubber Sheet With Wire Net Inserted

- Material: Made of good asbestos Fibre rubber with steel wire inserted and compound heating and compression molding it (can be coated with graphite on the surface).

- Uses: used in flange joins of pipeline of water, steam, air, gas, etc.

- Max working temperature: 450℃,  Working pressure: 8 Mpa

- Steam Airtightness: with the temperature of 440-450℃ and the pressure of 13 - 14MPa, Keep for 30 min without puncture

- Sizes:

• 4100 x 1500 x (1.2 – 6.0)mm,  2000 x 1500 x  (1.2– 6.0)mm,

• 1500 x 1360 x (1.2– 6.0)mm,  3810 x 1270 x (1.2– 6.0)mm

• 1270 x 1270 x (1.2– 6.0)mm,  1500 x 1500 x (1.2 – 6.0)mm

JXB-450 Asbestos Rubber Sheets With Steel Wire Net Strengthening (coated with graphite)

- Material: Made of good asbestos Fibre rubber with steel wire inserted and compound  heating and compression molding it (can be coated with graphite on the surface).

- Max working temperature: 450℃

- Working pressure: 8 Mpa

- Application: used in flange joins of pipeline of water, steam, air, gas, etc.

- Dimension standard:

+ Thickness: 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm

+ Size: 1270 x 1270 mm

+ Size: 1360 x 1500 mm

+ Size: 1500 x 1500 mm

+ Size: 1500 x 2000 mm

+ Size: 1500 x 3810 mm

+ Size: 1500 x 4100 mm
