Forged Steel Fittings

- Welcome to buy from VINDEC our forged pipe fittings. We are supplier: Forged Stainless Steel Fittings, Forged Steel Socket Weld Fittings, Forged Steel High Pressure Fittings,  Forged Steel Threaded Fittings...

- Our stainless steel and carbon steel ANSI Forged Fittings are available for 2000lbs, 3000lbs, 6000lbs, 9000lbs Socket Weld as well as Threaded End - NPT, PT or other types, mainly in stainless steel 304/304L & 316/316L and carbon steel from 1/8" (DN6) up to 4" (DN100).

- Other various grades such as 304H, 309S, 309H, 310S, 310H, 316TI, 316H, 316LN, 317, 317L, 321, 321H, F11, F22, F91, 347, 347H, 904L are available too.

- In addition to this, our Pipe Fittings, Forged Fittings, Stainless Fittings, Steel Fittings, Elbow Fittings, Weld Fittings, High Pressure Fittings, Thread Fittings, socket weld, 3000 fitting are in compliance with the set industry standards like ASTM/ASME A/SA 182, ASTM/ASME A/SA 312, ASTM/ASME A/SA 403, ASTM/ASME A/SA 105, ASTM/ASME A/SA 350 LF2, ASTM/ASME A/SA 106, ASTM/ASME A/SA 234.

- Phụ Kiện Hàn Áp Lực cao - forged fittings: loại ren- threaded forged và hàn lồng- socket weld forged thép rèn A105- inox A182, Ansi class 2000#, 3000, 6000, 9000

_____________________________________________

Technical Forged Steel Fittings

_____________________________________________

Materials of Forged Steel Fittings

• Forged Nickel Alloy Fittings

- ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

- ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )

- ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

• Forged Copper Alloy Fittings

- ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.

- ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

• Forged Stainless Steel Fittings

- ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.

• Forged Duplex Steel Fittings

- ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

• Forged Carbon Steel Fittings

- ASTM / ASME A 105.

- ASTM / ASME A 350 LF 2.

• Forged Alloy Steel Fittings

- ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.


_____________________________________________

Types of Forged Steel Pipe Fittings

• Forged Steel Threaded Fitting

- Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

- Pressure : 2000LBS, 3000LBS, 6000LBS

- Connection end: Threaded End - NPT, PT

- Size : 1/8"~4" (DN6~DN100)

_____________________________________________

• Forged Steel Socket Weld Fitting

- Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

- Pressure :  3000LBS, 6000LBS, 9000LBS

- Connection end: Socket Weld ends

- Size : 1/8"~4" (DN6~DN100)

_____________________________________________

Types of Name Forged Steel Fittings

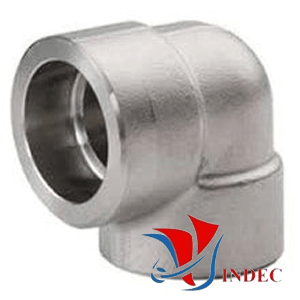

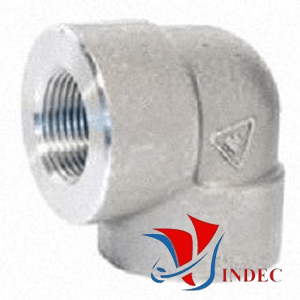

• 90° Forged Steel Elbow

_____________________________________________

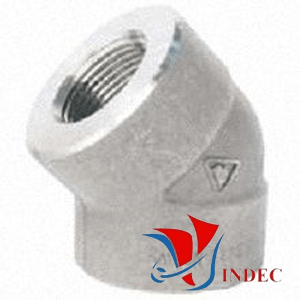

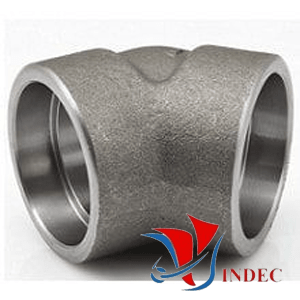

• 45° Forged Steel Elbow

_____________________________________________

• Forged Steel Street Elbow

_____________________________________________

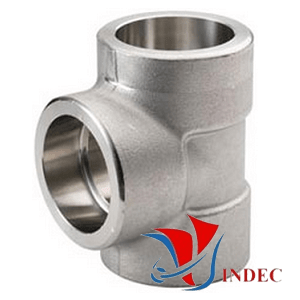

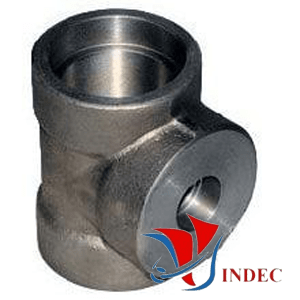

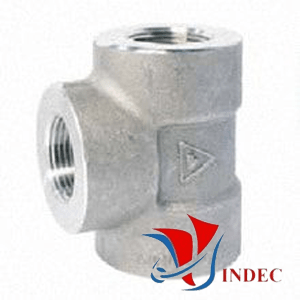

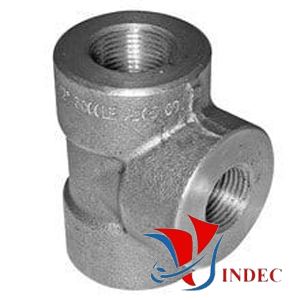

• Forged Steel Tee

_____________________________________________

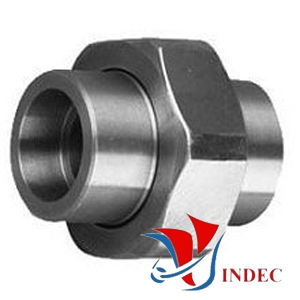

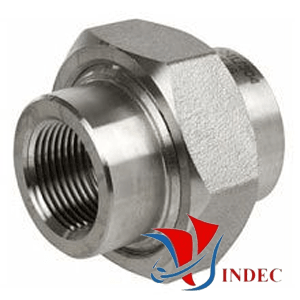

• Forged Steel Union

_____________________________________________

• Forged Steel Cross

_____________________________________________

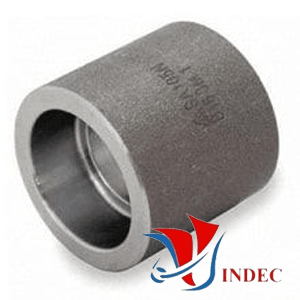

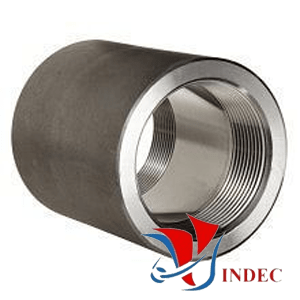

• Forged Steel Pipe Coupling

_____________________________________________

• Forged Steel Half Coupling

_____________________________________________

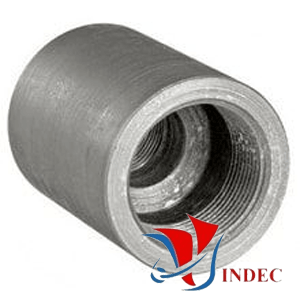

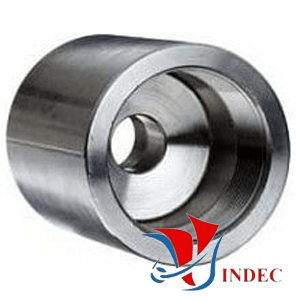

• Forged Steel Reducing Coupling

_____________________________________________

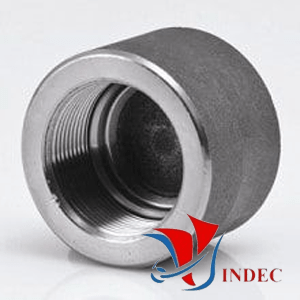

• Forged Steel Pipe Cap

_____________________________________________

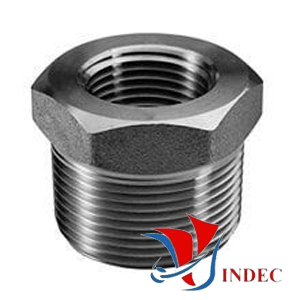

• Forged Steel Hex. Head Bushing

_____________________________________________

• Forged Steel Hex. Head Plug

_____________________________________________

• Forged Steel Square Head Plug

_____________________________________________

• Forged Steel Round Head Plug

_____________________________________________

• Forged Steel Bull Plug

_____________________________________________

• Forged Steel Welding Boss

_____________________________________________

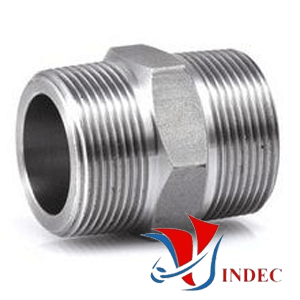

• Forged Steel Hexagon Nipple

_____________________________________________

• Forged Steel Reducing Hexagon Nipple

_____________________________________________

• Forged Steel Barrel Nipple

_____________________________________________

• Forged Steel Welding Nipple

_____________________________________________

• Forged Steel Swage Nipple

_____________________________________________

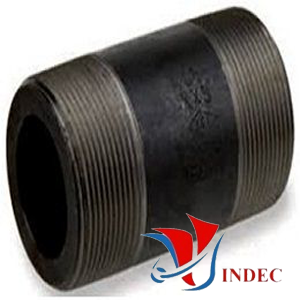

• Forged Steel Pipe Nipple

_____________________________________________

• Forged Steel Parallel Nipple

_____________________________________________

• Forged Steel Hose Nipple

_____________________________________________

• Forged Steel Hexagon Nut

_____________________________________________

• Forged Steel Bend, Adapter

_____________________________________________

• Forged Steel Insert

_____________________________________________

• Forged Steel Outlet

_____________________________________________

• Forged Steel Welding Outlet

_____________________________________________

• Forged Steel Weldolet

_____________________________________________

• Forged Steel Elbowolet

_____________________________________________

• Forged Steel Socketolet

_____________________________________________

• Forged Steel Threadolet

_____________________________________________

• Forged Steel Nipolet and Letrolet.

_____________________________________________

Standard Specification of Forged Steel Fittings

Forged High Pressure Fittings socket welding or NPT threaded, forged to ASTM/ASME A/SA 182 and ASTM/ASME A/SA 105, A350 LF2, 2000lbs, 3000lbs, 6000lbs or 9000lbs, white pickled, ANSI B16.11, MSS SP-79, 83, 95, 97 and BS3799, hardness to NACE MR0175-latest edition, IC to ASTM A262 E, certificate to EN10204/3.1.

_____________________________________________

Applications of Forged Steel Fittings

The applications range from chemical, petro chemical, power generation.

We are regularly supplying these items to many leading industrial Units like: Refineries & Petrochemicals, Oil & Gas, Chemicals & Fertilizers, Cement, Engineering, Construction, Sugar, Nuclear & Thermal, Paper & pulp, Ship Building, Power, Pharmaceutical.

_____________________________________________

Báo Giá Phụ Kiện Thép Rèn VINDEC

_____________________________________________

Mua Phụ Kiện Thép Rèn VINDEC

- VINDEC là địa chỉ phân phối Phụ Kiện Hàn uy tín tại Việt nam có thể làm hài lòng khách hàng với năng lực đội ngũ nhân viên có kỹ thuật trình độ kỹ thuật cao, được đào tạo chuyên nghiệp bài bản của hãng.

- Quý khách hàng có thể tìm kiếm hoặc Download về máy Catalogue của chúng tôi với thông số kỹ thuật rõ ràng chính xác nhất của hãng tại: Phụ Kiện Hàn

- Thêm vào đó, VINDEC chúng tôi có Kho Hàng tại Hồ Chí Minh và có Kho Hàng + Xưởng Sản Xuất với diện tích trên 2.000m2 tại Hà Nội.

- VINDEC với năng lực và kinh nghiệm trên 12 năm cùng với đội ngũ kỹ sư giầu chuyên môn, chúng tôi tự đáp ứng được các dự án lớn về hàng Phụ Kiện Hàn Tại Việt Nam, chúng tôi luôn đồng hành cùng phát triển.

Admin: VINDEC
