CARBON FIBER GLAND PACKING
Carbon Fiber Gland Packing is a high-performance compression sealing material manufactured from continuous carbon fibers braided into square or interlock constructions and often impregnated with graphite, PTFE, lubricants, or special blocking agents to improve sealing performance.
Carbon fiber packing is engineered for applications involving high temperature, elevated pressure, aggressive chemicals, and demanding mechanical conditions. Compared with conventional packing materials, it offers superior thermal conductivity, dimensional stability, wear resistance, and long service life.
Due to its excellent sealing reliability, Carbon Fiber Gland Packing is widely used in industrial pumps, valves, agitators, steam systems, power plants, petrochemical facilities, and process industries.
TECHNICAL DATA
Material: Braided Carbon Fiber
Lubrication: Graphite / PTFE / Special Treatment
Construction: Square Braided / Interlock Braided
Color: Black
Density: Approx. 1.20–1.50 g/cm³
Operating Temperature: -200°C to +650°C*
Steam Service Temperature: Up to 650°C*
Pressure Capability: Up to 300 bar*
Shaft Speed: Up to 20 m/s*
pH Range: 1–13
Size: 4mm to 50 mm
Packing standard: 1kg, 2kg, 5kg, 10kg/ box
*Actual values depend on packing design and service conditions.
KEY FEATURES OF CARBON PACKING
Excellent High Temperature Resistance: Maintains sealing performance under elevated thermal conditions.
Superior Mechanical Strength: Carbon fiber construction provides excellent structural stability.
Outstanding Chemical Resistance: Suitable for a wide range of industrial media and process environments.
Excellent Thermal Conductivity: Helps dissipate heat and improve sealing stability.
Low Friction Characteristics: Reduces shaft wear and extends equipment operating life.
High Pressure Capability: Performs effectively in demanding industrial service.
Excellent Dimensional Stability: Maintains packing integrity under continuous compression.
Long Service Life: Reduces maintenance frequency and operational downtime.
DIFFERENT TYPES OF CARBON PACKING

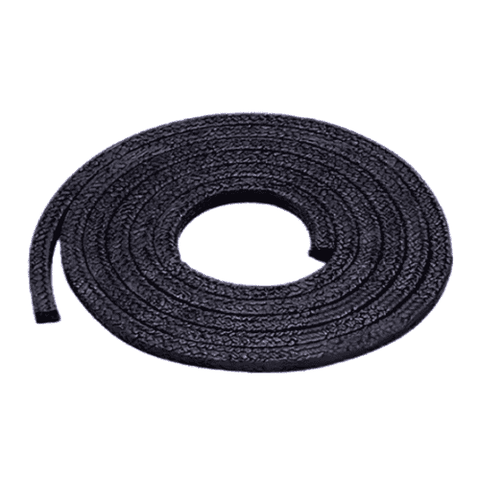

Pure Carbon Fiber Packing
Manufactured entirely from braided carbon fibers.
Features: Excellent thermal stability. Good chemical resistance
Applications: High-temperature valves. Industrial pumps
Graphite Impregnated Carbon Fiber Packing
Carbon fibers treated with graphite lubrication.
Features: Lower friction, improved heat transfer, enhanced sealing performance
Applications: Steam systems. Power generation equipment
PTFE Impregnated Carbon Fiber Packing
Carbon fiber braided packing with PTFE treatment.
Features: Improved chemical compatibility, reduced wear
Applications: Chemical processing. process pumps
Reinforced Carbon Fiber Packing
Carbon fiber combined with strengthening structures.
Features: Higher pressure capability, increased durability
Applications: Severe industrial service
Carbon Graphite Hybrid Packing
Combination of carbon fiber and flexible graphite.
Features: Excellent sealing performance, improved compression recovery
Applications: Refinery systems. Petrochemical facilities
Lubricated Carbon Fiber Packing
Carbon packing treated with special lubricants.
Features: Reduced shaft friction, Longer operating life
Applications: Rotary equipment. Continuous process systems
APPLICATIONS OF CARBON PACKING
Centrifugal Pumps
Industrial Valves
Steam Systems
Boilers and Thermal Equipment
Petrochemical Plants
Oil & Gas Facilities
Power Generation Equipment
Heat Exchangers
Refinery Processing Systems
Chemical Industries
Agitators and Mixers
Industrial Process Equipment
CONCLUSION
Carbon Fiber Gland Packing is an advanced industrial sealing solution developed for high-temperature and demanding service conditions. With excellent thermal resistance, mechanical strength, and chemical compatibility, it delivers long-term sealing performance while reducing maintenance and improving equipment reliability.
