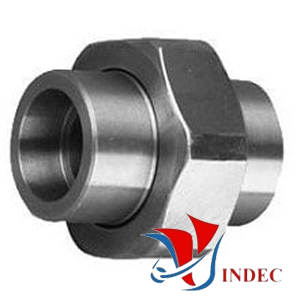

Forged Steel Socket Weld Union
- Standard : Forged High Pressure Fittings socket welding: Forged to ASTM/ASME A/SA 182 and ASTM/ASME A/SA 105, A350 LF2, 2000lbs, 3000lbs, 6000lbs or 9000lbs, white pickled, ANSI B16.11, MSS SP-79, 83, 95, 97 and BS3799, hardness to NACE MR0175-latest edition, IC to ASTM A262 E, certificate to EN10204/3.1.
- Size: 1/8"~4" (DN6~DN100)
- Material of Stainless Steel: ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
- Material of Carbon Steel : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
- Dimension : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
- Pressure : 3000Lbs, 6000Lbs, 9000Lbs
- Size : 1/8"~4" (DN6~DN100)
- Working media: Water, steam, Oil, Gas, Chemical...
- Application: Waterworks, Heat exchangers, Power plants, Oil, gas drilling, chemical, Waterworks
- Origin: China, Taiwan, Korea ,Japan, India, EU, USA, Malaysia
