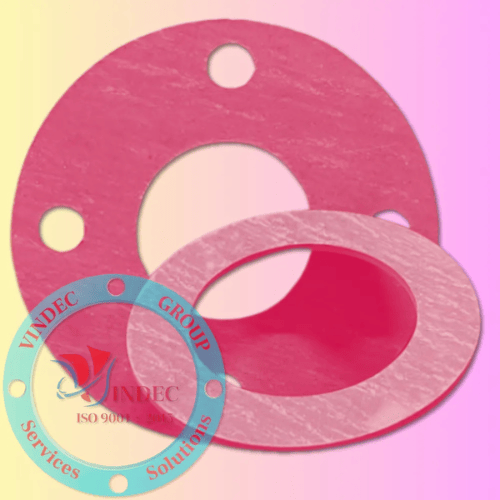

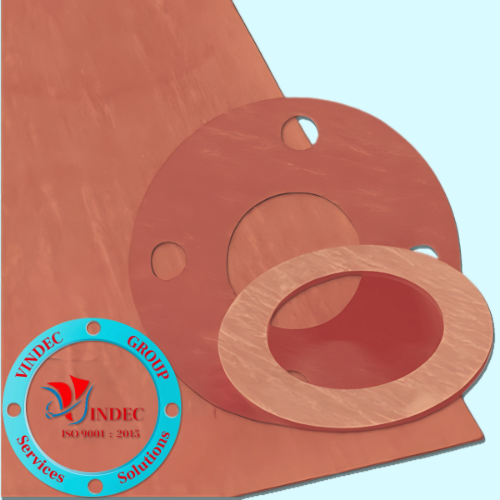

Heat-Resistant Asbestos Gasket Sheet

WHAT ARE ASBESTOS FIBER RUBBER SHEETS

Asbestos rubber sheet is made from selected asbestos fibre, natural rubber, filling material and dye. It can be made for asbestos rubber gaskets.

Asbestos rubber Sheet is made from selected asbestos fibre, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.

MATERIAL OF ASBESTOS RUBBER SHEETS

Made of asbestos Fibre, rubber and heat-resisting packing material, compressing it to thick paper.

TECHNICAL DATA OF ASBESTOS RUBBER SHEETS

Working pressure : 0.8 Mpa - 7Mpa

Max working temperature: 150℃ - 510℃

Density : 1.6 ~ 2.0 g/cm3

Available color: Purple, red, black, grey etc.

Available with tin steel, copper, SS304 etc. wire mesh insertion

Also available with anti-stick or graphite coating

DIMENSIONS OF ASBESTOS RUBBER SHEETS

Thickness Asbestos Rubber Sheets: 0.3mm, 0,5mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm

Size of Asbestos Rubber Sheets:

4600 x 1500 mm，4100 x 1500 mm

3800 x 2700 mm，2000 x 1500mm

1500 x 1360mm, 3810 x 1270mm

1270 x 1270mm, 1500 x 1500mm

APPLICATIONS OF ASBESTOS RUBBER SHEETS

Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline

Resistance to media: Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure.
