Lens Ring Joint Gasket

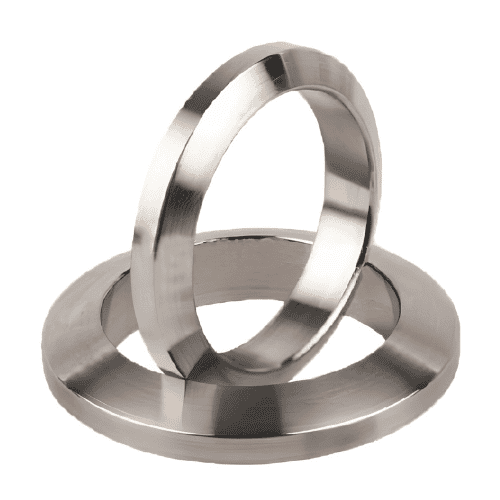

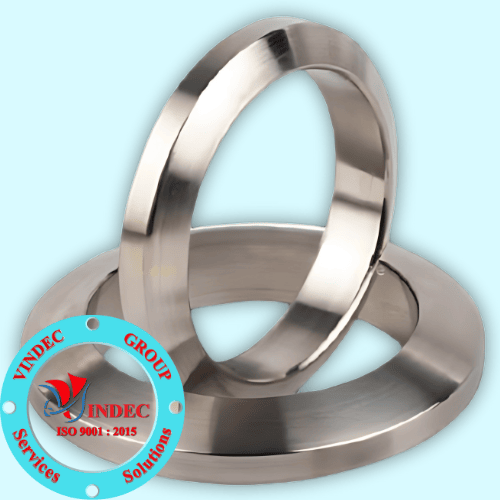

A Lens Ring Joint Gasket is a precision-engineered metal-to-metal sealing gasket designed for extreme pressure and high temperature applications. Featuring a curved lens-shaped sealing surface, this gasket creates a highly concentrated sealing load that ensures exceptional leak tightness under demanding operating conditions.
Lens Ring Joint Gaskets are commonly installed between specially machined flanges and are widely used in oil & gas, petrochemical, chemical processing, power generation, and high-pressure industrial systems. Their robust metallic construction provides excellent long-term reliability, resistance to thermal cycling, and minimal maintenance requirements.
Technical Data of Lens Ring Joint Gasket
| Technical Parameter |
Specification |
| Gasket Type |
Lens Ring Joint Gasket |
| Design Standard |
DIN 2696 / Custom Design |
| Sealing Type |
Metal-to-Metal Contact |
| Gasket Profile |
Lens Shape |
| Material Options |
Carbon Steel, SS304, SS316, Monel, Inconel, Hastelloy |
| Pressure Rating |
Suitable for High Pressure Service |
| Operating Temperature |
Depends on selected material |
| Installation |
Special Lens-Type Flanges |
Key Features of Lens Ring Joint Gasket
- Excellent Sealing Performance: Lens geometry creates concentrated sealing stress for superior leak prevention.
- High Pressure Capability: Engineered to perform reliably in critical pressure applications.
- Outstanding Temperature Resistance: Maintains sealing integrity under elevated temperatures and thermal cycling.
- Superior Mechanical Strength: Metallic construction provides long service life and resistance to deformation.
- Excellent Corrosion Resistance: Available in multiple alloy grades for aggressive chemical environments.
- Reusable Design: Under proper operating conditions, the gasket may support multiple installation cycles.
- Low Maintenance Requirement: Stable sealing performance helps reduce shutdown and maintenance costs.
Applications of Lens Ring Joint Gasket
- Oil & Gas Industry: High-pressure pipelines, wellhead systems, and processing equipment.
- Petrochemical Plants: Flanged connections operating under aggressive media and elevated temperatures.
- Power Generation: Steam systems, turbines, boilers, and pressure vessels.
- Chemical Processing: Equipment handling corrosive fluids and process chemicals.
- Industrial Pressure Systems: Compressors, reactors, and critical sealing assemblies requiring leak-tight performance.
