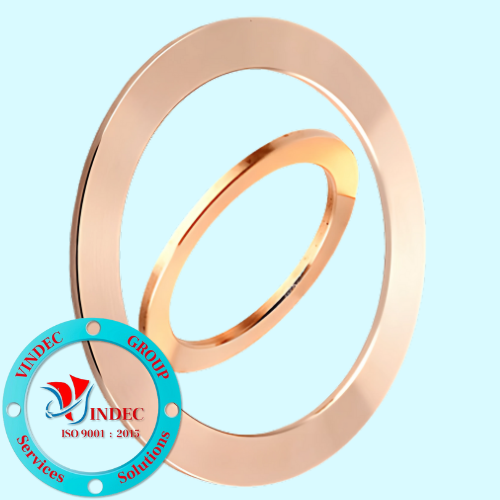

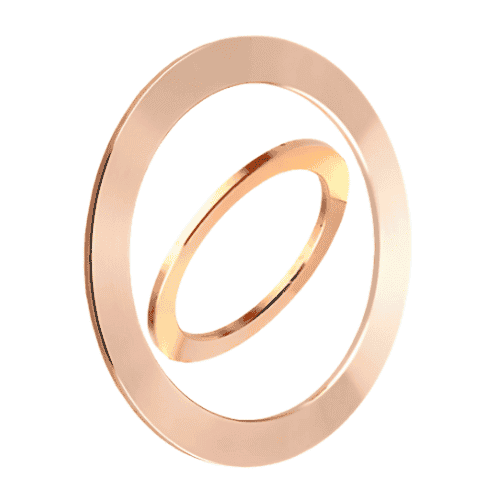

COPPER GASKETS

VINDEC provides a complete range of Copper Gaskets, including Solid Copper Gaskets, Red Copper Gaskets, Brass Gaskets, and Double Jacketed Copper Gaskets. Our sealing solutions are engineered to deliver excellent sealing performance, superior durability, high temperature resistance, and reusability across demanding industrial applications.

Technical Data of Copper Gaskets

Advantages of Copper Gaskets

Copper is widely recognized as one of the most effective gasket materials due to its unique combination of sealing capability and material performance.

• Excellent Conformability: Soft and malleable structure allows perfect adaptation to sealing surfaces, minimizing leakage.
• Outstanding Thermal Conductivity: Efficient heat transfer in high-temperature operating conditions.
• Superior Corrosion Resistance: Maintains long service life under various environmental conditions.
• High Electrical Conductivity: Suitable for electrical and specialized industrial systems.
• Excellent Machinability: Can be fabricated into complex gasket geometries with high precision.

Manufacturing Process of Custom Copper Gaskets

At VINDEC, custom copper gaskets are manufactured using advanced abrasive waterjet cutting technology.

This process utilizes a high-pressure water stream combined with abrasive media to achieve accurate and clean cutting for copper, brass, stainless steel, and aluminum materials.

Key capabilities include:

• Precision cutting and profiling
• Hole drilling from Ø0.030" (0.76 mm)
• No thermal distortion
• Excellent dimensional accuracy
• Consistent finished quality

---

TYPES OF COPPER GASKETS

Silver-Plated OFHC Copper Gasket

Silver-plated OFHC (Oxygen-Free High Conductivity) Copper Gaskets are designed for CF flanges from CF16 to CF250.

These gaskets provide:

• Ultra-high vacuum sealing capability
• Operating vacuum down to 10⁻¹³ Torr (10⁻¹¹ Pa)
• Bake-out temperature up to 450°C
• High purity electronic-grade oxygen-free copper

Standard Sizes:
CF16, CF25, CF35, CF50, CF63, CF80, CF100, CF150, CF200, CF250

---

OFHC Copper Gaskets for CF Flanges

Designed specifically for ConFlat (CF) flange systems, these gaskets create leak-tight seals in Ultra-High Vacuum (UHV) environments.

Key characteristics:

• High purity oxygen-free copper
• Extremely low outgassing rate
• Excellent formability
• Wide temperature operating range
• Suitable for scientific and vacuum applications

---

Oxygen-Free Copper Gaskets

Oxygen-Free Copper Gaskets are ideal for applications requiring:

• Ultra-high vacuum sealing
• Superior cleanliness
• Thermal stability up to 450°C
• Excellent mechanical sealing integrity

Commonly used with knife-edge CF flanges.

---

Copper Exhaust Gasket

Copper Exhaust Gaskets are developed for high-performance engines and extreme operating environments.

Main features:

• Manufactured from solid copper sheet
• Precision CNC machined
• Excellent bore and bolt alignment
• No compression loss after installation
• Exceptional resistance to blowout

Applications include:

• Racing engines
• High compression engines
• Automotive performance systems

---

Solid Copper Gasket

Solid Copper Gaskets are manufactured from premium copper sheets and offer:

• Excellent conductivity
• Strong sealing performance
• High durability
• Reusable construction
• Stable operation under elevated temperatures

Applications:

• Oil systems
• Hydraulic connections
• Drain systems
• Industrial equipment
• Agricultural machinery

Typical Operating Data:

• Working Pressure: 2–42 MPa
• Temperature Resistance: Suitable for elevated temperature environments

---

APPLICATIONS OF COPPER GASKETS

Copper Gaskets are widely applied across multiple industries:

• Automotive and motorcycle engines
• Agricultural and heavy machinery
• Generators and compressors
• HVAC systems and refrigeration
• Aerospace and defense industries
• Electronics and electrical equipment
• Heat exchangers and vacuum systems
• Oil & Gas processing facilities
