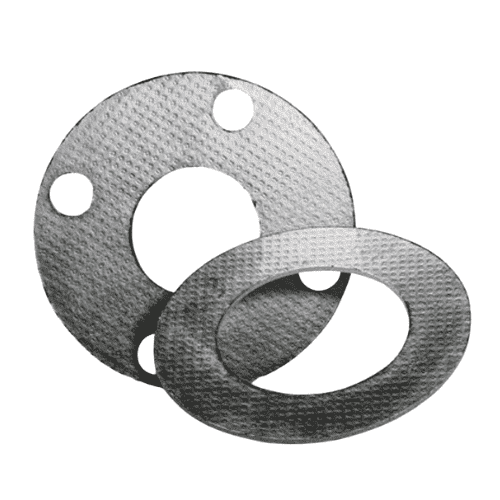

STAINLESS STEEL TANGED GRAPHITE GASKET
A Stainless Steel Tanged Graphite Gasket is a high-performance sealing material manufactured from flexible expanded graphite reinforced with a stainless steel tanged insert. The stainless steel core significantly improves mechanical strength, blowout resistance, and handling stability while maintaining the excellent sealing capability of graphite.
This gasket type is specifically developed for high temperature, high pressure, and critical industrial sealing applications where conventional soft gaskets may fail. Stainless Steel Tanged Graphite Gaskets are widely used in oil & gas, petrochemical, power generation, chemical processing, marine, and industrial piping systems.
TECHNICAL DATA
| Technical Parameter |
Specification |
| Gasket Type |
Stainless Steel Tanged Graphite Gasket |
| Base Material |
Flexible Expanded Graphite |
| Reinforcement Material |
SS304 / SS316 / SS316L Tanged Insert |
| Density |
Approx. 1.0–1.8 g/cm³ |
| Operating Temperature |
-240 up to 450°C, with steam up to 650 °C, under inert conditions up to 1.000°C |
| Maximum Pressure |
Suitable for High Pressure Service |
| pH Range |
0–14 (media dependent) |
| Sealing Type |
Static Industrial Sealing |
KEY FEATURES
High Temperature Resistance: Maintains sealing integrity under extreme thermal conditions and thermal cycling.
Enhanced Mechanical Strength: Stainless steel tanged reinforcement improves dimensional stability and handling durability.
Excellent Chemical Resistance: Compatible with a broad range of industrial chemicals and process fluids.
Superior Blowout Resistance: Reinforced structure increases sealing reliability under pressure fluctuations.
Outstanding Compression Recovery: Delivers consistent sealing performance over repeated operating cycles.
Low Leakage Performance: Flexible graphite adapts effectively to flange surface irregularities.
Long Service Life: Resistant to aging, creep relaxation, and operational wear.
APPLICATIONS
Oil & Gas Industry: Pipelines, refineries, compressors, and pressure vessels.
Power Generation: Steam systems, turbines, heat exchangers, and boilers.
Chemical & Petrochemical Plants: Processing lines with aggressive media and elevated temperatures.
Marine & Offshore Systems: High-reliability flange sealing in harsh operating environments.
Industrial Manufacturing: Pumps, valves, reactors, and static sealing equipment.
Steel & Heavy Industry: Applications requiring heat resistance and long-term sealing stability.
