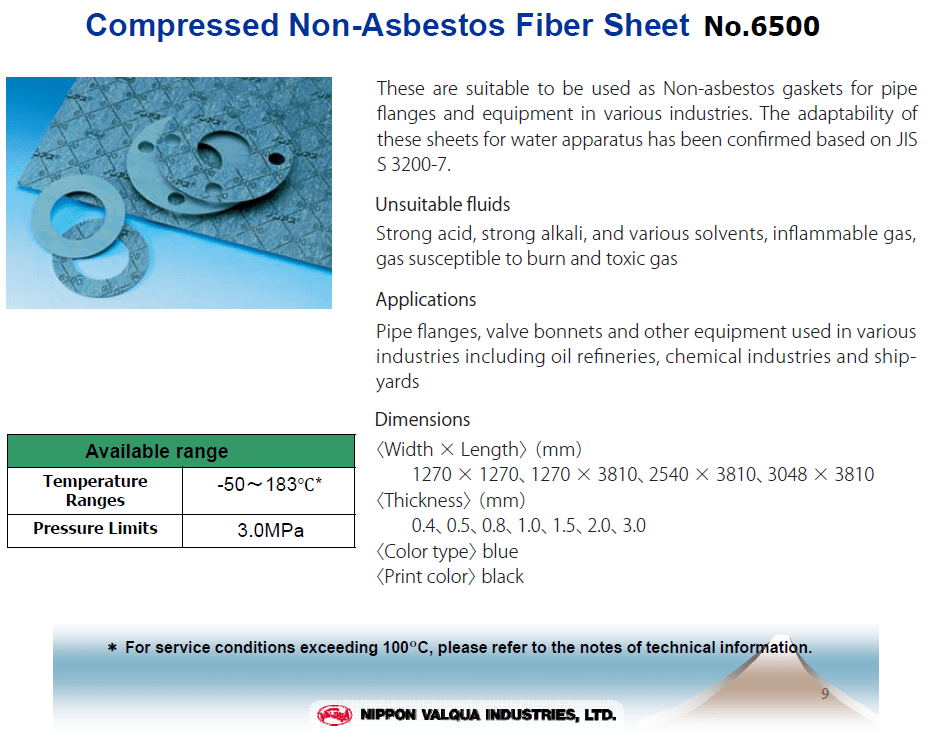

VALQUA 6500 Gasket Sheet

Compressed Non-Asbestos Fiber Sheet: 6500 Valqua

Description

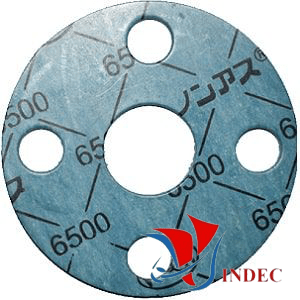

• Compressed Non-asbestos Fiber Sheet for general use: These products are suitable for use as general-purpose Gaskets for pipe flanges in general utility lines, such as water and oil and equipment in various industries. The adaptability of these sheets to water apparatus according  to JIS S 3200-7 has been confirmed.
• Unsuitable Fluids: Strong oxidizing acid, strong alkali, various solvents, inflammable gas, gas susceptible to burning, toxic gas, etc.

Technical Data

• Main component: NBR, aramid fiber, mineral wool, inorganic fillers
• Tỷ trọng 1.8 (g/cm3)
• Cường lực kéo 15 (Mpa)
• Temperature Continuous:  183 ºC
• Pressure Continuous (bar): 30 Bar

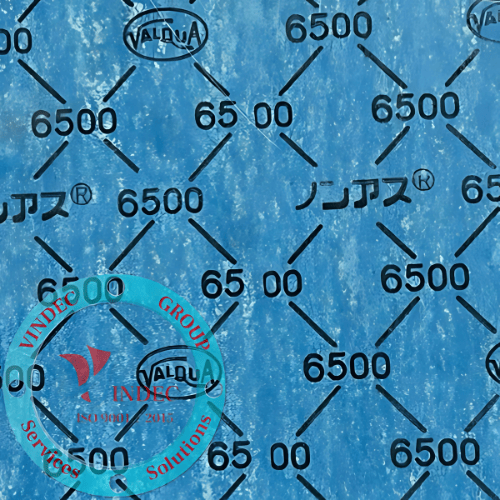

• Color / Print: Blue / Black
• Thickness:  0.4, 0.5, 0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 3.0 3.2,mm
• Dimension:  1270 x 1270mm, 1270 x 3810mm, 3048 x 3810mm

Applications

• Joint areas of steam lines, pipe flanges, valve bonnets and other equipment used in oil refineries and chemical industries.
