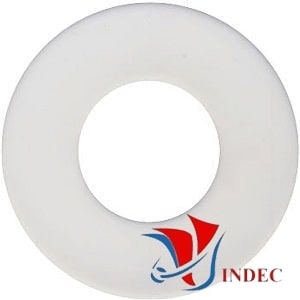

VALQUA 7010/7010-EX

Gaskets Pure PTFE VALQUA. 7010 & 7010-EX

- These gaskets are stamped out from a pure PTFE sheet. As they are susceptible to cold-flow they should generally be used on grooved flangs

VALQUA PRODUCT No. 7010

- Temperature Pressure: -50~100

- MPa {kgf/cm2}: 0.49{5}

NEW VALFLON Gasket: VALQUA 7010-EX

- Gasket made of "NEW VALFLON" that provides improved creep resistance while maintaining PTFE's excellent characteristics of heat resistance, chemical resistance and adhesion resistance.

- Excellent heat cycle life ensures a longer gasket life.

- Suitable for pipe flanges and units used in food and medicine processing that should avoid contamination with highly corrosive acid, halogen, solvent, oil gas and fluid.

- Temperature limit: -50 to +150

- Thickness: 1.5, 3.0mm

- Dimension: 1000x1000mm  and 1100x1100mm
