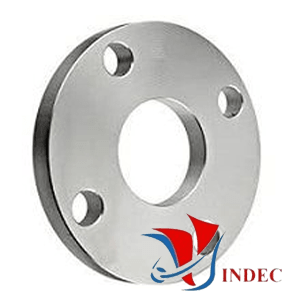

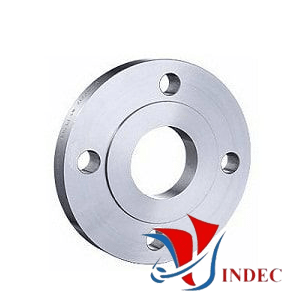

ANSI Plate RF Flange


ANSI Plate Raised Face Flange

- Size: 3/8" (DN10) đến 40" (DN1000)

- Working pressure: Ansi class Class 150, 300#, 600#, 900#, 1500#, 2500#

- Working materials: SS304. SS316, carbon steel, SS400, Q235, A105, ASTM A105; A350 LF2; A694 F42, F46, F52, F56, A182 F12/F22/F5/F9/ F91 / F304/L, F316/L

- Origin: Japan, Korea, Taiwan, Vietnam, China, India, Malaysia...

- Standard: ASTM/ANSI B16.5 US standard

Applications of ANSI Plate Raised Face Flange

Oil and gas, water works, and petrochemical.

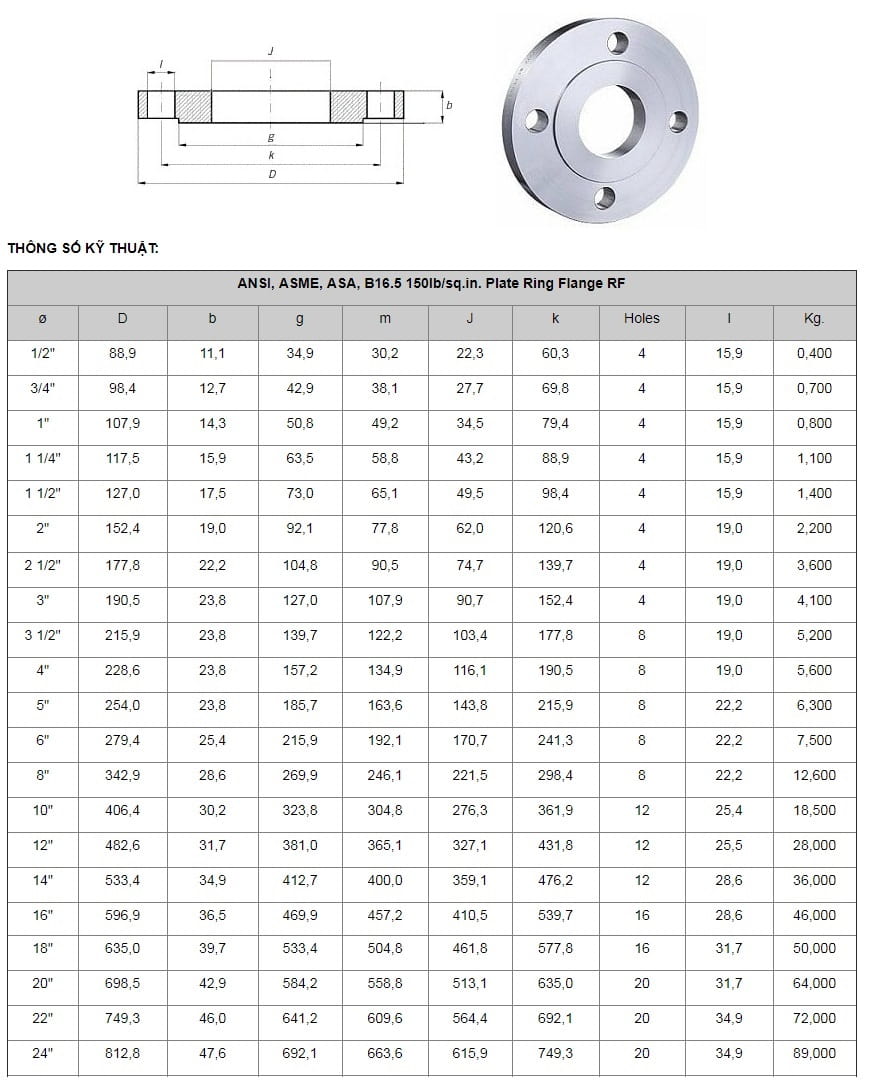

Dimension of ANSI 150 - B16.5 Plate Raised Face Flange

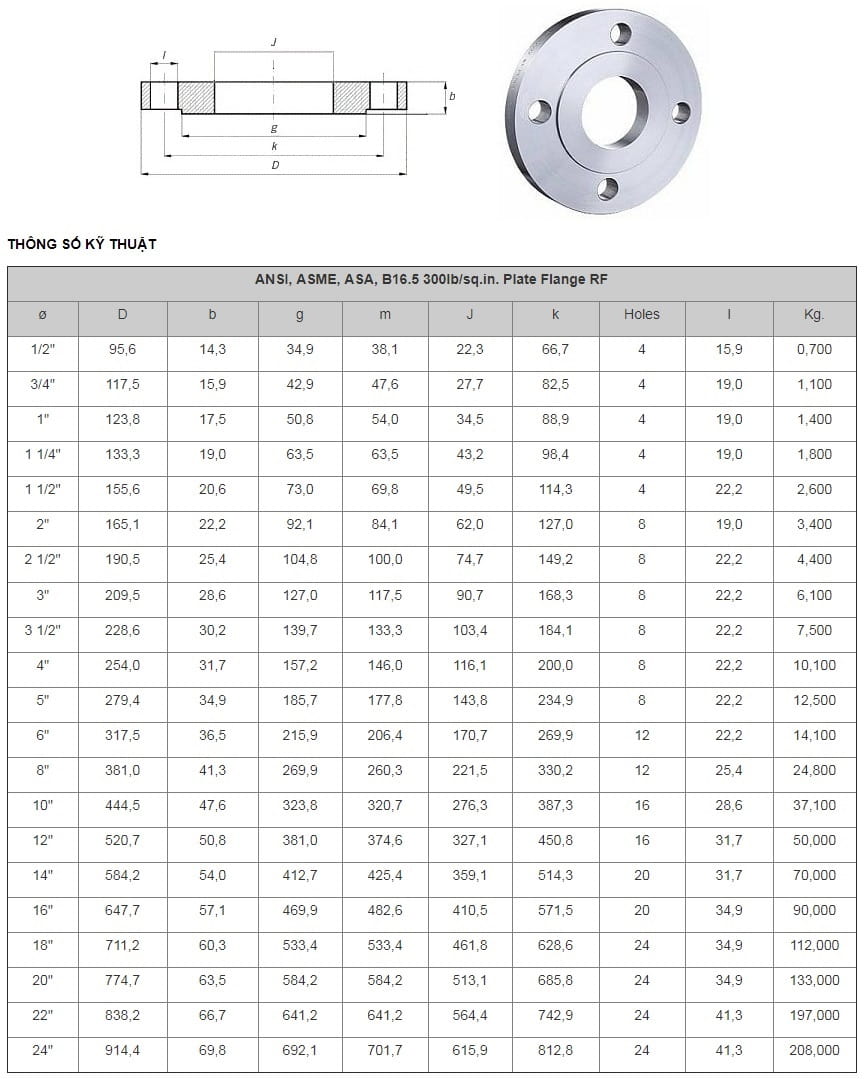

Dimension of ANSI 300 - B16.5 Plate Raised Face Flange

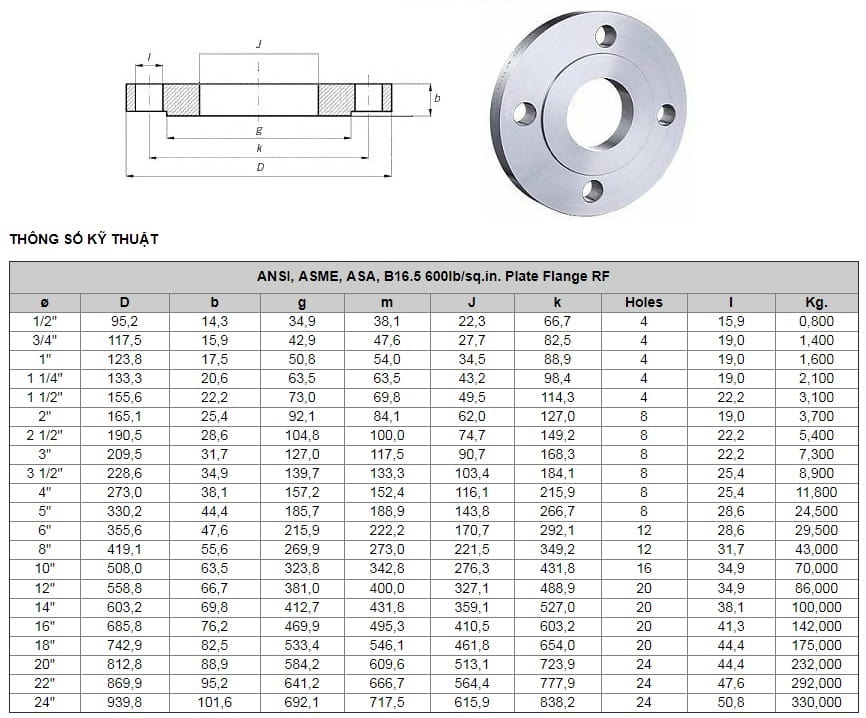

Dimension of ANSI 600 - B16.5 Plate Raised Face Flange

Sản phẩm liên quan

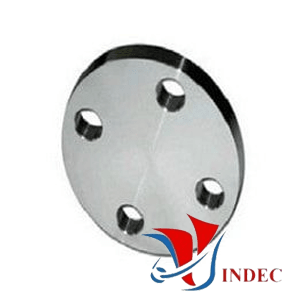

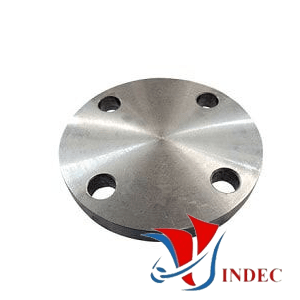

ANSI Blind RF Flange

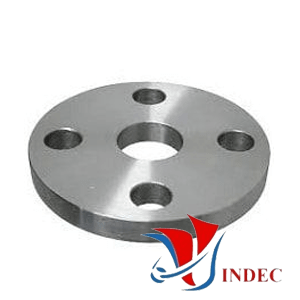

ANSI Plate RF Flange

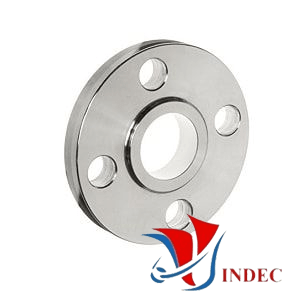

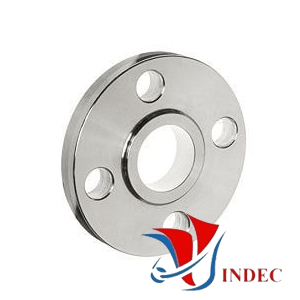

ANSI Slip On RF Flange

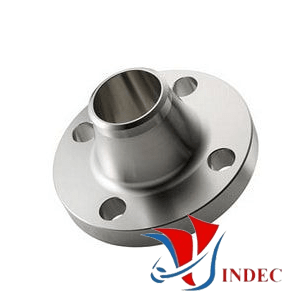

ANSI Welding Neck RF Flange

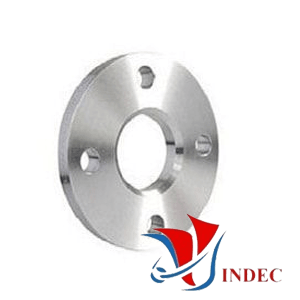

ANSI Lap Joint RF Flange
