ANSI Welding Neck RF Flange

Liên hệ

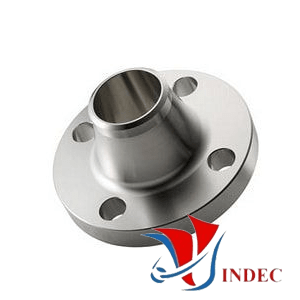

ANSI Welding Neck Raised Face Flange (WNRF Flange)

- Size: 3/8" (DN10) đến 40" (DN1000)

- Working pressure: Ansi class 150, 300, 600, 900, 1500, 2500

- Working materials: SS304. SS316, carbon steel, SS400, Q235, A105, ASTM A105; A350 LF2; A694 F42, F46, F52, F56, A182 F12/F22/F5/F9/ F91 / F304/L, F316/L

- Origin: Japan, Korea, Taiwan, Vietnam, China, India, Malaysia...

- Standard: ASTM/ANSI B16.5 US standard

Applications of ANSI Welding Neck Raised Face Flange

Oil and gas, water works, and petrochemical.

Dimension of ANSI 150 - B16.5 Welding Neck Raised Face Flange

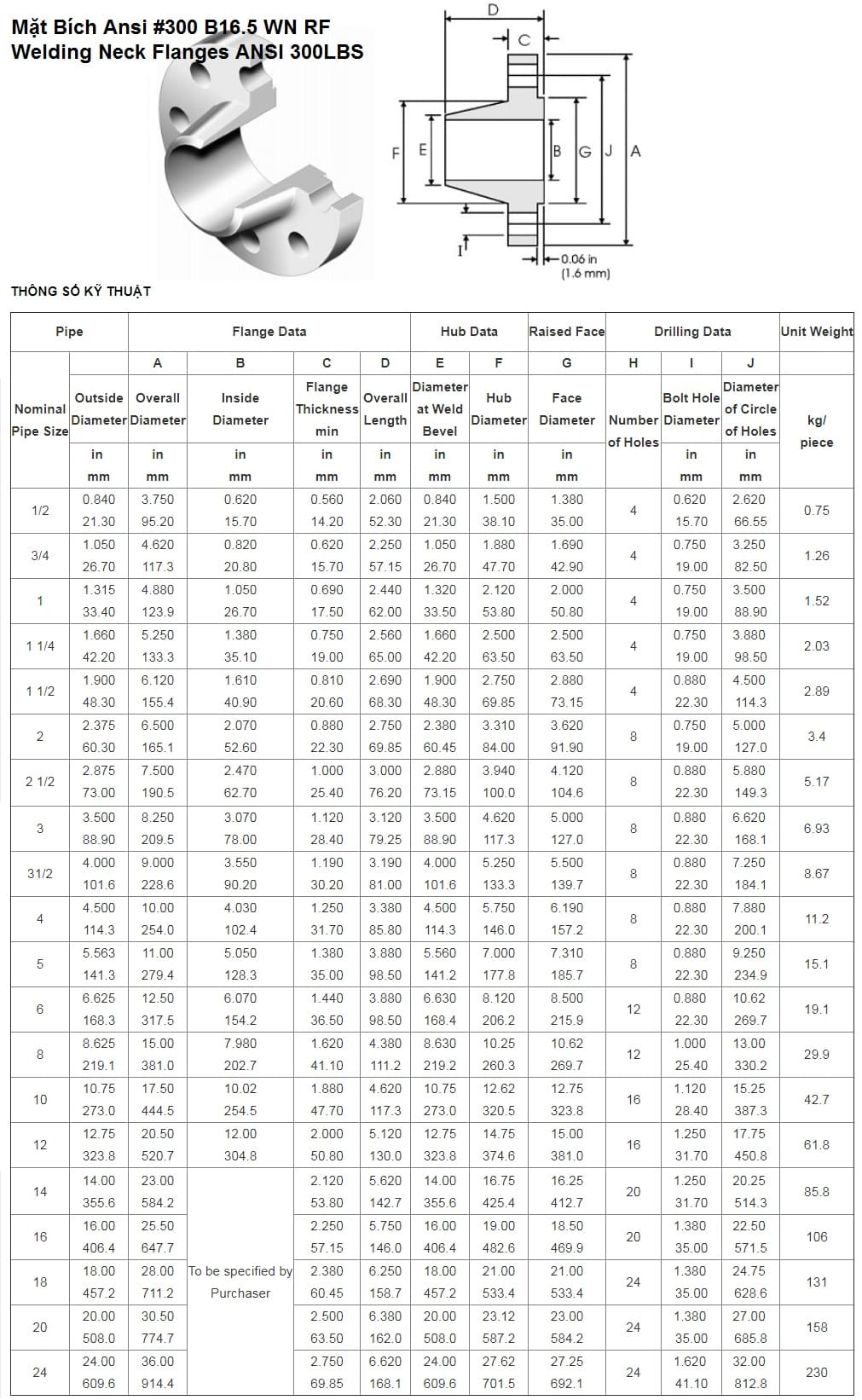

Dimension of ANSI 300 - B16.5 Welding Neck Raised Face Flange

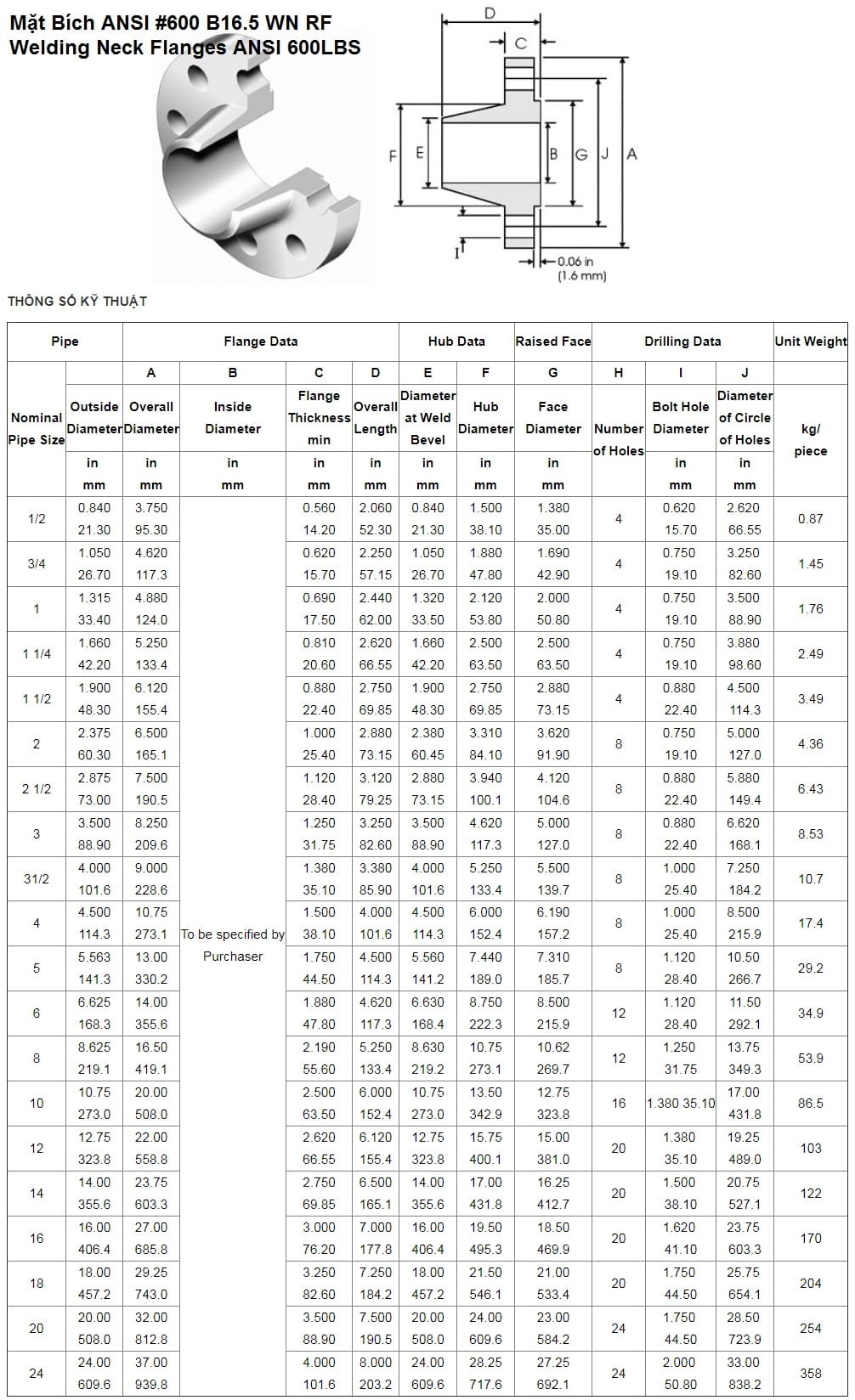

Dimension of ANSI 600 - B16.5 Welding Neck Raised Face Flange

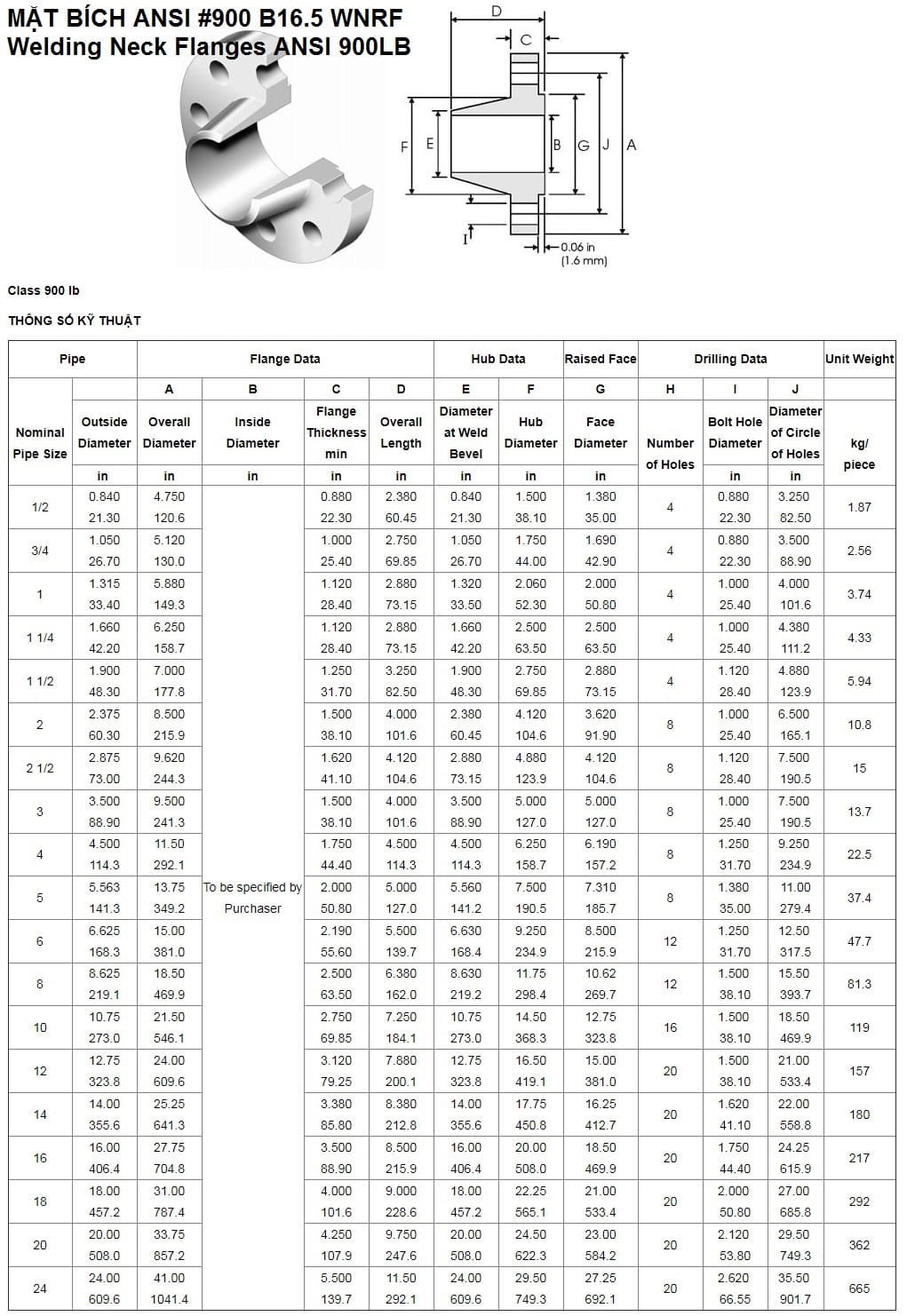

Dimension of ANSI 900 - B16.5 Welding Neck Raised Face Flange

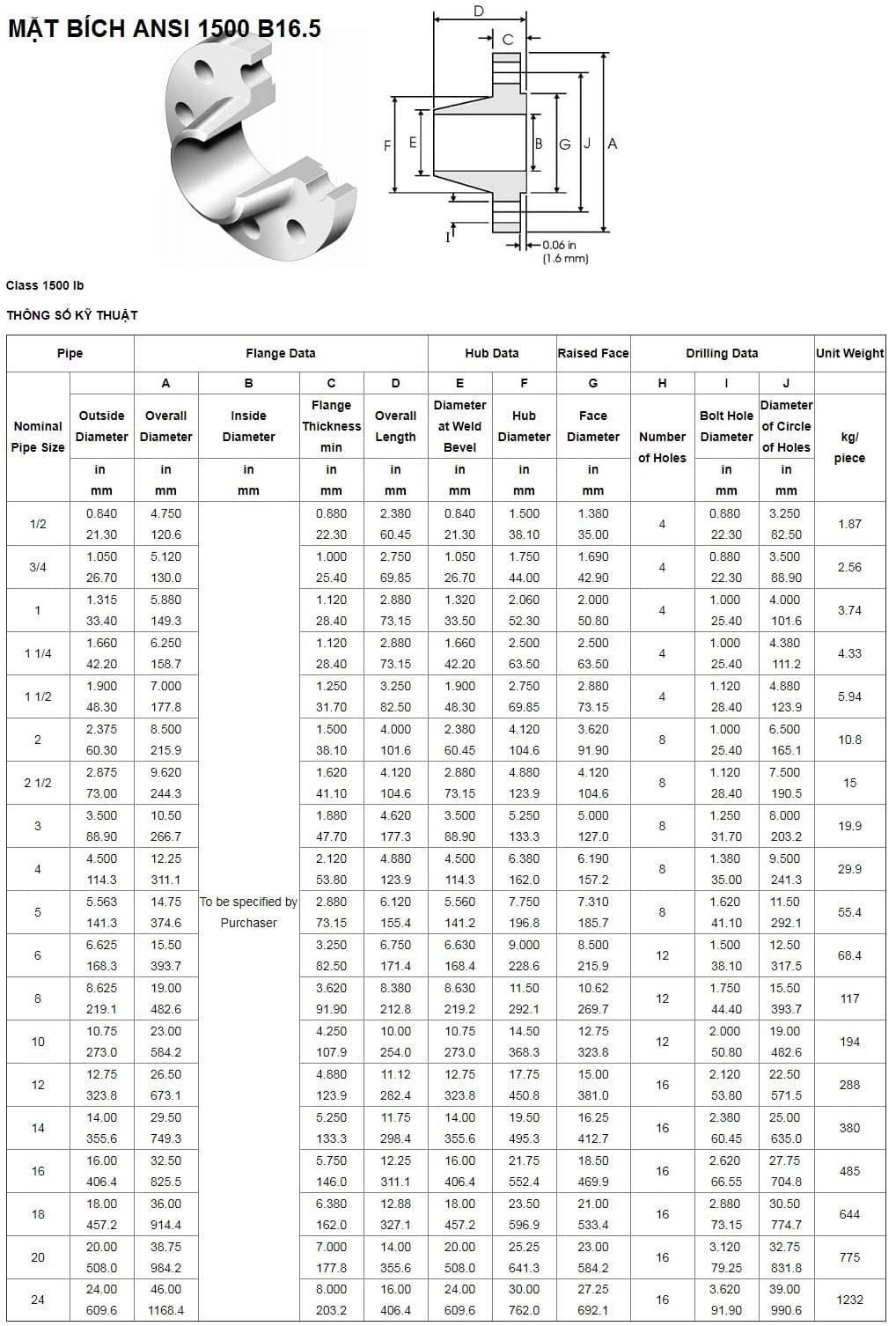

Dimension of ANSI 1500 - B16.5 Welding Neck Raised Face Flange

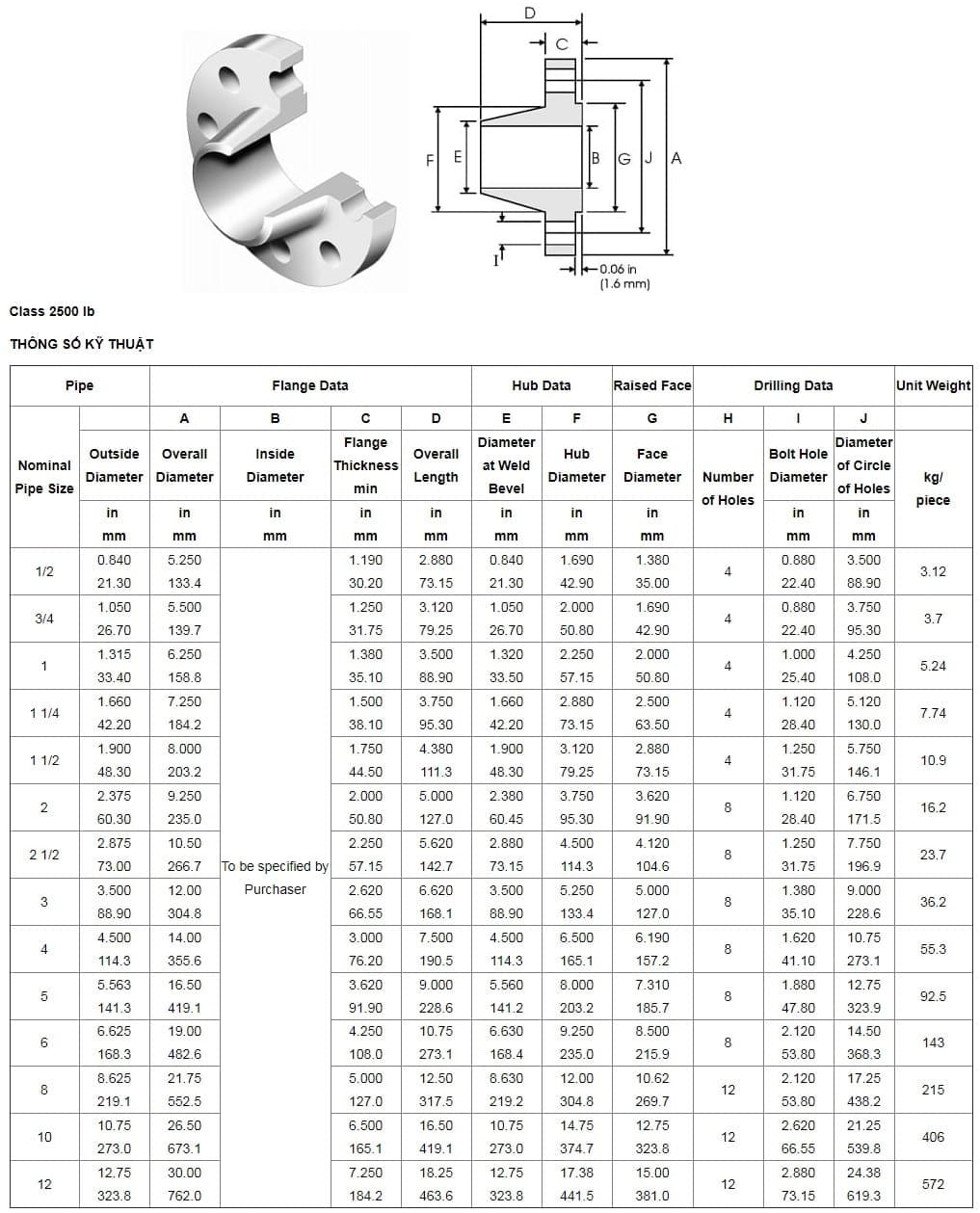

Dimension of ANSI 2500 - B16.5 Welding Neck Raised Face Flange
