DIN Blind Flange

Liên hệ

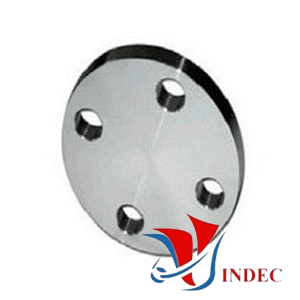

DIN Blind Flange

- Size: 3/8" (DN10) đến 40" (DN1000)

- Working pressure: 10kg/cm2, 16kg/cm2, 20kg/cm2, 30kg/cm2, 40kg/cm2, 63kg/cm2

- Working materials: Carbon steel, SS400, Q235, A105, Inox 201, 304, 316...

- Standard Germany: DIN 2527... PN6 - PN10 - PN16 - PN25 - PN40

Standard: DIN 2527 PN6 Blind Flange - BLFF

Standard: DIN 2527 PN10 Blind Flange - BLFF

Standard: DIN 2527 PN16 Blind Flange - BLFF

Standard: DIN 2527 PN25 Blind Flange - BLFF

Standard: DIN2527 PN40 Blind Flange - BLFF

- Pressure range: PN6 - PN10 - PN16 - PN25 - PN40

- Origin: Japan, Korea, Taiwan, Vietnam, China, India, Malaysia...

Applications of DIN Blind Flange

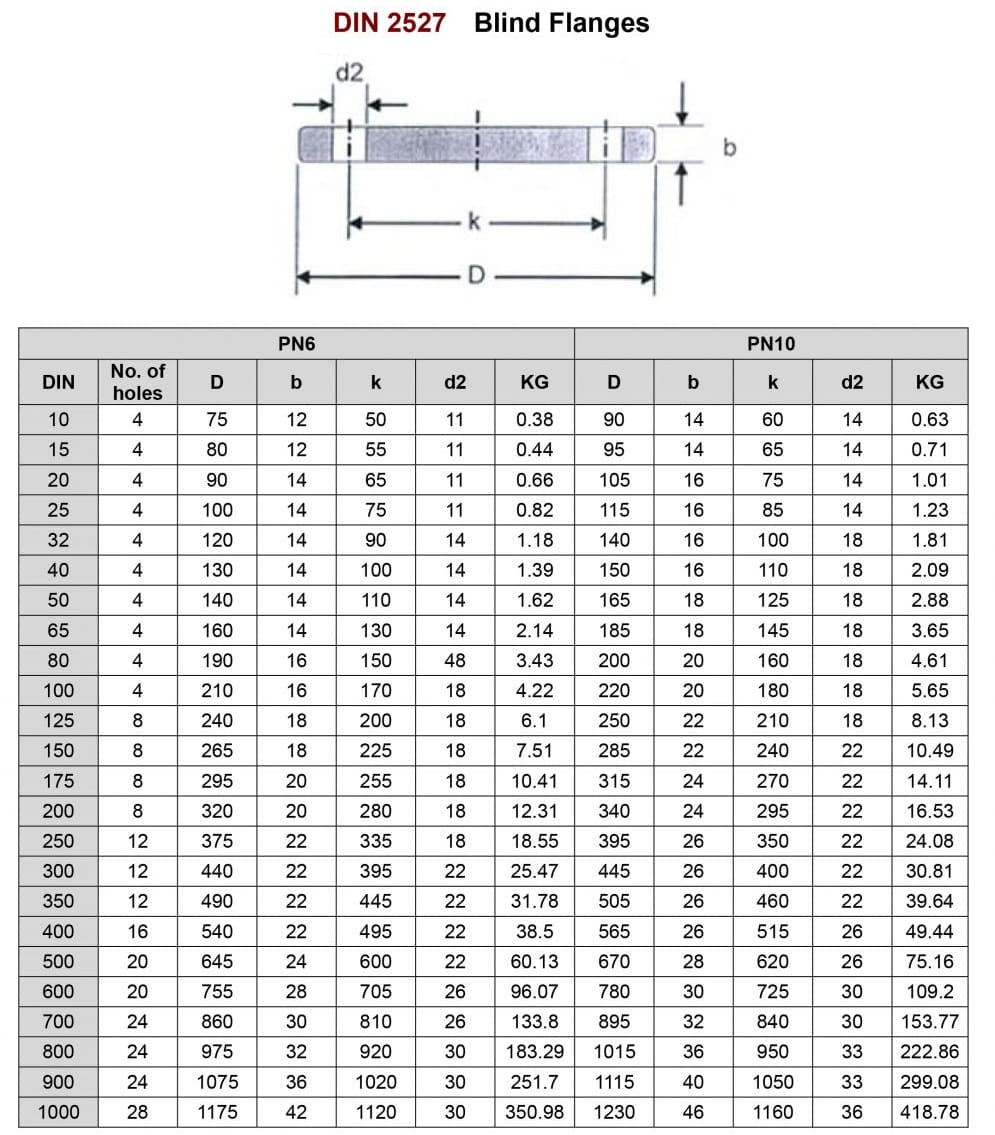

Dimension of DIN 2527 PN6 - PN10 Blind Flange - BLFF

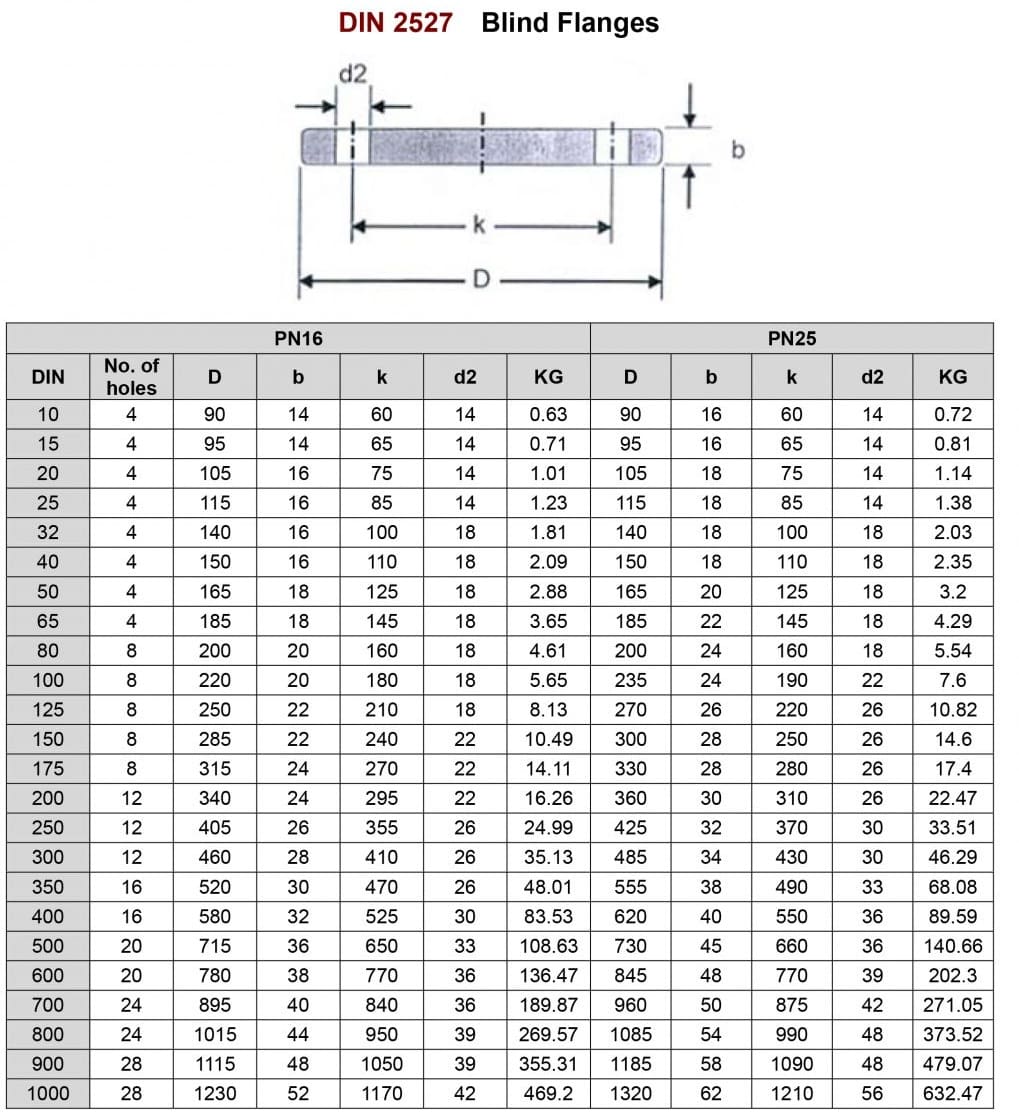

Dimension of DIN 2527 PN16 - PN25 Blind Flange - BLFF

Dimension of DIN 2527 PN16 - PN25 Blind Flange - BLFF
