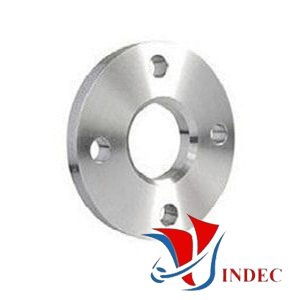

DIN Plate Slip On Flange

Liên hệ

DIN Plate Slip On Flange

- Size: 3/8" (DN10) đến 40" (DN1000)

- Working pressure: 10kg/cm2, 16kg/cm2, 20kg/cm2, 30kg/cm2, 40kg/cm2, 63kg/cm2

- Working materials: Carbon steel, SS400, Q235, A105, Inox 201, 304, 316...

- Standard Germany: DIN 2573, DIN 2576, DIN 2501, DIN 2502, DIN 2503, DIN 2543, DIN 2544, DIN 2545

Standard: DIN 2573 PN6 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2576 PN10 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2543 PN16 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2544 PN25 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2545 PN40 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2501 PN10 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2501 PN16 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2502 PN16 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2503 PN25 Flat Flange For Welding Rated (Plate Slip On)

Standard: DIN 2503 PN40 Flat Flange For Welding Rated (Plate Slip On)

- Pressure range: PN10, PN16, PN25, PN40

- Origin: Japan, Korea, Taiwan, Vietnam, China, India, Malaysia...

Applications of DIN Welding Neck Raised Face Flange

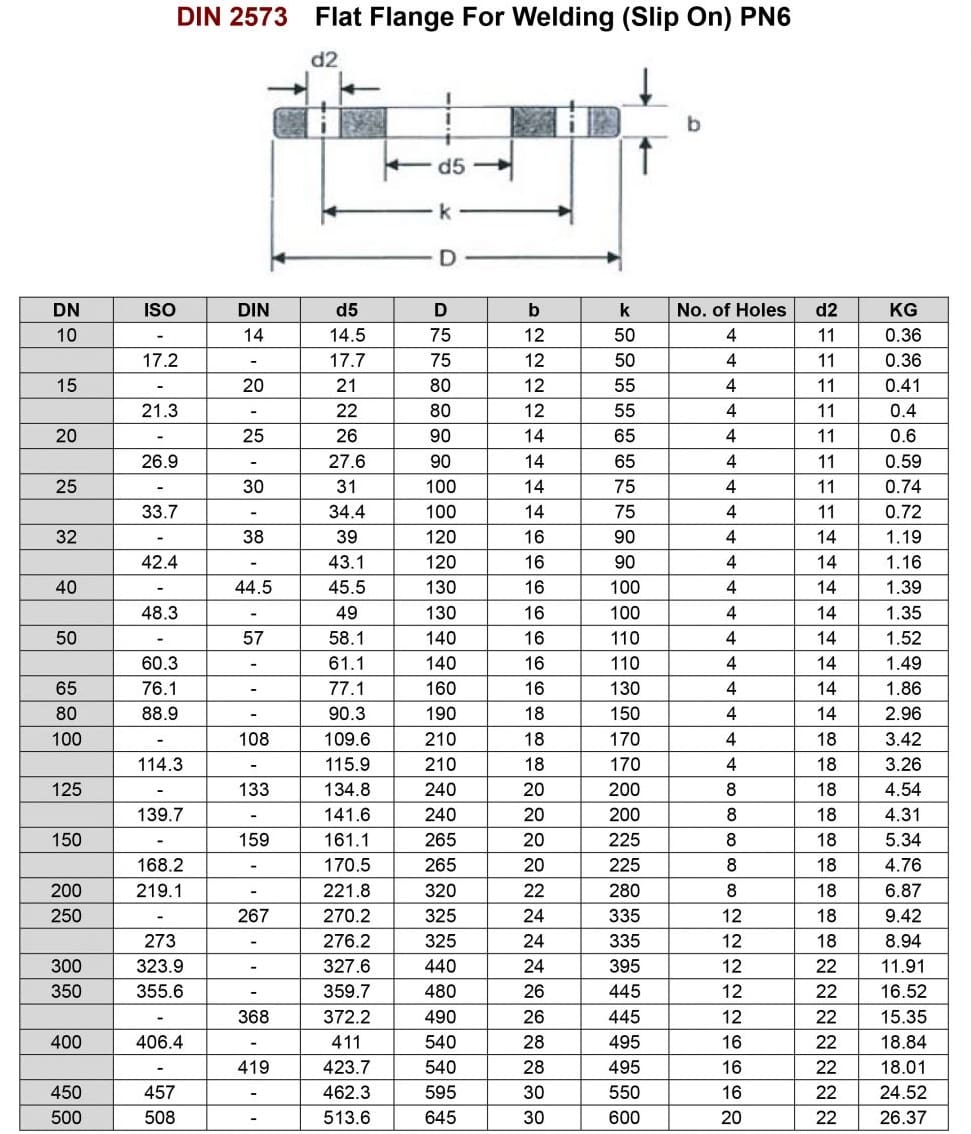

Dimension of DIN 2573 PN6 Flat Flange For Welding Rated (Plate Slip On)

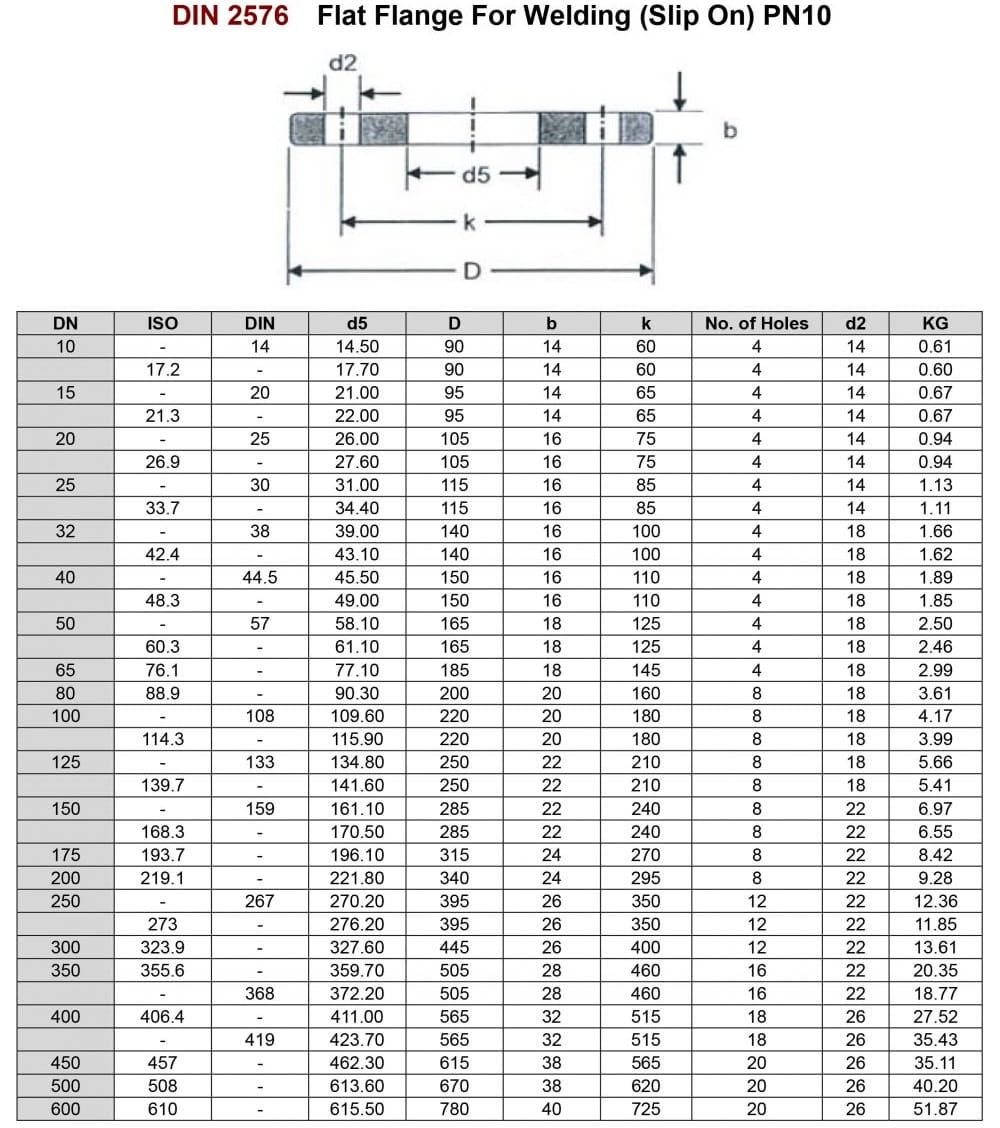

Dimension of DIN 2576 PN10 Flat Flange For Welding Rated (Plate Slip On)

Dimension of DIN 2543 PN16 Flat Flange For Welding Rated (Plate Slip On)

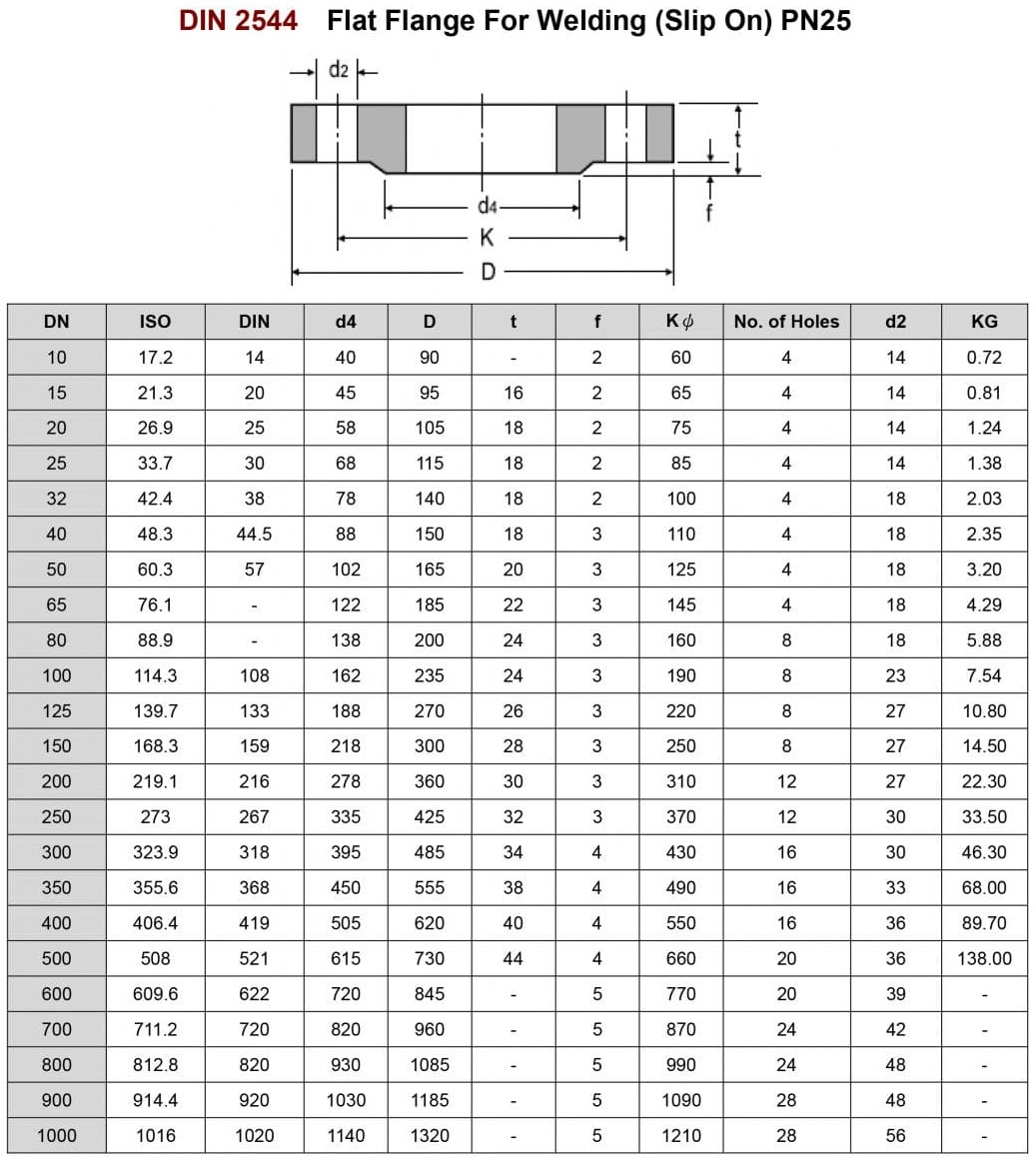

Dimension of DIN 2544 PN25 Flat Flange For Welding Rated (Plate Slip On)

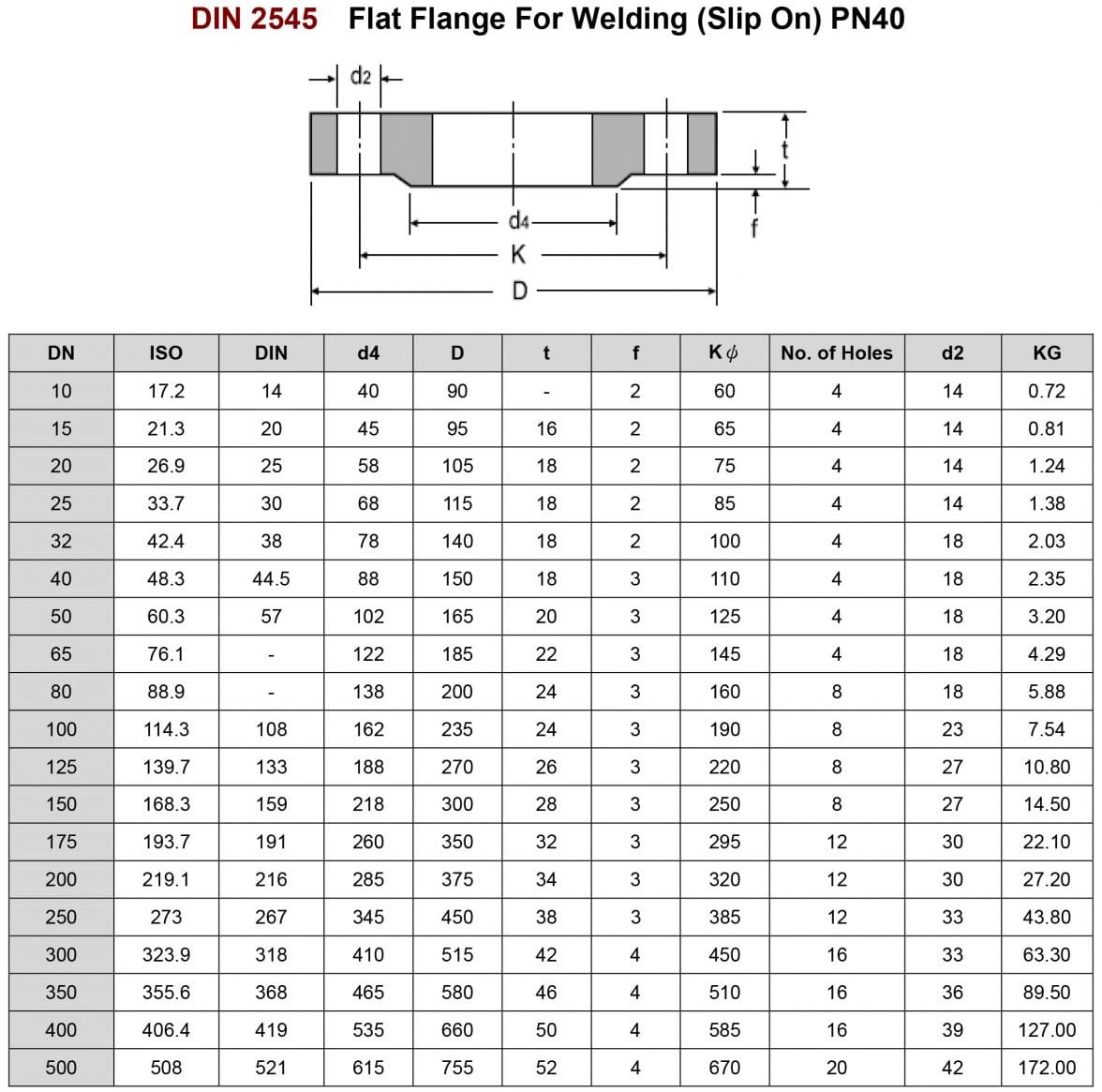

Dimension of DIN 2545 PN40Flat Flange For Welding Rated (Plate Slip On)
