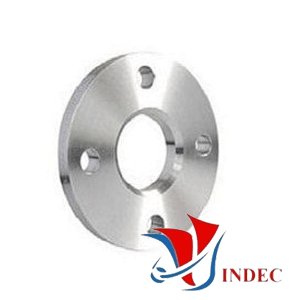

DIN Lapped Joint Flange

Liên hệ

DIN Lapped Joint Flange

- Size: 3/8" (DN10) đến 40" (DN1000)

- Working pressure: 10kg/cm2, 16kg/cm2, 20kg/cm2, 30kg/cm2, 40kg/cm2, 63kg/cm2

- Working materials: Carbon steel, SS400, Q235, A105, Inox 201, 304, 316...

- Standard Germany: DIN2641 - DIN2642

Standard: PN6 DIN 2641 Loose Flange - Lapped Joint Flange

Standard: PN10 DIN 2642 Loose Flange - Lapped Joint Flange

Standard: PN16 DIN2642 Loose Flange - Lapped Joint Flange

Standard: PN25 DIN2642 Loose Flange - Lapped Joint Flange

Standard: PN30 DIN2642 Loose Flange - Lapped Joint Flange

Standard: DIN 2656 PN40 Loose Flange - Lapped Joint Flange

- Pressure range: PN6 - PN10 - PN16 - PN25 - PN40

- Origin: Japan, Korea, Taiwan, Vietnam, China, India, Malaysia...

Applications of DIN Welding Neck Raised Face Flange

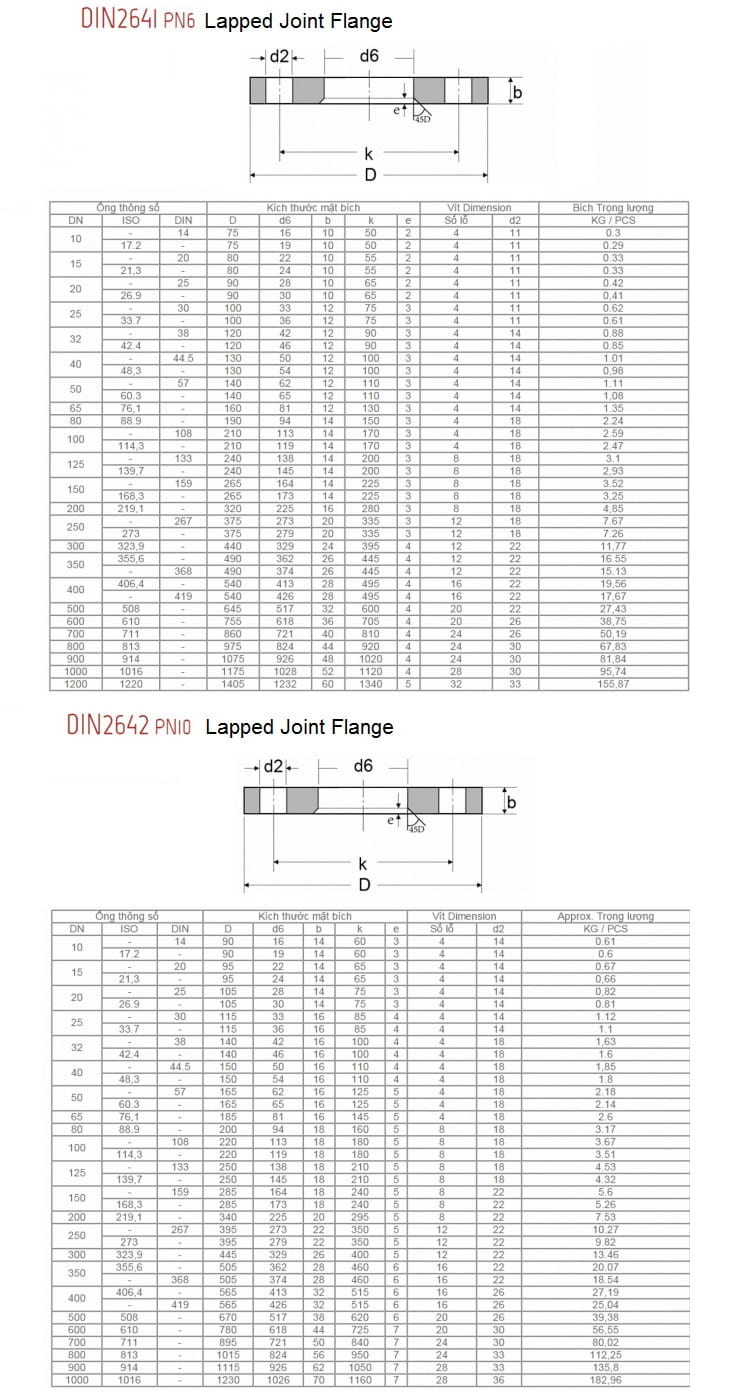

Dimension of PN6 DIN 2641 - PN10 DIN2642 Loose Flange Lapped Joint Flange

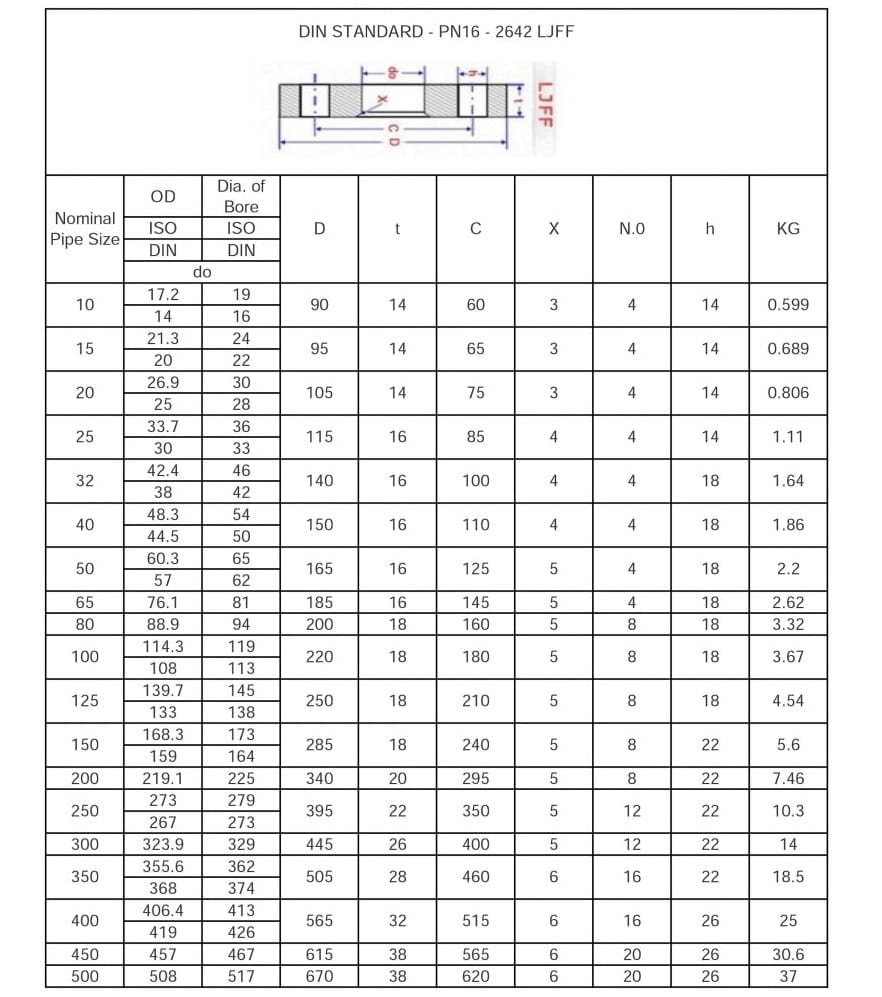

Dimension of PN16 DIN2642 Loose Flange Lapped Joint Flange

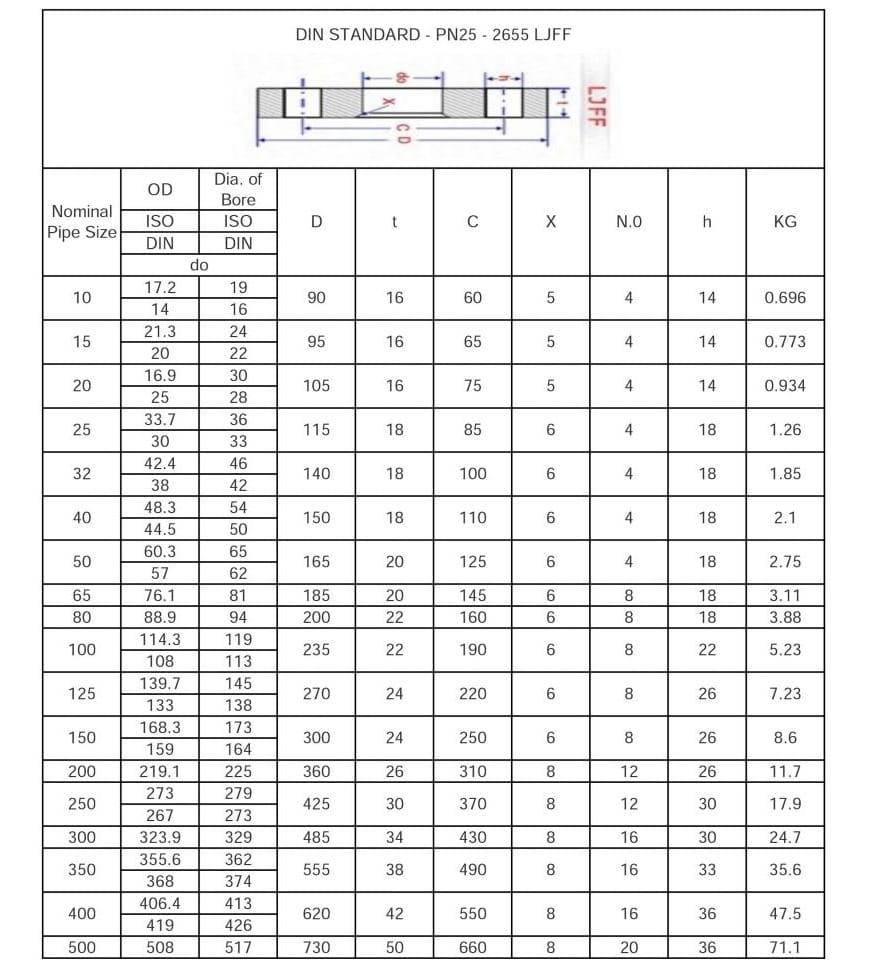

Dimension of PN25 DIN2642 Loose Flange Lapped Joint Flange

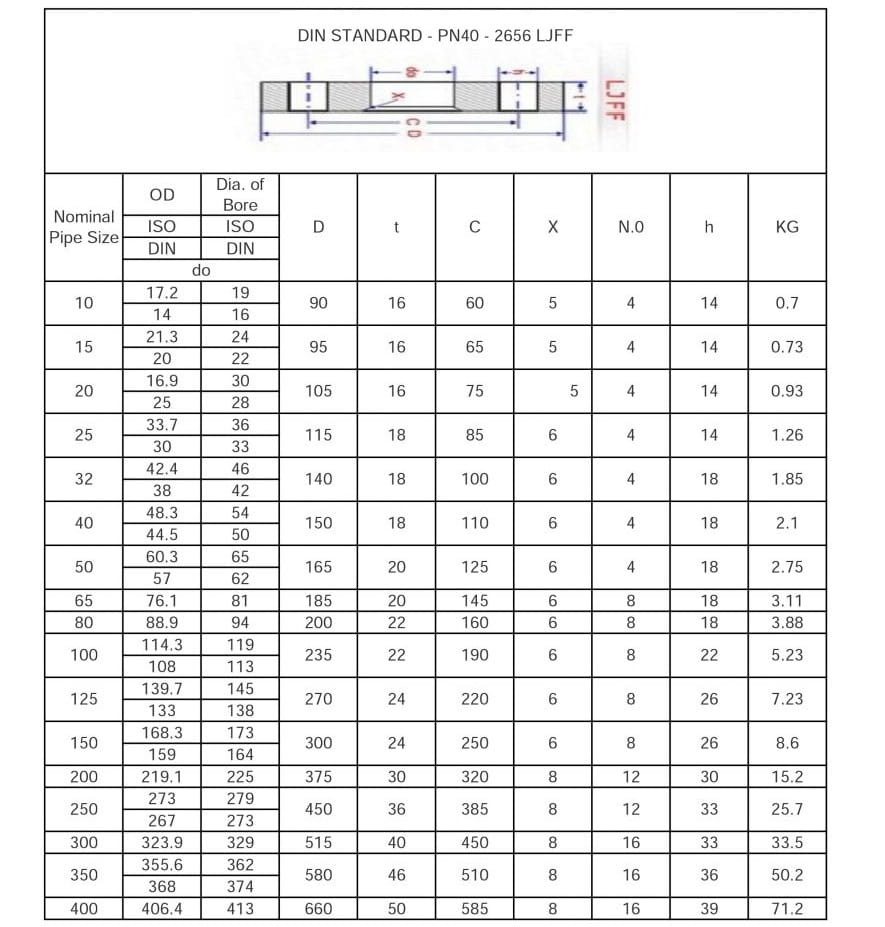

Dimension of PN40 DIN2642 Loose Flange Lapped Joint Flange
