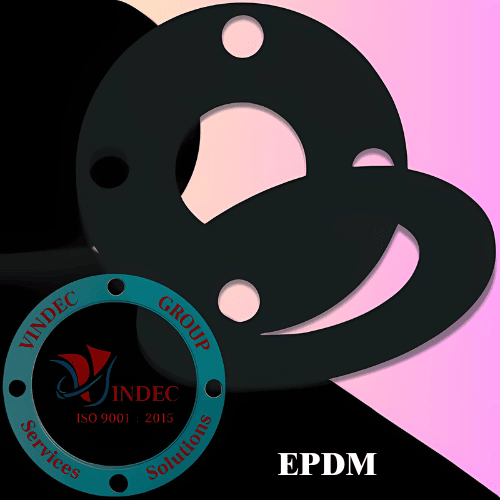

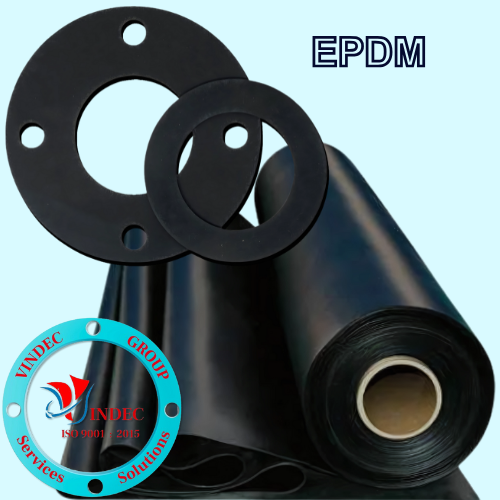

EPDM Rubber Flange Gasket
- Specific gravity: 1.12 to 1.4 g/cm3
- Hardness: 65+/-5 to 70+/-5 shore A
- Tensile strength: 8 to 11 Mpa
- Temperature: -40 to 150 C
- Pressure Max. (bar): 10 Bar
- Color: White / Black
- Size: DN 8, 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500...
- Made of EPDM rubber, these gaskets resist water, steam, and salt water. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes.
Technical Specification
- Petroleum: Poor
- Lubricating Oils: Poor
- Acid: Excellent
- Alkali: Good
- Impermeable to Gases: Good
- Ozone & Weathering: Excellent
- Oxidation: Excellent
- Water Resistance: Excellent
 |
 |
 |
|

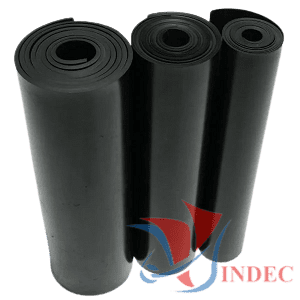

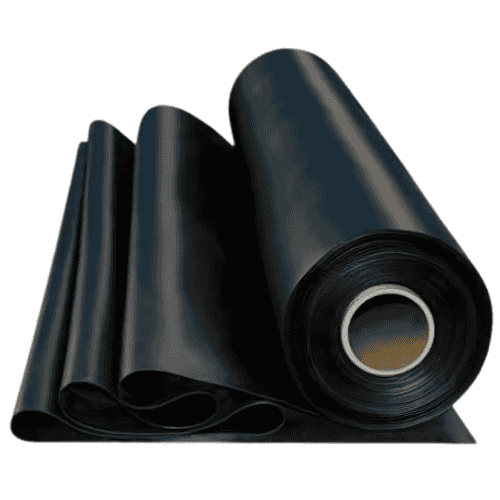

EPDM Rubber Flange Gasket
- Specific gravity: 1.12 to 1.4 g/cm3
- Hardness: 65+/-5 to 70+/-5 shore A
- Tensile strength: 8 to 11 Mpa
- Temperature: -40 to 150 C
- Pressure Max. (bar): 10 Bar
- Color: White / Black
- Width: 1.000mm to 2000mm
- Length : 10.000 mm
- Thickness : 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10 mm, 12mm, 14mm, 16mm, 20mm, 30mm, 40mm... 100mm
- EPDM rubber sheeting is a synthetic material that is commonly used in external applications due to the elastomers excellent resistance to ageing, ozone, water and adverse environmental conditions. The materials surface is watertight, provides good resistance to abrasion and performs well when in contact with chemicals such as alkalines, diluted acids and ketones. Common uses for EPDM include pipe seals, gaskets, weather strips and sleeves.
Technical Specification
- Petroleum: Poor
- Lubricating Oils: Poor
- Acid: Excellent
- Alkali: Good
- Impermeable to Gases: Good
- Ozone & Weathering: Excellent
- Oxidation: Excellent
- Water Resistance: Excellent
