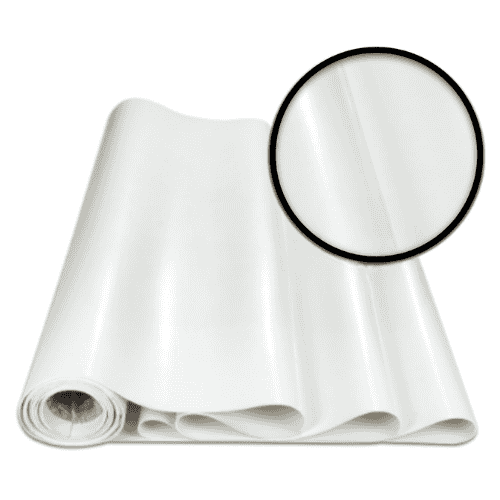

WHITE EPDM RUBBER GASKET SHEET
White EPDM Rubber Gasket Sheet is a high-performance sealing material manufactured from Ethylene Propylene Diene Monomer (EPDM) rubber and designed for applications requiring excellent weather resistance, hygienic appearance, flexibility, and long-term sealing performance.
Its white color makes it suitable for industries where cleanliness, easy inspection, and non-marking surfaces are important. White EPDM offers excellent resistance to water, steam, ozone, UV exposure, aging, and environmental conditions, making it a preferred sealing solution for sanitary and industrial environments.
TECHNICAL DATA
Material: EPDM (Ethylene Propylene Diene Monomer)
Color: White
Density: Approx. 1.20–1.50 g/cm³
Hardness: 50–80 Shore A
Tensile Strength: 5–12 MPa
Elongation at Break: 250–500%
Operating Temperature: -40°C to +120°C
Width: 1.000mm to 2000mm
Length : 10.000 mm
Thickness : 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm,... 20mm
Size: ANSI, JIS, DIN, BS,.. DN 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500...
Compression Set: Good
Weather Resistance: Excellent
Chemical Resistance: Good Against Water, Steam, Diluted Acids
Application & Media: FDA Food, drinking water, cold & warm water, weather, ozone, acid, bases
KEY FEATURES
Excellent Weather Resistance: Provides outstanding resistance to UV radiation, ozone, oxidation, and outdoor exposure.
Superior Water and Steam Resistance: Performs effectively in water systems and moderate steam applications.
High Flexibility and Elasticity: Maintains sealing efficiency under compression and vibration conditions.
Hygienic White Surface: Suitable for environments requiring a clean and visible sealing material.
Excellent Aging Resistance: Retains physical properties and sealing performance over extended periods.
Good Chemical Resistance: Resistant to diluted acids, alkalis, and selected industrial chemicals.
Reliable Thermal Stability: Maintains stable performance across a broad temperature range.
APPLICATIONS
Food Processing Equipment: Hygienic sealing applications.
Water Treatment Systems: Pipes, flanges, and fluid handling systems.
Pharmaceutical Industry: Clean and controlled environments.
HVAC Systems: Air and environmental sealing applications.
Packaging Equipment: Clean production and processing lines.
Industrial Machinery: General-purpose sealing and protection.
Electrical Enclosures: Moisture and dust sealing.
Construction Industry: Weather-resistant sealing solutions.
Application & Media Food, drinking water, cold & warm water, weather, ozone, acid, bases
