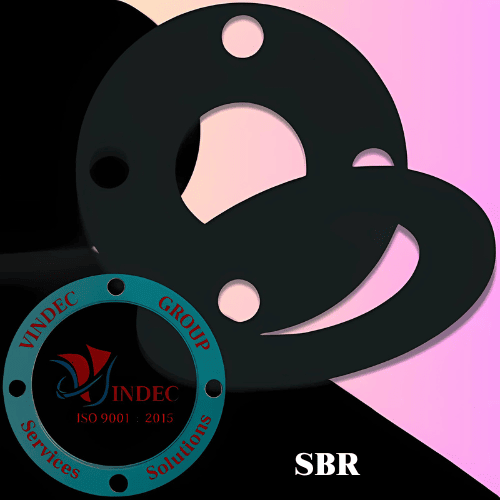

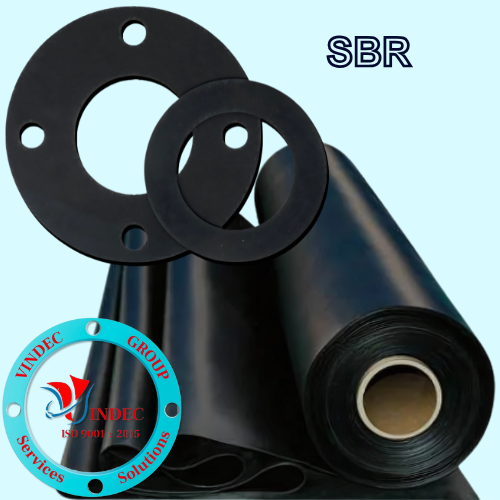

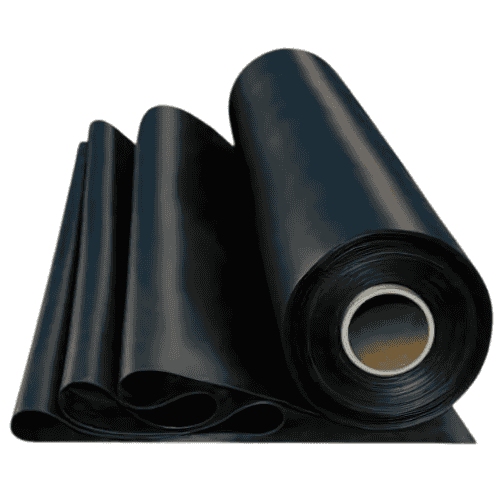

SBR Rubber Gasket Sheet

What is SBR Rubber ?

Structure of SBR Rubber

Technical SBR Rubber

- Specific gravity: 1.12 to1.4 g/cm3

- Hardness: 65+/-5 đến 70+/-5 shore A

- Tensile strength: 8 to 11 Mpa

- Temperature range: -40 to 100 độ C

- Pressure range: 10 Bar

- Color: White, Black

- Size: 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10 mm, 15mm, 20mm

- Width x Length : 1000 x 10.000 mm, 1200 x 10.000mm, or 1500 x 1500, 2000 x 2000mm

- Origin: China, Vietnam, India, Japan, Korea, EU

Different Type of SBR Rubber

SBR Rubber Gasket, SBR Rubber O-Ring, SBR Rubber Door Seal,  SBR Rubber Fabric Reinforced Sheet...

• SBR Rubber Gasket

• SBR Rubber O-Ring

• SBR Rubber Door Seal

• SBR Rubber Fabric Reinforced Sheet

Key Features of SBR Rubber

Applications & Media of SBR Rubber

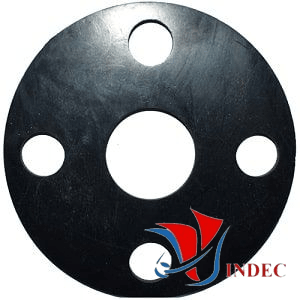

SBR Rubber Flange Gasket

- Specific gravity : 1.12 đến 1.4 g/cm3

- Hardness : 65+/-5 đến 70+/-5 shore A

- Tensile strength : 8 đến 11 Mpa

- Temperature: -40 đến 80

- Pressure Max. (bar): 10 Bar

- Color: White, Black

- Standard: ANSI, JIS, DIN, BS,..

- Size: DN 8, 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500...

- Made of SBR rubber, these gaskets resist water, Ozone, and salt water, oil, chemical. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes.
