KITZ Butterfly Valves

KITZ - Butterfly Valves

___________________________________________

- Compact and with a simple construction, butterfly valves facilitate easy pipe arrangement.

- KITZ butterfly valves are available in a variety of body materials and seat combinations ready to meet our customers' needs. Oil-free specification is also available. All valve types are available with pneumatic or electric actuators and can be automated.

- Model: 10XJMEA, G-10XJMEA, 16XJME, PN16XJME, FV, 10DJU, G-10DJU, 10CU, 10C, 10DJUE, GL-10DJUE, 16DJ, PN16DJ, G-PN16DJ, G-16DJ, 16DJE, 10UB, GL-10UB, GL-16UB...

___________________________________________

Structures of KITZ Butterfly Valves

___________________________________________

Technical KITZ Butterfly Valves

___________________________________________

Operation of KITZ Butterfly Valves

___________________________________________

Types of Butterfly Valves KITZ

✦ KITZ XJ Series Aluminum Butterfly Valves : Featured with unique interchangeability of the neck designs.

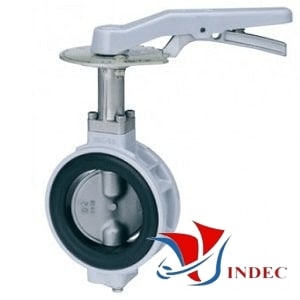

KITZ ALUMINUM BUTTERFLY VALVE, LEVERED OPERATOR, JIS10K COUPLING FLANGE
Body: Aluminum Die-Cast ; Neck: A351 Gr. CF8 ; Stem: A276 type 403
Disc: A351 Gr. CF8M ; Seat, O-ring: EPDM
P-T ratings: 10kgf/cm2 @ (-)20 to 120 deg. C
Model: 10XJMEA

KITZ ALUMINUM BUTTERFLY VALVE, JIS10K COUPLING FLANGE, GEARED OPERATOR
Body: Aluminum Die-Cast ; Neck: A351 Gr. CF8 ; Stem: A276 type 403
Disc: A351 Gr. CF8M ; Seat, O-ring: EPDM
P-T ratings: 10kgf/cm2 @ (-)20 to 120 deg. C
Model: G-10XJMEA

KITZ ALUMINUM BUTTERFLY VALVE, LEVERED OPERATOR, JIS 16K COUPLING FLANGE
Body: Aluminum Die-Cast Aluminum Die-Cast
Stem: SUS 410
Disc: SCS14A
Seat, O-ring: EPDM
P-T ratings: 16kgf/cm2 @ 0 deg C to 100 deg.C
Manufactured in Thailand
Model: 16XJME

KITZ ALUMINUM BUTTERFLY VALVE, LEVERED OPERATOR, PN16 COUPLING FLANGE
Body: Aluminum Die-Cast Aluminum Die-Cast
Stem: SUS 410
Disc: SCS14A
Seat, O-ring: EPDM
P-T ratings: 16kgf/cm2 @ 0 deg C to 100 deg.C
Manufactured in Thailand
Model: PN16XJME

KITZ VALVES Brass Butterfly Valve
Body: Brass
Stem: Inox 304
Disc: Inox 304 và NBR
Gland: Brass
Handle: Inox 403
175psi. Water Oil Gas; t= 0 - 70deg C
Model: FV

✦ The DJ-Series : is a ductile butterfly valve using molded-in (bonded) seat structure.

KITZ Ductile Iron Butterfly Valve, JIS 10K Coupling Flange
Body: FCD450
Stem: 410 Stainless Steel
Disc: 304 Stainless Steel
Seat & O-ring: NBR
P - T ratings: Max 10 kgf/cm2 @ max 0 - 70 deg.C
Model: 10DJ

KITZ Cast Iron Butterfly Valve, JIS 10K Coupling Flanged
Body: FC200
Stem: SUS403
Disc: SCS13A
Seat & O-ring: NBR
P - T ratings: Max 10 kgf/cm2 @ max 0 - 70 deg.C
Model: 10CU

KITZ Cast Iron Butterfly Valve, JIS 10K Coupling Flanged, Geared Operator
Body: FC200
Stem: SUS403
Disc: FCD450 + ENP
Seat & O-ring: NBR
P - T ratings: Max 10 kgf/cm2 @ max 0 - 70 deg.C
Model: GL-10C

KITZ Cast Iron Butterfly Valve, JIS 10K Coupling Flanged
Body: FC200
Stem: SUS403
Disc: FCD450 + ENP
Seat & O-ring: NBR
P - T ratings: Max 10 kgf/cm2 @ max 0 - 70 deg.C
Model: 10C

KITZ Ductile Iron Butterfly Valve, JIS 10K Coupling Flange
Body: FCD450
Stem: 410 Stainless Steel
Disc: 304 Stainless Steel
Seat & O-ring: EPDM
P - T ratings: Max 10 kgf/cm2 @ max -20 - 130 deg.C
Model: 10DJUE / GL-10DJUE

KITZ Ductile Iron Butterfly Valve, JIS 16K Coupling Flange
Body: FCD450; Stem: 410 Stainless Steel
Disc: FCD 450 + ENP; Seat & O-ring: NBR
P - T ratings: Max 16 kgf/cm2 @ max 0 - 70 deg.C
Model: 16DJ

KITZ Ductile Iron Butterfly Valve, PN16 Coupling Flange
Body: FCD450; Stem: 410 Stainless Steel
Disc: FCD 450 + ENP; Seat & O-ring: NBR
P - T ratings: Max 16 kgf/cm2 @ max 0 - 70 deg.C
Model: PN16DJ / G-PN16DJ

KITZ Ductile Iron Butterfly Valve, JIS 16K Coupling Flange, Geared Operator
Body: FCD450; Stem: 410 Stainless Steel
Disc: FCD 450 + ENP; Seat & O-ring: NBR
P - T ratings: Max 16 kgf/cm2 @ max 0 - 70 deg.C
Model: G-16DJ

KITZ Ductile Iron Butterfly Valve, JIS 16K Coupling Flange
Body: FCD450; Stem: 410 Stainless Steel
Disc: FCD 450 + ENP; Seat & O-ring: EPDM
P - T ratings: Max 16 kgf/cm2 @ max 0 - 130 deg.C
Model: 16DJE / G-16DJE

✦ The UB-series : Incorporates stainless steel manufacture for vital elements and double eccentric construction.

KITZ STAINLESS STEEL BUTTERFLY VALVE, LEVER OPERATOR, JIS10K COUPLING FLANGE
Body: SCS13; Stem: SUS304N2
Disc: SCS13; Seat: PTFE
Max temperature: 160 deg. C
Max pressure: 14 kgf/cm2
MODEL. 10UB

KITZ STAINLESS STEEL BUTTERFLY VALVE, GEARED OPERATOR, , JIS10K COUPLING FLANGE
Body: SCS13; Stem: SUS304N2
Disc: SCS13; Seat: PTFE
Max temperature: 160 deg. C
Max pressure: 14 kgf/cm2
MODEL. GL-10UB

KITZ STAINLESS STEEL BUTTERFLY VALVE, GEARED OPERATOR, JIS16K COUPLING FLANGE
Body: SCS13; Stem: SUS304N2
Disc: SCS13A; Seat: PTFE
Max temperature: 160 deg. C
Max pressure: 20 kgf/cm2
MODEL. GL-16UB

KITZ STAINLESS STEEL BUTTERFLY VALVE, LEVER OPERATOR, JIS16K COUPLING FLANGE
Body: SCS14A; Stem: SUS304N2
Disc: SCS14A; Seat: PTFE
Max temperature: 160 deg.C
Max pressure: 14 kgf/cm2
Model. 10UBM

✦ The 3 type of seat material are Sillicone rubber(VMQ), White NBR and Fluoro rubber.

___________________________________________

Advantages of KITZ Butterfly Valves

___________________________________________

Disadvantages of KITZ Butterfly Valves

___________________________________________

Key Features of KITZ Butterfly Valves

___________________________________________

Application of KITZ Butterfly Valves

___________________________________________

Size of KITZ Butterfly Valves

- Kitz butterfly valve DN40 (40mm/ 40A) Piping size 49 mm

- Kitz butterfly valve DN50 (50mm/ 50A) đường ống size 60 mm

- Kitz butterfly valve DN65 (65mm/ 65A) Piping size 76 mm

- Kitz butterfly valve DN80 (80mm/80A) Piping size 90 mm

- Kitz butterfly valve DN100 (100mm/100A) Piping size 114 mm

- Kitz butterfly valve DN125 (125mm/125A) Piping size 140 mm

- Kitz butterfly valve DN150 (150mm/150A) Piping size 168 mm

- Kitz butterfly valve DN200 (200mm/200A) Piping size 220 mm

- Kitz butterfly valve DN250 (250mm/250A) Piping size 273 mm

- Kitz butterfly valve DN300 ( ) Piping size mm

- Kitz butterfly valve DN350 ( ) Piping size mm

- Kitz butterfly valve DN400 ( ) Piping size mm

- Kitz butterfly valve DN450 ( ) Piping size mm

- Kitz butterfly valve DN500 ( ) Piping size mm
