KITZ Gate Valves

- Gate valves are general service valves that can be made in a broad spectrum of sizes using a variety of different materials. They can meet the demands of a wide range of pressure and temperature conditions.

- FH125, EBH, 125FCL, 10FCL, 10FCHI, 10SM, 10SMBF, 16SMBO, 150SMBO, 150SCLS, 300SCLS, 600SCLS, UEL, UEB, 10UMA, 150UMA, 300UMA, 600UMA

___________________________________________

Structures of KITZ Gate Valves

___________________________________________

Technical KITZ Gate Valves

___________________________________________

Operation of KITZ Gate Valves

___________________________________________

Types Of Gate Valves KITZ

- KITZ Bronze gate valves, KITZ Brass gate valves, KITZ Cast iron gate valves, KITZ Ductile gate valves, KITZ Cast Steel gate valves, KITZ Stainless steel gate valves...

• BRONZE & BRASS GATE VALVE KITZ

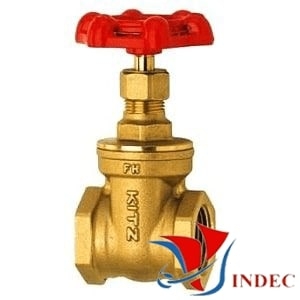

KITZ BRASS GATE VALVE, THREADED ENDS
200psi. Water Oil Gas
125psi. Saturated Steam
Model. FH

KITZ BRONZE GATE VALVE, NON RISING STEM, JIS 10K FLANGED ENDS
225 psi Water Oil Gas
150 psi Saturated Steam
Model. EBH

___________________________________________

• CAST IRON & DUCTILE IRON GATE VALVE KITZ

KITZ CAST IRON GATE VALVE, RISING STEM, ANSI 125 FLANGED ENDS
200psi Water, Oil, Gas @ 65 deg. C
125psi Saturated Steam
Model. 125FCL

KITZ CAST IRON GATE VALVE, RISING STEM, 10K FF FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil 120 Deg.C
7kfg/cm2 Saturated Steam
Model. 10FCL

KITZ CAST IRON GATE VALVE, NON-RISING STEM, JIS 10K FF FLANGED ENDS.
10kgf/cm2 Static water at 120 Deg.C
8.8 kgf/cm2 Water, Oil, Gas at 120 deg. C
7kfg/cm2 Saturated Steam
Model. 10FCHI

KITZ DUCTILE IRON GATE VALVE-, THREADED ENDS
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
Model. 10SM

KITZ DUCTILE IRON GATE VALVE, JIS 10K RF FLANGED ENDS
1.37MPa (14kgf/cm2) 120 ℃ water balance
1.18MPa (12kgf/cm2) water reservoir / Steam 220 ℃
0.98MPa (10kgf/cm2) water reservoir / Steam 300 ℃
Model. 10SMBF

KITZ DUCTILE IRON GATE VALVE-FLANGED ENDS
22kgf/cm2 Static water 120 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
16kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model. 16SMBO

KITZ DUCTILE IRON GATE VALVE, 150# RF FLANGED ENDS
17.6kgf/cm2 Water, Oil, Gas -5 ~ -38Deg.C
15.1kfg/cm2 Water Oil Gas 149Deg.C
12kfg/cm2 Water Oil Gas 260Deg.C
8.8kfg/cm2 Water, Oil, Gas 343 Deg.C
Fig: 150SMBO

KITZ DUCTILE IRON GATE VALVE, JIS 10K RF FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
12kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
MODEL. 10SMBOF

___________________________________________

• STAINLESS STEEL GATE VALVE KITZ

KITZ STAINLESS STEEL GATE VALVE, THREADED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
MODEL. UEL

KITZ STAINLESS STEEL GATE VALVE,JIS 10K FLANGED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
MODEL. UEB - UEBM

KITZ STAINLESS STEEL GATE VALVE, B. C., O. S. & Y., RISING STEM, 10K FLANGED ENDS.
Body, Bonnet, Disc: SCS13A; Stem: SUS304
Shell wall thickness and general valve design specifications: ASME B16.34
Pressure-Temperature ratings: JIS B2238
MODEL. 10UMA

KITZ STAINLESS STEEL GATE VALVE, B. C., O. S. & Y., RISING STEM, ANSI 300 FLANGED ENDS
Body, Bonnet, Disc: SCS13A; Stem: SUS304:
Shell wall thickness and general valve design specifications: ASME B16.34
Pressure-Temperature ratings: JIS B2238
MODEL. 300UMA - 150UMA

___________________________________________

• CAST STEEL GATE VALVE KITZ

KITZ CAST CARBON STEEL GATE VALVE, ANSI 150# FLANGED ENDS.
Bolted Bonnet, Outside screw & Yoke, Rising Stem
Body: Cast Steel ASTM A216 Gr. WCB
Stem: Stainless Steel A182 Gr. F6a
Disc: Stainless Steel A182 Gr. F6a (size 2" - 4")
Cast Steel ASTM A216 Gr. WCB + 13Cr (Size 5" - 12")
Body Seat Ring: Carbon Steel A106 Gr. B + HF or A105 + HF
Packing Material: Flexible Graphite
Shell wall thickness and general valve design specification: API600
Pressure-Temperature ratings: ASME B16.34
More specifications: Catalogue attached.
Made in china
MODEL. 150SCLS

KITZ CAST CARBON STEEL GATE VALVE, ANSI 300# FLANGED ENDS.
Bolted Bonnet, Outside screw & Yoke, Rising Stem
Body: Cast Steel ASTM A216 Gr. WCB
Stem: Stainless Steel A182 Gr. F6a
Disc: Stainless Steel A182 Gr. F6a (size 2" - 4")
Cast Steel ASTM A216 Gr. WCB + 13Cr (Size 5" - 12")
Body Seat Ring: Carbon Steel A106 Gr. B + HF or A105 + HF
Packing Material: Flexible Graphite
Shell wall thickness and general valve design specification: API600
Pressure-Temperature ratings: ASME B16.34
More specifications: Catalogue attached
Made in china
MODEL. 300SCLS - 600SCLS

___________________________________________

Advantages of KITZ Gate Valves

___________________________________________

Disadvantages of KITZ Gate Valves

___________________________________________

Key Features of KITZ Gate Valves

___________________________________________

Application of KITZ Gate Valves

___________________________________________

Size of KITZ Gate Valves

- Kitz gate valve DN15 (15mm/ 15A) Piping size 21 mm

- Kitz gate Valve DN20 (20mm/ 20A) Piping size 27mm

- Kitz gate Valve DN25 (25mm/ 25A) Piping size 34 mm

- Kitz gate Valve DN32 (32mm/ 32A) Piping size 42  mm

- Kitz gate Valve DN40 (40mm/ 40A) Piping size 49 mm

- Kitz gate Valve DN50 (50mm/ 50A) đường ống size 60 mm

- Kitz gate Valve DN65 (65mm/ 65A) Piping size 76 mm

- Kitz gate Valve DN80 (80mm/80A) Piping size 90 mm

- Kitz gate  Valve DN100 (100mm/100A) Piping size 114 mm

- Kitz gate Valve DN125 (125mm/125A) Piping size 140 mm

- Kitz gate Valve DN150 (150mm/150A) Piping size 168 mm

- Kitz gate Valve DN200 (200mm/200A) Piping size 220 mm

- Kitz gate Valve DN250 (250mm/250A) Piping size 273 mm

___________________________________________

Báo Giá Van Cổng KITZ

___________________________________________

Mua Van Cổng KITZ

- VINDEC là địa chỉ phân phối VAN CỔNG uy tín tại Việt nam có thể làm hài lòng khách hàng với năng lực đội ngũ nhân viên có kỹ thuật trình độ kỹ thuật cao, được đào tạo chuyên nghiệp bài bản của hãng.

- Quý khách hàng có thể tìm kiếm hoặc Download về máy Catalogue sản phẩm Van KITZ của hãng tại Website của chúng tôi với thông số kỹ thuật rõ ràng chính xác nhất của hãng tại: VAN CỔNG KITZ

- Thêm vào đó VINDEC, chúng tôi có Kho Hàng tại Hồ Chí Minh và có Kho Hàng + Xưởng Sản Xuất với diện tích trên 2.000m2 tại Hà Nội.

- VINDEC với năng lực và kinh nghiệm trên 15 năm cùng với đội ngũ kỹ sư giầu chuyên môn, chúng tôi tự đáp ứng được các dự án lớn về hàng Van Công Nghiệp, chúng tôi luôn đồng hành cùng phát triển.
