KITZ - Globe Valves

- Globe valves are named for their appearance. Compared to gate valves, globe valves are designed to open and close more quickly. Their flow characteristics are changed by configuring their discs.

- Fig. A100, C150, BH, CA, JB, 10SJ, 10SJBF, 10SPBOF, 10SPBO, 10FCJ, 125FCJ, 150SPBO, 16SP, 16SPB, 16SPBO, 20SY, 20SYB, 20SYBO, 300SYB, 300SYBO, 150SCJS, 300SCJS, 600SCJS, UCL, UCB, UJB, 200UJ, UAB, 10UPA, 20UPA

_________________________________________________

Structure of KITZ Globe Valves

_________________________________________________

Technical KITZ Globe Valves

- Name products: Cast / ductile iron glove valve Kitz / Stainless steel glove valve Kitz / Forged steel glove valve Kitz, Bronze and Brass glove valve Kitz

- Types of glove valve Kitz: Bellow seal, Gland packing

- Body materilas of Kitz glove valve: Ductile iron (FCD-S) / Stainless steel / Forged steel / Bronze and Brass / Stainless steel

- Connection ends of Kitz glove valve: Threaded ends, Socket weld ends, Butt welding ends, Flanged ends JIS, ANSI...

- Size valves of Kitz glove valve:

+ Diametre nominal : DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400

+ Inch : 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″, 5", 6", 8", 10", 12", 14"

- Pressure range of Kitz glove valve : 10kgf/cm2, 16kgf/cm2, 25kgf/cm2/ 40kgf/cm2/ 60kgf/cm2/ 100kgf/cm2/ 160kgf/cm2/

- Temperature range : 450 độ C

- Operation: Lever, Gear

- Brands and origin of valves : Kitz - Japan

_________________________________________________

Operation of KITZ Globe Valves

_________________________________________________

Types of Globe Valves KITZ

_________________________________________________

• KITZ Bronze Globe Valves

KITZ BRONZE GLOBE VALVE, THREADED ENDS
300psi. Water Oil & Gas
150psi. Saturated Steam
Model. C 150

KITZ BRONZE GLOBE VALVE, THREADED ENDS
150psi. Water Oil & Gas
100psi. Saturated Steam
Model. A 100

KITZ BRONZE GLOBE VALVE, JIS 10K FF FLANGED ENDS
225 psi Water, Oil and Gas
150psi saturated Steam
Model. BH

KITZ BRONZE GLOBE VALVE, ANGLE TYPE, THREADED ENDS
300 psi Water, Oil, Gas
150 psi Saturated Steam
Model. CA

KITZ BRONZE GLOBE VALVE, 10K FF FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
10kgf/cm2 water Oil 120 Deg.C
10kgf/cm2 Saturated Steam
Model. JB

_________________________________________________

• KITZ Cast Iron & Ductile Iron Globe Valves

KITZ DUCTILE IRON GLOBE VALVE, THREADED ENDS.
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
Moel. 10SJ

KITZ DUCTILE IRON GLOBE VALVE, JIS 10K FF FLANGED ENDS.
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
Moel. 10SJBF

KITZ DUCTILE IRON GLOBE VALVE, JIS 10K FF FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
12kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
Moel. 10SPBOF

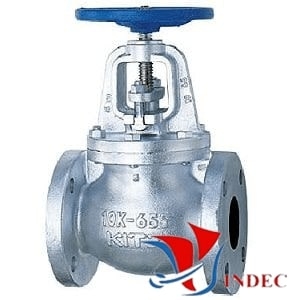

KITZ CAST IRON GLOBE VALVE, JIS 10K FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Air Water Oil 120 Deg.C
7kfg/cm2 Saturated Steam
Moel. 10FCJ

KITZ CAST IRON GLOBE VALVE, ANSI 125 FLANGED ENDS
200psi Water Oil Gas
125 Saturated Steam
Moel. 125FCJ

KITZ DUCTILE IRON GLOBE VALVE, B. B., O. S. & Y., ANSI 150 RF FLANGED ENDS
17.6kgf/cm2 Water, Oil, Gas -5 ~ -38Deg.C
15.1kfg/cm2 Water Oil Gas 149Deg.C
8.8kfg/cm2 Water, Oil, Gas 343 Deg.C
12.0 kgf/cm2 Water, Oil, Gas 260 Deg. C
 FIG. 150SPBO

KITZ DUCTILE IRON GLOBE VALVE-THREADED ENDS
22kgf/cm2 Static water 120 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
16kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Moel. 16SP

KITZ DUCTILE IRON GLOBE VALVE-FLANGED ENDS
22kgf/cm2 Static water 120 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
16kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Moel. 16SPB

KITZ DUCTILE IRON GLOBE VALVE, JIS 16K FF FLANGED ENDS
22kgf/cm2 Static water 120 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
16kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
MODEL. 16SPBO

KITZ DUCTILE IRON GLOBE VALVE, THREADED ENDS
25kgf/cm2 Water Oil Gas/ Steam 220 Deg.C
23kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
MODEL. 20SY

KITZ DUCTILE IRON GLOBE VALVE, 20K RF FLANGED ENDS
28kgf/cm2 Water Oil Gas/ Steam 220 Deg.C
25kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
MODEL. 20SYB

KITZ DUCTILE IRON GLOBE VALVE, 20K RF FLANGED ENDS
28kgf/cm2 Water Oil Gas/ Steam 220 Deg.C
25kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
MODEL. 20SYBO

KITZ DUCTILE IRON GLOBE VALVE, 20K RF FLANGED ENDS
30kgf/cm2 Water Oil Gas/ Steam -5 ÷ -38 Deg.C
26.5kfg/cm2 Water Oil Gas/ Steam 149 Deg.C
20.8kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model: 300SYB

KITZ DUCTILE IRON GLOBE VALVE, 20K RF FLANGED ENDS
30kgf/cm2 Water Oil Gas/ Steam -5 ÷ -38 Deg.C
26.5kfg/cm2 Water Oil Gas/ Steam 149 Deg.C
20.8kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model: 300SYBO

_________________________________________________

• KITZ Stainless Steel Globe Valves

KITZ STAINLESS STEEL GLOBE VALVE-THREADED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
FIG. UD

KITZ STAINLESS STEEL GLOBE VALVE-THREADED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
MODEL. UCL

KITZ STAINLESS STEEL GLOBE VALVE, JIS 10K FLANGED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
MODEL. UCB

KITZ STAINLESS STEEL GLOBE VALVE, JIS 10K FLANGED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
MODEL. UJB

KITZ STAINLESS STEEL GLOBE VALVE-FLANGED ENDS
5kfg/cm2 Water Oil Gas 150 Deg.C
Model. UAB

Model. 200UJ, 10UPA ,  20UPA

_________________________________________________

• KITZ Cast Steel Globe Valves

KITZ STEEL GLOBE VALVE, ANSI 150 RF FLANGED ENDS
Bolted bonnet, O. S. & Y., rising stem
Body: A216 Gr. WCB
Stem: A276 type 403
Disc: Carbon Steel + 13Cr
Pressure-Temperature ratings: ASME B16.34
Made in China
MODEL. 150SCJS

KITZ STEEL GLOBE VALVE, ANSI 300 RF FLANGED ENDS
Bolted bonnet, O. S. & Y., rising stem
Body: A216 Gr. WCB
Stem: A276 type 403
Disc: Carbon Steel + 13Cr
Pressure-Temperature ratings: ASME B16.34
Made in China
MODEL. 300SCJS

KITZ STEEL GLOBE VALVE, ANSI 600 RF FLANGED ENDS
Bolted bonnet, O. S. & Y., rising stem
Body: A216 Gr. WCB
Stem: A276 type 403
Disc: Carbon Steel + 13Cr
Pressure-Temperature ratings: ASME B16.34
MODEL. 600SCJS

_________________________________________________

Advantages of KITZ Globe Valves

___________________________________________

Disadvantages of KITZ Globe Valves

___________________________________________

Key Features of KITZ Globe Valves

_________________________________________________

Application of KITZ Globe Valves

_________________________________________________

Size of KITZ Globe Valves

- Kitz globe valve DN15 (15mm/ 15A) Piping size 21 mm

- Kitz globe valve DN20 (20mm/ 20A) Piping size 27mm

- Kitz globe valve DN25 (25mm/ 25A) Piping size 34 mm

- Kitz globe valve DN32 (32mm/ 32A) Piping size 42  mm

- Kitz globe valve DN40 (40mm/ 40A) Piping size 49 mm

- Kitz globe valve DN50 (50mm/ 50A) đường ống size 60 mm

- Kitz globe valve DN65 (65mm/ 65A) Piping size 76 mm

- Kitz globe valve DN80 (80mm/80A) Piping size 90 mm

- Kitz globe valve DN100 (100mm/100A) Piping size 114 mm

- Kitz globe valve DN125 (125mm/125A) Piping size 140 mm

- Kitz globe valve DN150 (150mm/150A) Piping size 168 mm

- Kitz globe valve DN200 (200mm/200A) Piping size 220 mm

- Kitz globe valve DN250 (250mm/250A) Piping size 273 mm

_________________________________________________
